Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

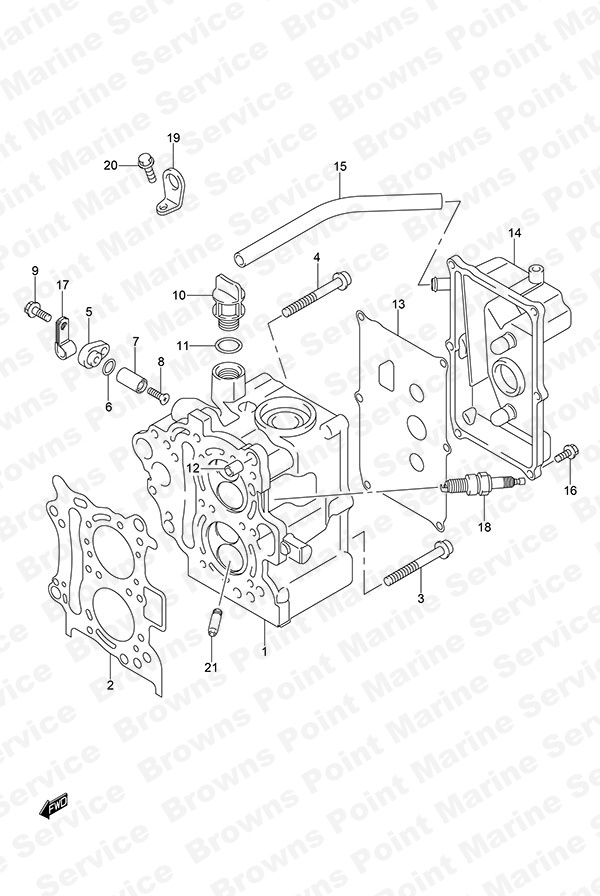

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11110-94J10 Cylinder Head
SKU: 11110-94J10 Weight: 2.000000 Brand: Price: $ 964.19 |
Cylinder Head | 1 | $ 964.19 | ||
| 2 | 11141-94JL0 Cylinder Head Gasket
SKU: 11141-94JL0 Weight: 0.100000 Brand: Price: $ 60.39 |
Cylinder Head Gasket | 1 | $ 60.39 | ||
| 3 | 09116-08110 Bolt (8x65) (NLA)
SKU: 09116-08110 Weight: 0.100000 Brand: Price: $ 4.59 |
Bolt (8x65) (NLA) | 6 | $ 4.59 | ||
| 4 | 09116-08129 Bolt (8x65) (NLA)
SKU: 09116-08129 Weight: 0.100000 Brand: Price: $ 3.36 |
Bolt (8x65) (NLA) | 2 | $ 3.36 | ||
| 5 | 11261-99E00 Protection Anode Cover
SKU: 11261-99E00 Weight: 0.060000 Brand: Price: $ 17.40 |
Protection Anode Cover | 1 | $ 17.40 | ||
| 6 | 09280-10013 O-Ring
SKU: 09280-10013 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 1 | $ 3.76 | ||
| 7 | 55321-99E00 Protection Anode
SKU: 55321-99E00 Weight: 0.060000 Brand: Price: $ 10.90 |
Protection Anode | 1 | $ 10.90 | ||
| 8 | 09126-05010 Protection Anode Screw
SKU: 09126-05010 Weight: 0.060000 Brand: Price: $ 2.08 |
Protection Anode Screw | 1 | $ 2.08 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10 | 11382-93E00 Oil Filler Cap
SKU: 11382-93E00 Weight: 0.125000 Brand: Price: $ 4.51 |
Oil Filler Cap | 1 | $ 4.51 | ||
| 11 | 09280-17003 Oil Filler Cap O-Ring
SKU: 09280-17003 Weight: 0.060000 Brand: Price: $ 1.66 |
Oil Filler Cap O-Ring | 1 | $ 1.66 | ||
| 12 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 13 | 11162-94J10 Cylinder Head Cover Gasket
SKU: 11162-94J10 Weight: 0.060000 Brand: Price: $ 10.68 |
Cylinder Head Cover Gasket | 1 | $ 10.68 | ||
| 14 | 11170-94J00 Cylinder Head Cover
SKU: 11170-94J00 Weight: 2.000000 Brand: Price: $ 118.36 |
Cylinder Head Cover | 1 | $ 118.36 | ||
| 15 | 11196-94J00-320 Hose
SKU: 11196-94J00-320 Weight: 0.250000 Brand: Price: $ 5.90 |
Hose | 1 | $ 5.90 | L:320->205 | |
| 16 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 17 | 09403-14204 Clamp (NLA)
SKU: 09403-14204 Weight: 0.100000 Brand: Price: $ 1.28 |
Clamp (NLA) | 1 | $ 1.28 | ||
| 18 | 09482-00L04 NGK CPR6EA-9 Spark Plug
SKU: 09482-00L04 Weight: 0.187500 Brand: Price: $ 12.03 |
NGK CPR6EA-9 Spark Plug | 2 | $ 12.03 | ||
| 19 | 11291-91B50 Engine Hook
SKU: 11291-91B50 Weight: 0.400000 Brand: Price: $ 9.28 |
Engine Hook | 1 | $ 9.28 | Optional | |
| 20 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | Optional | |
| 21 | 11115-93E00-001 Valve Guide (OS:0.30)
SKU: 11115-93E00-001 Weight: 0.060000 Brand: Price: $ 23.71 |
Valve Guide (OS:0.30) | 4 | $ 23.71 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
