Suzuki DF 6 Parts Listings - 2013
S/N 00602F-310001 to 00602F-31XXXX

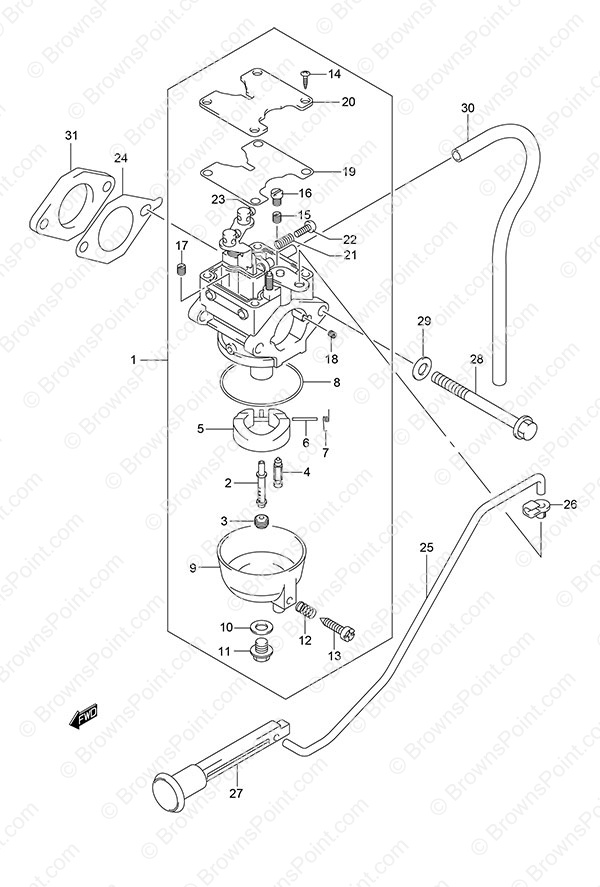

Fig. 8 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-91JS1 Carburetor Assembly
SKU: 13200-91JS1 Weight: 1.000000 Brand: Price: $ 164.80 |
Carburetor Assembly | 1 | $ 164.80 | ||
| 2 | 13236-91J40 Main Nozzle
SKU: 13236-91J40 Weight: 0.100000 Brand: Price: $ 25.12 |
Main Nozzle | 1 | $ 25.12 | ||
| 3-1 | 09491-68006 Main Jet #68
SKU: 09491-68006 Weight: 0.125000 Brand: Price: $ 16.18 |
Main Jet #68 | 1 | $ 16.18 | ||
| 3-2 | 09491-70018 Main Jet #70
SKU: 09491-70018 Weight: 0.060000 Brand: Price: $ 15.42 |
Main Jet #70 | 1 | $ 15.42 | ||
| 3-3 | 09491-66005 Main Jet #66
SKU: 09491-66005 Weight: 0.060000 Brand: Price: $ 15.42 |
Main Jet #66 | 1 | $ 15.42 | ||
| 4 | 13371-91J20 Needle Valve
SKU: 13371-91J20 Weight: 0.250000 Brand: Price: $ 23.41 |
Needle Valve | 1 | $ 23.41 | ||
| 5 | 13250-97J00 Carburetor Float
SKU: 13250-97J00 Weight: 0.125000 Brand: Price: $ 31.27 |
Carburetor Float | 1 | $ 31.27 | ||
| 6 | 13254-97J00 Float Pin
SKU: 13254-97J00 Weight: 0.060000 Brand: Price: $ 3.57 |
Float Pin | 1 | $ 3.57 | ||
| 7 | 13268-97J30 Spring
SKU: 13268-97J30 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring | 1 | $ 3.07 | ||
| 8 | 13251-97J00 Float Chamber Gasket
SKU: 13251-97J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Float Chamber Gasket | 1 | $ 6.78 | ||
| 9 | 13245-97J00 Float Chamber
SKU: 13245-97J00 Weight: 0.125000 Brand: Price: $ 16.86 |
Float Chamber | 1 | $ 16.86 | ||
| 10 | 13249-97J00 Gasket
SKU: 13249-97J00 Weight: 0.060000 Brand: Price: $ 2.59 |
Gasket | 1 | $ 2.59 | ||
| 11 | 13247-97J00 Screw
SKU: 13247-97J00 Weight: 0.100000 Brand: Price: $ 4.14 |
Screw | 1 | $ 4.14 | ||
| 12 | 13268-97J10 Spring
SKU: 13268-97J10 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 13 | 13616-97J00 Screw
SKU: 13616-97J00 Weight: 0.100000 Brand: Price: $ 22.62 |
Screw | 1 | $ 22.62 | ||
| 14 | 13267-97J00 Screw (NLA)
SKU: 13267-97J00 Weight: 0.100000 Brand: Price: $ 1.57 |
Screw (NLA) | 4 | $ 1.57 | ||
| 15-1 | 09492-34004 Pilot Jet #34
SKU: 09492-34004 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #34 | 1 | $ 15.58 | ||
| 15-2 | 09492-36L01 Pilot Jet #36
SKU: 09492-36L01 Weight: 0.060000 Brand: Price: $ 13.26 |
Pilot Jet #36 | 1 | $ 13.26 | ||
| 15-3 | 09492-38L01 Pilot Jet #38
SKU: 09492-38L01 Weight: 0.060000 Brand: Price: $ 10.84 |
Pilot Jet #38 | 1 | $ 10.84 | ||
| 16 | 13267-97J10 Screw
SKU: 13267-97J10 Weight: 0.100000 Brand: Price: $ 4.20 |
Screw | 1 | $ 4.20 | ||
| 17 | 09493-21L01 Main Air Jet #105
SKU: 09493-21L01 Weight: 0.060000 Brand: Price: $ 0.00 |
Main Air Jet #105 | 1 | $ 0.00 | ||
| 18 | 09493-95L01 Slow Air Jet #95
SKU: 09493-95L01 Weight: 0.250000 Brand: Price: $ 0.00 |
Slow Air Jet #95 | 1 | $ 0.00 | ||
| 19 | 13249-97J10 Gasket
SKU: 13249-97J10 Weight: 0.060000 Brand: Price: $ 11.50 |
Gasket | 1 | $ 11.50 | ||
| 20 | 13248-97J00 Plate (NLA)
SKU: 13248-97J00 Weight: 0.100000 Brand: Price: $ 13.48 |
Plate (NLA) | 1 | $ 13.48 | ||
| 21 | 13268-97J20 Spring
SKU: 13268-97J20 Weight: 0.100000 Brand: Price: $ 4.74 |
Spring | 1 | $ 4.74 | ||
| 22 | 13534-97J10 Screw
SKU: 13534-97J10 Weight: 0.100000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 23 | 13267-97J20 Screw (NLA)
SKU: 13267-97J20 Weight: 0.100000 Brand: Price: $ 2.64 |
Screw (NLA) | 2 | $ 2.64 | ||
| 24 | 13125-91J10 Carburetor Gasket
SKU: 13125-91J10 Weight: 0.060000 Brand: Price: $ 2.63 |
Carburetor Gasket | 2 | $ 2.63 | ||
| 25 | 13413-91JL0 Choke Rod
SKU: 13413-91JL0 Weight: 0.250000 Brand: Price: $ 7.28 |
Choke Rod | 1 | $ 7.28 | ||
| 26 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 27 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 28 | 01547-06857 BOLT 6X85
SKU: 01547-06857 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 6X85 | 2 | $ 2.84 | ||
| 29 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 30 | 44421-13ER0 Hose (5x10x600)
SKU: 44421-13ER0 Weight: 0.200000 Brand: Price: $ 10.62 |
Hose (5x10x600) | 1 | $ 10.62 | L:600->230 | |
| 31 | 13124-91JL0 Carburetor Insulator
SKU: 13124-91JL0 Weight: 0.250000 Brand: Price: $ 10.35 |
Carburetor Insulator | 1 | $ 10.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
