Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

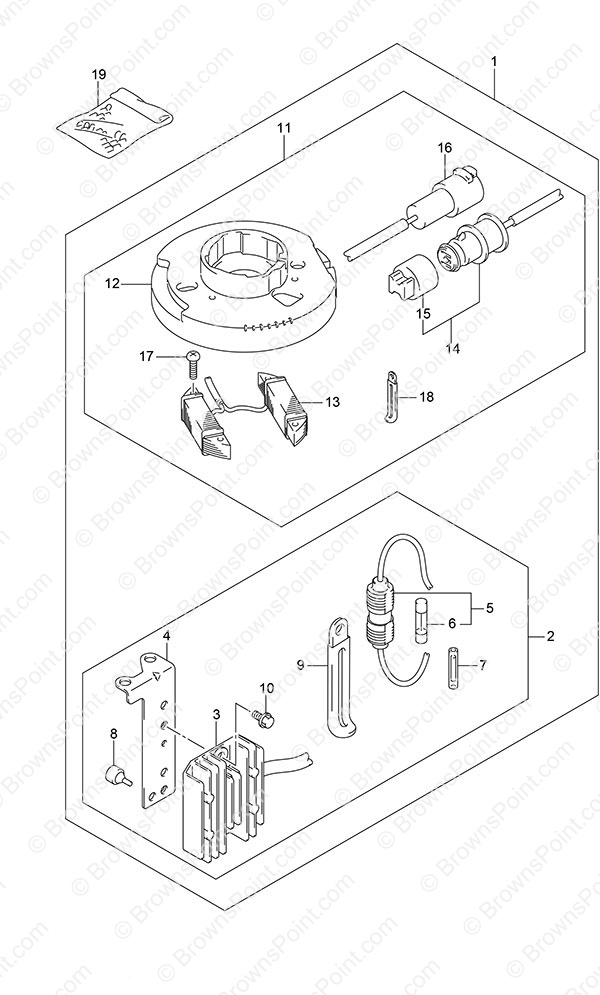

Fig. 29 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-91J12 Battery Charging Kit
SKU: 32000-91J12 Weight: 10.000000 Brand: Price: $ 450.63 |
Battery Charging Kit | 1 | $ 450.63 | ||
| 2 | 32801-91J00 Rectifier Set
SKU: 32801-91J00 Weight: 0.100000 Brand: Price: $ 58.95 |
Rectifier Set | 1 | $ 58.95 | ||
| 3 | 32800-94620 Rectifier & Regulator
SKU: 32800-94620 Weight: 0.500000 Brand: Price: $ 133.77 |
Rectifier & Regulator | 1 | $ 133.77 | ||
| 4 | 32890-91J00 Rectifier Bracket (NLA)
SKU: 32890-91J00 Weight: 0.100000 Brand: Price: $ 11.85 |
Rectifier Bracket (NLA) | 1 | $ 11.85 | ||
| 5 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 6 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 7 | 37132-93700 Wire Connector
SKU: 37132-93700 Weight: 0.100000 Brand: Price: $ 2.22 |
Wire Connector | 2 | $ 2.22 | ||
| 8 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 1 | $ 2.74 | ||
| 9 | 09404-06435 Clamp (L:135)
SKU: 09404-06435 Weight: 0.060000 Brand: Price: $ 3.19 |
Clamp (L:135) | 1 | $ 3.19 | ||
| 10 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10A | 36617-91J10 Harness Bracket
SKU: 36617-91J10 Weight: 0.250000 Brand: Price: $ 0.00 |
Harness Bracket | 1 | $ 0.00 | Not Shown | |
| 11 | 39600-91J12 Receptacle Lighting Set
SKU: 39600-91J12 Weight: 2.000000 Brand: Price: $ 358.07 |
Receptacle Lighting Set | 1 | $ 358.07 | ||
| 12 | 32102-91J30 Flywheel
SKU: 32102-91J30 Weight: 10.000000 Brand: Price: $ 0.00 |
Flywheel | 1 | $ 0.00 | ||
| 13A | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | Not Shown | |
| 13 | 32120-91J10 Lighting Coil
SKU: 32120-91J10 Weight: 0.250000 Brand: Price: $ 118.39 |
Lighting Coil | 1 | $ 118.39 | ||
| 13B | 12625-91J00 Stator Base
SKU: 12625-91J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Stator Base | 1 | $ 0.00 | Not Shown | |
| 13C | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | Not Shown | |
| 14 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 15 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 16 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 17 | 02112-06207 CROSS SCREW,6X2
SKU: 02112-06207 Weight: 0.060000 Brand: Price: $ 1.78 |
CROSS SCREW,6X2 | 4 | $ 1.78 | ||
| 18-1 | 09404-06429 Clamp
SKU: 09404-06429 Weight: 0.100000 Brand: Price: $ 1.83 |
Clamp | 1 | $ 1.83 | ||
| 19 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
