Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

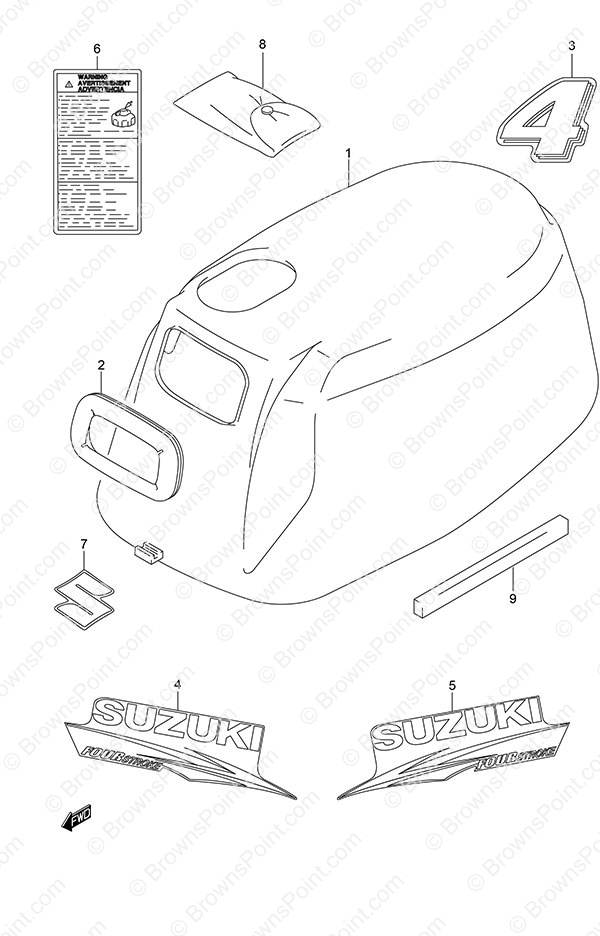

Fig. 24 - Engine Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 61411-91J10-0EP Upper Engine Cover 1 $ 302.71
2 61622-91JL0 Recoil Starter Seal 1 $ 14.10

Not Available

3 61435-91J70 Rear Emblem Mark DF4 1 $ 18.07
4 61443-91J40 Starboard Engine Cover Stripe 1 $ 25.85
5 61453-91J40 Port Engine Cover Stripe 1 $ 25.85
6 61458-97J10 Engine Cover Label 1 $ 13.74
7 68111-99J00 S Emblem 1 $ 5.37
8 09800-01017 Tool Set 1 $ 28.28
9 61416-91J00 GUARD,AIR INTAK 1 $ 2.07

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
