Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

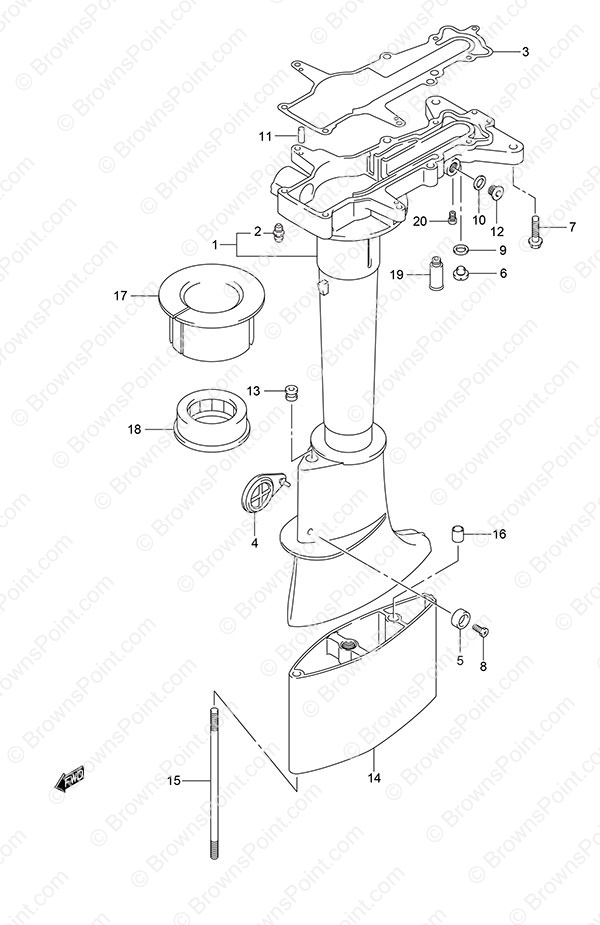

Fig. 20 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52110-91J00-0EP Drive Shaft Housing
SKU: 52110-91J00-0EP Weight: 5.000000 Brand: Price: $ 227.02 |
Drive Shaft Housing | 1 | $ 227.02 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 3 | 52113-91J01 Drive Shaft Housing Gasket
SKU: 52113-91J01 Weight: 0.120000 Brand: Price: $ 31.89 |
Drive Shaft Housing Gasket | 1 | $ 31.89 | ||
| 4 | 52115-98600 Clutch Adjust Hole Cover
SKU: 52115-98600 Weight: 0.060000 Brand: Price: $ 7.90 |
Clutch Adjust Hole Cover | 1 | $ 7.90 | ||
| 5 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 6 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 7 | 09116-06189 Replaced by 09116-06238
SKU: 09116-06189 Weight: 0.060000 Brand: Price: $ 1.86 |
Replaced by 09116-06238 | 9 | $ 1.86 | ||
| 8 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 9 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 10 | 09168-12017 Gasket (12x17x1)
SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 1 | $ 1.97 | ||
| 11 | 09202-06015 Knock Pin
SKU: 09202-06015 Weight: 0.125000 Brand: Price: $ 2.14 |
Knock Pin | 2 | $ 2.14 | ||
| 12 | 09248-12007 Oil Drain Plug
SKU: 09248-12007 Weight: 0.060000 Brand: Price: $ 6.47 |
Oil Drain Plug | 1 | $ 6.47 | ||
| 13 | 09320-04010 Bushing
SKU: 09320-04010 Weight: 0.100000 Brand: Price: $ 1.99 |
Bushing | 1 | $ 1.99 | ||
| 17 | 54132-91J10 Upper Rubber Mount
SKU: 54132-91J10 Weight: 0.250000 Brand: Price: $ 47.49 |
Upper Rubber Mount | 1 | $ 47.49 | ||
| 18 | 54162-91J00 Lower Rubber Mount
SKU: 54162-91J00 Weight: 0.250000 Brand: Price: $ 27.29 |
Lower Rubber Mount | 1 | $ 27.29 | ||
| 19 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | Optional | |
| 20 | 52117-92D00 Water Inspection Tube
SKU: 52117-92D00 Weight: 0.060000 Brand: Price: $ 3.13 |
Water Inspection Tube | 1 | $ 3.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
