Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

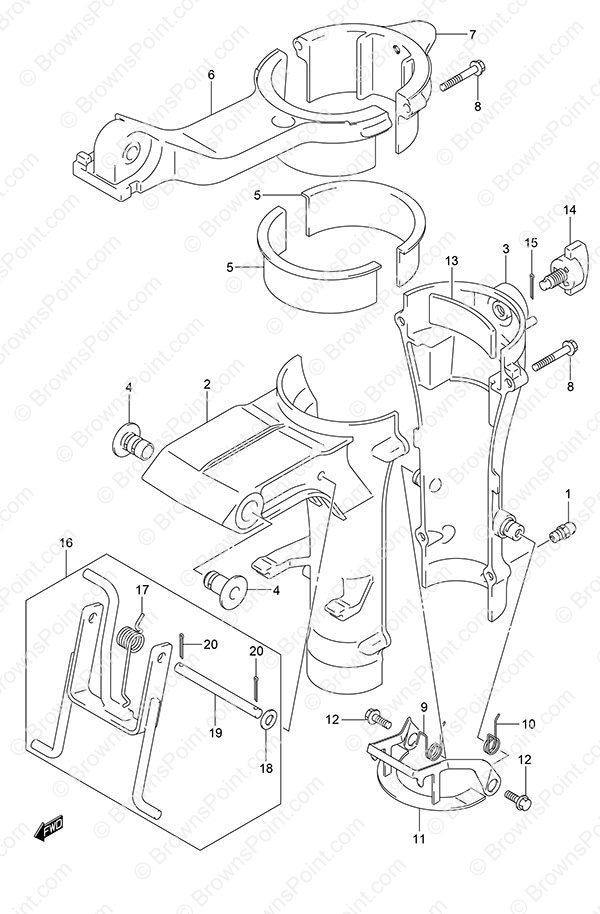

Fig. 19 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 2 | 43111-91J20-0EP Swivel Bracket
SKU: 43111-91J20-0EP Weight: 5.000000 Brand: Price: $ 250.33 |
Swivel Bracket | 1 | $ 250.33 | ||
| 3 | 43121-91J31-0EP Swivel Bracket Cover
SKU: 43121-91J31-0EP Weight: 0.100000 Brand: Price: $ 207.78 |
Swivel Bracket Cover | 1 | $ 207.78 | ||
| 4 | 43211-91J00 Clamp Shaft Swivel Bushing
SKU: 43211-91J00 Weight: 0.100000 Brand: Price: $ 9.18 |
Clamp Shaft Swivel Bushing | 2 | $ 9.18 | ||
| 5 | 43711-91J01 Upper Steering Bushing
SKU: 43711-91J01 Weight: 0.250000 Brand: Price: $ 17.70 |
Upper Steering Bushing | 2 | $ 17.70 | ||
| 6 | 43751-91J20-0EP Steering Bracket
SKU: 43751-91J20-0EP Weight: 0.100000 Brand: Price: $ 224.11 |
Steering Bracket | 1 | $ 224.11 | ||
| 7 | 43752-91J20-0EP Steering Bracket Cover
SKU: 43752-91J20-0EP Weight: 0.250000 Brand: Price: $ 28.37 |
Steering Bracket Cover | 1 | $ 28.37 | ||
| 8 | 09116-06099 Bolt (6x35)
SKU: 09116-06099 Weight: 0.060000 Brand: Price: $ 2.36 |
Bolt (6x35) | 6 | $ 2.36 | ||
| 9 | 45211-98602 Reverse Lock Arm Spring
SKU: 45211-98602 Weight: 0.060000 Brand: Price: $ 3.06 |
Reverse Lock Arm Spring | 1 | $ 3.06 | Starboard | |
| 10 | 45212-98602 Reverse Lock Arm Spring
SKU: 45212-98602 Weight: 0.060000 Brand: Price: $ 3.68 |
Reverse Lock Arm Spring | 1 | $ 3.68 | Port | |
| 1 | 45230-91JL0 Reverse Lock Arm
SKU: 45230-91JL0 Weight: 0.125000 Brand: Price: $ 22.74 |
Reverse Lock Arm | 1 | $ 22.74 | ||
| 12 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 13 | 43411-91J10 Steering Adjuster
SKU: 43411-91J10 Weight: 0.250000 Brand: Price: $ 13.69 |
Steering Adjuster | 1 | $ 13.69 | ||
| 14 | 43410-91J20 Steering Adjuster Knob
SKU: 43410-91J20 Weight: 0.250000 Brand: Price: $ 23.44 |
Steering Adjuster Knob | 1 | $ 23.44 | ||
| 15 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 16 | 45700-91JL0 Shallow Water Drive Assy
SKU: 45700-91JL0 Weight: 0.960000 Brand: Price: $ 66.64 |
Shallow Water Drive Assy | 1 | $ 66.64 | ||
| 17 | 45722-91J00 Shallow Water Drive Spring
SKU: 45722-91J00 Weight: 0.100000 Brand: Price: $ 6.56 |
Shallow Water Drive Spring | 1 | $ 6.56 | ||
| 18 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 19 | 09200-08045 Shallow Water Drive Shaft (NLA)
SKU: 09200-08045 Weight: 0.100000 Brand: Price: $ 4.70 |
Shallow Water Drive Shaft (NLA) | 1 | $ 4.70 | ||
| 20 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
