Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

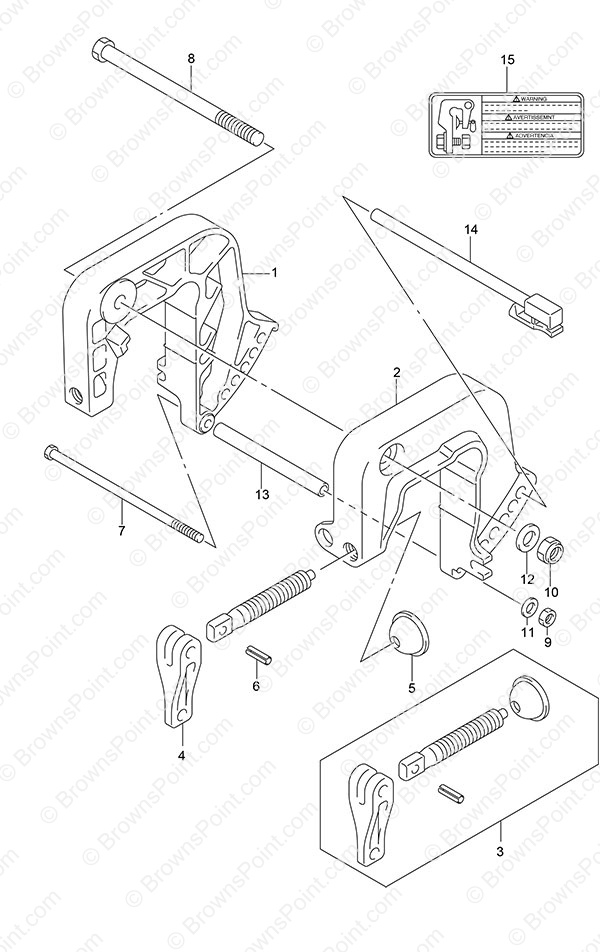

Fig. 18 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-91J20-0EP Starboard Clamp Bracket
SKU: 41111-91J20-0EP Weight: 5.000000 Brand: Price: $ 192.62 |
Starboard Clamp Bracket | 1 | $ 192.62 | ||
| 2 | 41121-91J20-0EP Port Clamp Bracket
SKU: 41121-91J20-0EP Weight: 5.000000 Brand: Price: $ 192.62 |
Port Clamp Bracket | 1 | $ 192.62 | ||
| 3 | 41210-986L1 Clamp Screw Assembly
SKU: 41210-986L1 Weight: 0.260000 Brand: Price: $ 33.75 |
Clamp Screw Assembly | 1 | $ 33.75 | Optional | |
| 4 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 5 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 6 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 7 | 09100-06177 Bolt (6x140)
SKU: 09100-06177 Weight: 0.100000 Brand: Price: $ 5.54 |
Bolt (6x140) | 1 | $ 5.54 | ||
| 8 | 09100-10321 Bolt (10x150) (NLA)
SKU: 09100-10321 Weight: 0.250000 Brand: Price: $ 12.82 |
Bolt (10x150) (NLA) | 1 | $ 12.82 | ||
| 9 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 10 | 09159-10L07 Nut
SKU: 09159-10L07 Weight: 0.060000 Brand: Price: $ 6.25 |
Nut | 1 | $ 6.25 | ||
| 11 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 12 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 13 | 09180-06357 Spacer (6.5x10.5x104)
SKU: 09180-06357 Weight: 0.250000 Brand: Price: $ 20.76 |
Spacer (6.5x10.5x104) | 1 | $ 20.76 | ||
| 14 | 45420-92DL0 Tilt Lock Pin
SKU: 45420-92DL0 Weight: 0.250000 Brand: Price: $ 30.79 |
Tilt Lock Pin | 1 | $ 30.79 | ||
| 15 | 69911-91J20 Clamp Bracket Mark (NLA)
SKU: 69911-91J20 Weight: 0.060000 Brand: Price: $ 5.01 |
Clamp Bracket Mark (NLA) | 1 | $ 5.01 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
