Suzuki DF 4 Parts Listings - 2013
S/N 00402F-310001 to 00402F-31XXXX

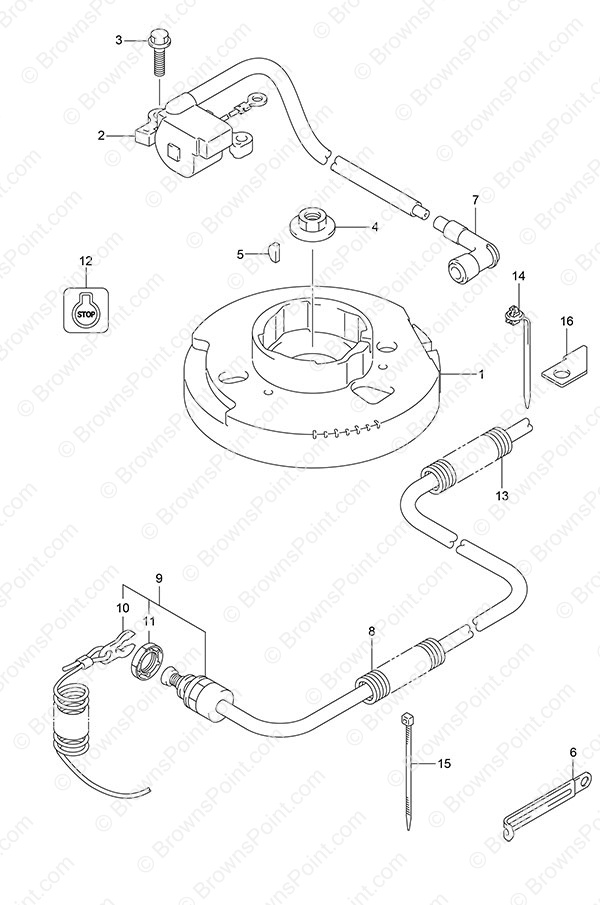

Fig. 17 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-91J20 Flywheel
SKU: 32102-91J20 Weight: 10.000000 Brand: Price: $ 208.64 |
Flywheel | 1 | $ 208.64 | ||
| 2 | 33410-91J50 Ignition Coil Assembly
SKU: 33410-91J50 Weight: 1.000000 Brand: Price: $ 128.03 |
Ignition Coil Assembly | 1 | $ 128.03 | ||
| 3 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 4 | 09159-12059 Nut (NLA)
SKU: 09159-12059 Weight: 0.100000 Brand: Price: $ 3.14 |
Nut (NLA) | 1 | $ 3.14 | ||
| 5 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 6 | 29404-93J21 CLAMP
SKU: 29404-93J21 Weight: 0.000000 Brand: Price: $ 2.16 |
CLAMP | 1 | $ 2.16 | ||
| 7 | 33500-07H00 Spark Plug Cap
SKU: 33500-07H00 Weight: 0.080000 Brand: Price: $ 44.59 |
Spark Plug Cap | 1 | $ 44.59 | ||
| 8 | 33833-91J20 Switch Lead Tube (L:150)
SKU: 33833-91J20 Weight: 0.250000 Brand: Price: $ 0.00 |
Switch Lead Tube (L:150) | 1 | $ 0.00 | ||
| 9 | 37830-91J21 Emergency Switch Assembly
SKU: 37830-91J21 Weight: 0.280000 Brand: Price: $ 53.10 |
Emergency Switch Assembly | 1 | $ 53.10 | ||
| 10 | 37823-97J00 Stop Switch Lanyard
SKU: 37823-97J00 Weight: 0.080000 Brand: Price: $ 28.07 |
Stop Switch Lanyard | 1 | $ 28.07 | ||
| 11 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 12 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | ||
| 13 | 33833-91J10 Switch Lead Tube (L:400)
SKU: 33833-91J10 Weight: 0.250000 Brand: Price: $ 0.00 |
Switch Lead Tube (L:400) | 1 | $ 0.00 | ||
| 14 | 36991-91J00 Clamp
SKU: 36991-91J00 Weight: 0.250000 Brand: Price: $ 1.37 |
Clamp | 1 | $ 1.37 | ||
| 15 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 16 | 36617-91J00 Switch Lead Bracket (NLA)
SKU: 36617-91J00 Weight: 0.250000 Brand: Price: $ 2.58 |
Switch Lead Bracket (NLA) | 1 | $ 2.58 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
