Suzuki DF 115A Parts Listings
S/N 11503F-310001 to 11503F-31XXXX
S/N 11503Z-310001 to 11503Z-31XXXX

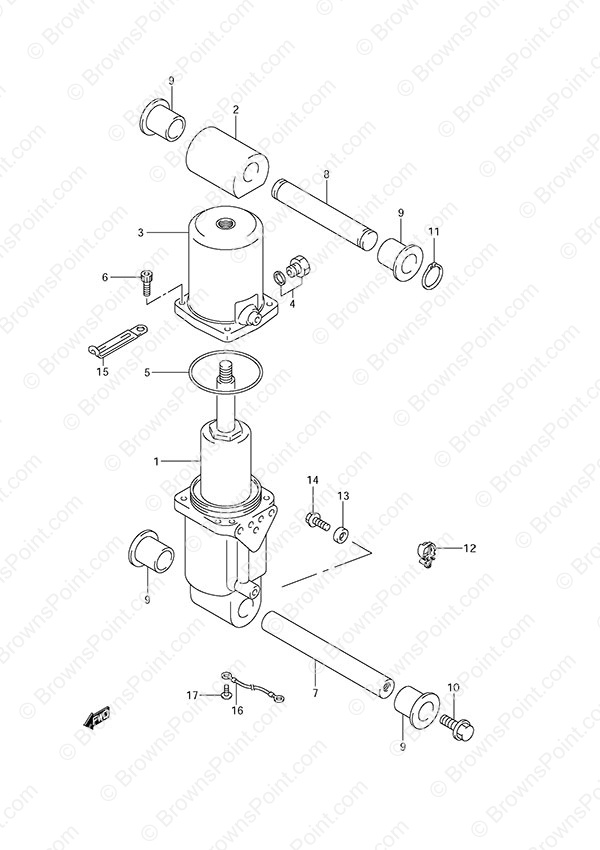

Fig. 49 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48400-90J03 PTT Manifold Assembly
SKU: 48400-90J03 Weight: 9.000000 Brand: Price: $ 714.60 |
PTT Manifold Assembly | 1 | $ 714.60 | ||
| 2 | 48611-90J00 Metal Joint
SKU: 48611-90J00 Weight: 0.100000 Brand: Price: $ 221.57 |
Metal Joint | 1 | $ 221.57 | ||
| 3 | 48571-87L01 Reservoir Tank
SKU: 48571-87L01 Weight: 0.820000 Brand: Price: $ 203.00 |
Reservoir Tank | 1 | $ 203.00 | ||
| 4 | 48572-87J10 Plug
SKU: 48572-87J10 Weight: 0.060000 Brand: Price: $ 20.90 |
Plug | 1 | $ 20.90 | ||
| 5 | 48557-90J00 O-Ring
SKU: 48557-90J00 Weight: 0.060000 Brand: Price: $ 22.40 |
O-Ring | 1 | $ 22.40 | ||
| 6 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 7 | 48121-90J00 Tilt Cylinder Lower Shaft
SKU: 48121-90J00 Weight: 0.950000 Brand: Price: $ 81.27 |
Tilt Cylinder Lower Shaft | 1 | $ 81.27 | ||
| 8 | 48321-90J00 Tilt Cylinder Upper Shaft
SKU: 48321-90J00 Weight: 0.800000 Brand: Price: $ 52.15 |
Tilt Cylinder Upper Shaft | 1 | $ 52.15 | ||
| 9 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 4 | $ 5.18 | ||
| 10 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 11 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 | ||
| 12 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
| 13 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 14 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 15 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 16 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | PTT to Anode | |
| 17 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
