Suzuki DF 115A Parts Listings
S/N 11503F-310001 to 11503F-31XXXX
S/N 11503Z-310001 to 11503Z-31XXXX

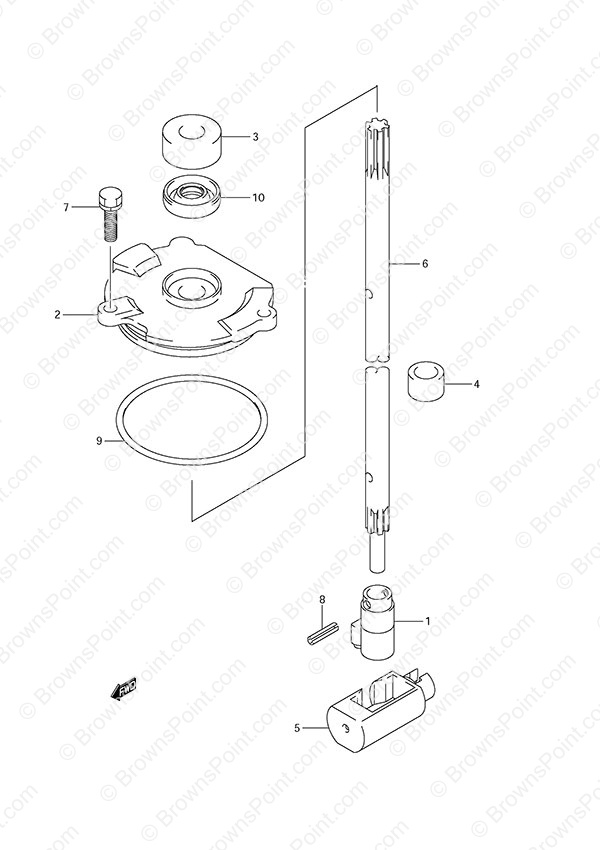

Fig. 25 - Shift Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 25131-92J01 YOKE,SHIFTER
SKU: 25131-92J01 Weight: 0.000000 Brand: Price: $ 42.10 |
YOKE,SHIFTER | 1 | $ 42.10 | ||
| 2 | 25141-92J01 Shift Rod Guide Housing
SKU: 25141-92J01 Weight: 0.140000 Brand: Price: $ 39.01 |
Shift Rod Guide Housing | 1 | $ 39.01 | ||
| 3 | 25222-92J01 Shift Guide Cover Seal
SKU: 25222-92J01 Weight: 0.060000 Brand: Price: $ 2.52 |
Shift Guide Cover Seal | 1 | $ 2.52 | ||
| 4 | 25232-90J00 Gear Case Magnet
SKU: 25232-90J00 Weight: 0.100000 Brand: Price: $ 6.49 |
Gear Case Magnet | 1 | $ 6.49 | ||
| 5 | 25321-92J10 Horizontal Shift Slider
SKU: 25321-92J10 Weight: 0.250000 Brand: Price: $ 102.53 |
Horizontal Shift Slider | 1 | $ 102.53 | ||
| 6-1 | 25111-92J00 Shift Rod (L)
SKU: 25111-92J00 Weight: 1.000000 Brand: Price: $ 105.06 |
Shift Rod (L) | 1 | $ 105.06 | w/Transom (L) | |
| 6-2 | 25111-92J10 Shift Rod (X)
SKU: 25111-92J10 Weight: 0.500000 Brand: Price: $ 106.14 |
Shift Rod (X) | 1 | $ 106.14 | Type: X | |
| 7 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 8 | 09205-04014 Pin
SKU: 09205-04014 Weight: 0.060000 Brand: Price: $ 1.65 |
Pin | 2 | $ 1.65 | ||
| 9 | 09280-69001 O-Ring
SKU: 09280-69001 Weight: 0.060000 Brand: Price: $ 3.73 |
O-Ring | 1 | $ 3.73 | ||
| 10 | 09283-10011 Oil Seal (10x22x8)
SKU: 09283-10011 Weight: 0.060000 Brand: Price: $ 5.87 |
Oil Seal (10x22x8) | 1 | $ 5.87 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
