Suzuki DF 115A Parts Listings
S/N 11503F-310001 to 11503F-31XXXX
S/N 11503Z-310001 to 11503Z-31XXXX

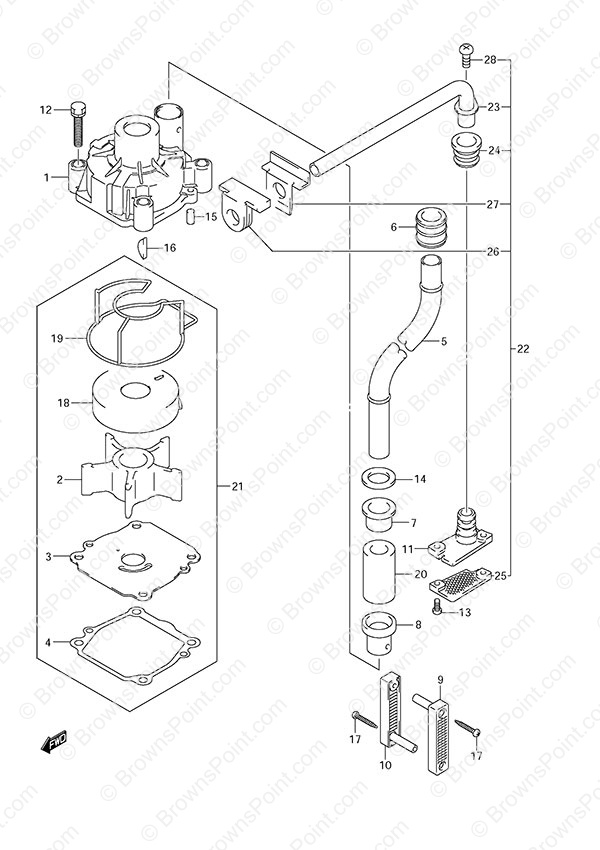

Fig. 15 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-92J00 Water Pump Case
SKU: 17410-92J00 Weight: 0.360000 Brand: Price: $ 85.09 |
Water Pump Case | 1 | $ 85.09 | ||
| 2 | 17461-90J01 Water Pump Impeller
SKU: 17461-90J01 Weight: 0.160000 Brand: Price: $ 67.58 |
Water Pump Impeller | 1 | $ 67.58 | ||
| 3 | 17471-92J00 Water Pump Plate
SKU: 17471-92J00 Weight: 0.200000 Brand: Price: $ 11.86 |
Water Pump Plate | 1 | $ 11.86 | ||
| 4 | 17472-87E10 Water Pump Plate Gasket
SKU: 17472-87E10 Weight: 0.060000 Brand: Price: $ 6.07 |
Water Pump Plate Gasket | 1 | $ 6.07 | ||
| 5-1 | 17561-90J03 Water Tube (L)
SKU: 17561-90J03 Weight: 0.220000 Brand: Price: $ 35.28 |
Water Tube (L) | 1 | $ 35.28 | w/Transom (L) | |
| 5-2 | 17561-90J13 Water Tube (X)
SKU: 17561-90J13 Weight: 0.340000 Brand: Price: $ 41.62 |
Water Tube (X) | 1 | $ 41.62 | Type: X | |
| 6 | 17562-90J01 Water Tube Bushing
SKU: 17562-90J01 Weight: 0.060000 Brand: Price: $ 3.33 |
Water Tube Bushing | 1 | $ 3.33 | Upper | |
| 7 | 17563-87D01 Water Tube Bushing
SKU: 17563-87D01 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Tube Bushing | 1 | $ 7.01 | Lower | |
| 8 | 17564-87D00 Water Pump Case Bushing
SKU: 17564-87D00 Weight: 0.060000 Brand: Price: $ 11.80 |
Water Pump Case Bushing | 1 | $ 11.80 | ||
| 9 | 17631-90J00 Port Side Water Filter
SKU: 17631-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | ||
| 10 | 17632-90J00 Starboard Side Water Filter
SKU: 17632-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | ||
| 11 | 17635-90J00 Sub Water Tube Plug
SKU: 17635-90J00 Weight: 0.060000 Brand: Price: $ 5.43 |
Sub Water Tube Plug | 1 | $ 5.43 | ||
| 12 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 13 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 14 | 09161-16008 Washer (15.8x26x1)
SKU: 09161-16008 Weight: 0.060000 Brand: Price: $ 2.32 |
Washer (15.8x26x1) | 1 | $ 2.32 | ||
| 15 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 16 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
| 17 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 2 | $ 2.21 | ||
| 18 | 17413-92J01 Water Pump Case Sleeve
SKU: 17413-92J01 Weight: 0.200000 Brand: Price: $ 34.88 |
Water Pump Case Sleeve | 1 | $ 34.88 | ||
| 19 | 17416-92J11 Water Pump Case Seal
SKU: 17416-92J11 Weight: 0.060000 Brand: Price: $ 11.74 |
Water Pump Case Seal | 1 | $ 11.74 | ||
| 20 | 17612-90J01 Water Tube Spacer (X)
SKU: 17612-90J01 Weight: 0.060000 Brand: Price: $ 3.93 |
Water Tube Spacer (X) | 1 | $ 3.93 | Type: X | |
| 21 | 17400-92J23 Water Pump Repair Kit DF100/DF115/DF140
SKU: 17400-92J23 Weight: 1.000000 Brand: Price: $ 75.78 |
Water Pump Repair Kit DF100/DF115/DF140 | 1 | $ 75.78 | Optional | |
| 22 | 17500-90J11 KIT,WATER SUB T
SKU: 17500-90J11 Weight: 0.000000 Brand: Price: $ 81.25 |
KIT,WATER SUB T | 1 | $ 81.25 | Optional | |
| 23 | 17520-90J00 Water Sub Tube
SKU: 17520-90J00 Weight: 0.250000 Brand: Price: $ 53.69 |
Water Sub Tube | 1 | $ 53.69 | ||
| 24 | 17563-87D01 Water Tube Bushing
SKU: 17563-87D01 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Tube Bushing | 1 | $ 7.01 | ||
| 25 | 17635-87E00 Sub Water Filter
SKU: 17635-87E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Sub Water Filter | 1 | $ 5.02 | ||
| 26 | 55332-87D01 Exhaust Seal Rubber
SKU: 55332-87D01 Weight: 0.060000 Brand: Price: $ 7.95 |
Exhaust Seal Rubber | 1 | $ 7.95 | ||
| 27 | 55333-87D02 Exhuast Seal Plate (NLA)
SKU: 55333-87D02 Weight: 0.080000 Brand: Price: $ 7.05 |
Exhuast Seal Plate (NLA) | 1 | $ 7.05 | ||
| 28 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
