Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

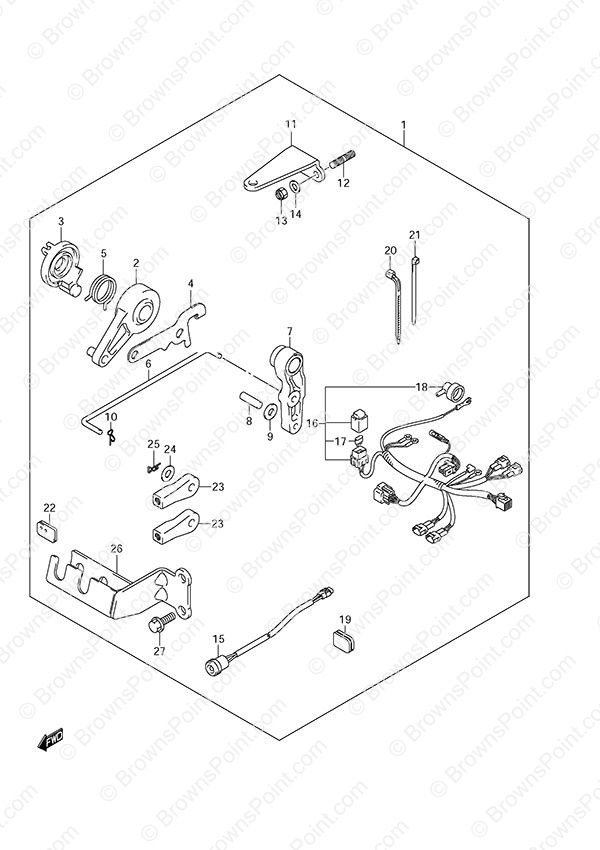

Fig. 38 - Opt: Remote Control Parts
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-99J02 PARTS ASSY REMO
SKU: 67130-99J02 Weight: 0.000000 Brand: Price: $ 440.41 |
PARTS ASSY REMO | 1 | $ 440.41 | ||
| 2 | 19120-99J11 Throttle Control Lever
SKU: 19120-99J11 Weight: 0.250000 Brand: Price: $ 7.08 |
Throttle Control Lever | 1 | $ 7.08 | ||
| 3 | 19122-99J00 Interlink Throttle Lever No 2
SKU: 19122-99J00 Weight: 0.250000 Brand: Price: $ 11.50 |
Interlink Throttle Lever No 2 | 1 | $ 11.50 | ||
| 4 | 19184-99J10 Throttle Link Plate
SKU: 19184-99J10 Weight: 0.250000 Brand: Price: $ 16.01 |
Throttle Link Plate | 1 | $ 16.01 | ||
| 5 | 19185-99J00 Throttle Lever Spring
SKU: 19185-99J00 Weight: 0.250000 Brand: Price: $ 6.71 |
Throttle Lever Spring | 1 | $ 6.71 | ||
| 6 | 21241-99J00 Clutch Lever Link
SKU: 21241-99J00 Weight: 0.250000 Brand: Price: $ 15.02 |
Clutch Lever Link | 1 | $ 15.02 | ||
| 7 | 23210-99J00 Clutch Control Lever
SKU: 23210-99J00 Weight: 0.250000 Brand: Price: $ 32.59 |
Clutch Control Lever | 1 | $ 32.59 | ||
| 8 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.76 |
Cotter Pin | 1 | $ 1.76 | ||
| 9 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (5.5x10x0.8) | 2 | $ 1.76 | ||
| 10 | 09385-04003 Snap Pin
SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.55 |
Snap Pin | 1 | $ 2.55 | ||
| 11 | 43755-99J01 ATTACHMENT,STEE
SKU: 43755-99J01 Weight: 0.000000 Brand: Price: $ 108.81 |
ATTACHMENT,STEE | 1 | $ 108.81 | ||
| 12 | 09108-08286 Stud Bolt
SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 15.21 |
Stud Bolt | 2 | $ 15.21 | ||
| 13 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.39 |
Nut | 2 | $ 5.39 | ||
| 14 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.72 |
Washer (8.5x16x1.2) | 2 | $ 1.72 | ||
| 15 | 36360-99J10 Oil Pressure Indicator
SKU: 36360-99J10 Weight: 0.250000 Brand: Price: $ 41.41 |
Oil Pressure Indicator | 1 | $ 41.41 | ||
| 16 | 36610-99J20 Wiring Harness Assembly (NLA)
SKU: 36610-99J20 Weight: 5.000000 Brand: Price: $ 226.07 |
Wiring Harness Assembly (NLA) | 1 | $ 226.07 | ||
| 17 | 09481-20501 20 Amp Fuse
SKU: 09481-20501 Weight: 0.100000 Brand: Price: $ 1.96 |
20 Amp Fuse | 1 | $ 1.96 | ||
| 18 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.75 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.75 | ||
| 19 | 36656-99J10 Cable Grommet
SKU: 36656-99J10 Weight: 0.250000 Brand: Price: $ 10.29 |
Cable Grommet | 1 | $ 10.29 | ||
| 20 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.38 |
Clamp (L:125) | 1 | $ 2.38 | ||
| 21 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 1 | $ 3.25 | ||
| 22 | 61124-99J10 Remocon Cable Grommet
SKU: 61124-99J10 Weight: 0.250000 Brand: Price: $ 54.12 |
Remocon Cable Grommet | 1 | $ 54.12 | ||
| 23 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 8.01 |
Cable Connector | 2 | $ 8.01 | ||
| 24 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (7x12x1.0) | 2 | $ 1.76 | ||
| 25 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 2.02 |
Clip | 2 | $ 2.02 | ||
| 26 | 67340-99J00 Remocon Cable Holder
SKU: 67340-99J00 Weight: 0.220000 Brand: Price: $ 57.39 |
Remocon Cable Holder | 1 | $ 57.39 | ||
| 27 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
