Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

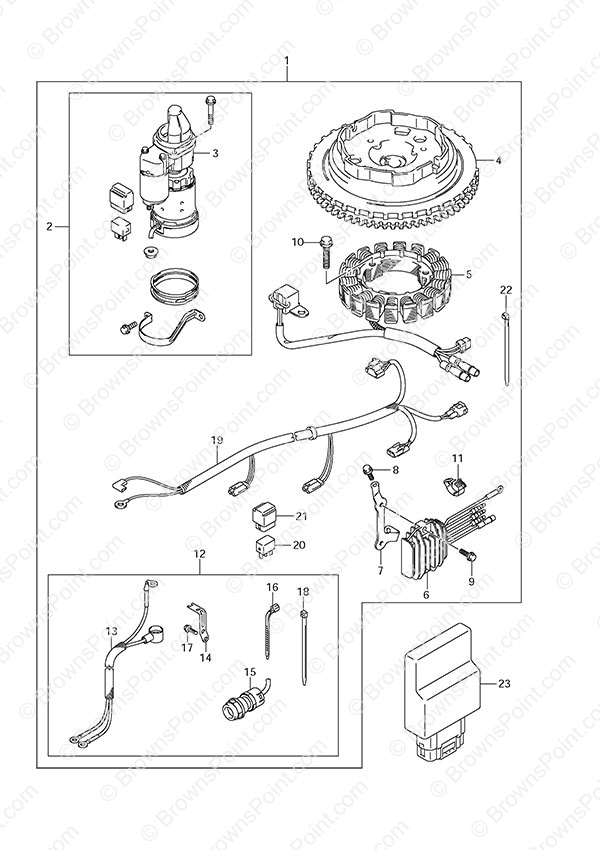

Fig. 36 - Opt: Starting Motor Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31000-89L00 Electric Starter Set (NLA)
SKU: 31000-89L00 Weight: 5.000000 Brand: Price: $ 1,104.70 |
Electric Starter Set (NLA) | 1 | $ 1,104.70 | ||
| 2 | 31101-89L00 Starting Motor Set (NLA)
SKU: 31101-89L00 Weight: 5.000000 Brand: Price: $ 873.28 |
Starting Motor Set (NLA) | 1 | $ 873.28 | ||
| 3 | 31100-94J22 Starter Motor Assembly
SKU: 31100-94J22 Weight: 6.540000 Brand: Price: $ 864.04 |
Starter Motor Assembly | 1 | $ 864.04 | ||
| 4 | 32102-89L00 Flywheel
SKU: 32102-89L00 Weight: 5.000000 Brand: Price: $ 481.95 |
Flywheel | 1 | $ 481.95 | ||
| 5 | 32120-89L00 Stator & Pulser Coil
SKU: 32120-89L00 Weight: 2.000000 Brand: Price: $ 331.63 |
Stator & Pulser Coil | 1 | $ 331.63 | ||
| 6 | 32800-89L01 Rectifier/Regulator Assembly
SKU: 32800-89L01 Weight: 0.500000 Brand: Price: $ 204.93 |
Rectifier/Regulator Assembly | 1 | $ 204.93 | ||
| 7 | 32815-89L00 Rectifier Bracket
SKU: 32815-89L00 Weight: 0.250000 Brand: Price: $ 19.48 |
Rectifier Bracket | 1 | $ 19.48 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 01547-0625A BOLT
SKU: 01547-0625A Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT | 3 | $ 2.04 | ||
| 11 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 1 | $ 2.95 | ||
| 12 | 33800-89L00 Starter Cable Set
SKU: 33800-89L00 Weight: 2.000000 Brand: Price: $ 165.94 |
Starter Cable Set | 1 | $ 165.94 | ||
| 13 | 33810-89L10 Starter Cable
SKU: 33810-89L10 Weight: 2.000000 Brand: Price: $ 59.57 |
Starter Cable | 1 | $ 59.57 | ||
| 14 | 36617-89L10 Harness Bracket (NLA)
SKU: 36617-89L10 Weight: 0.250000 Brand: Price: $ 5.23 |
Harness Bracket (NLA) | 1 | $ 5.23 | ||
| 15 | 37161-89L02 Starter Motor Switch Assembly
SKU: 37161-89L02 Weight: 0.250000 Brand: Price: $ 27.20 |
Starter Motor Switch Assembly | 1 | $ 27.20 | ||
| 16 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 17 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 2 | $ 1.66 | ||
| 18 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 19 | 36610-89L60 Wiring Harness Assembly
SKU: 36610-89L60 Weight: 2.000000 Brand: Price: $ 292.09 |
Wiring Harness Assembly | 1 | $ 292.09 | ||
| 20 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 21 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 22 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 11 | $ 3.09 | ||
| 23 | 33930-89L20 Engine Control Unit
SKU: 33930-89L20 Weight: 1.000000 Brand: Price: $ 487.52 |
Engine Control Unit | 1 | $ 487.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
