Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

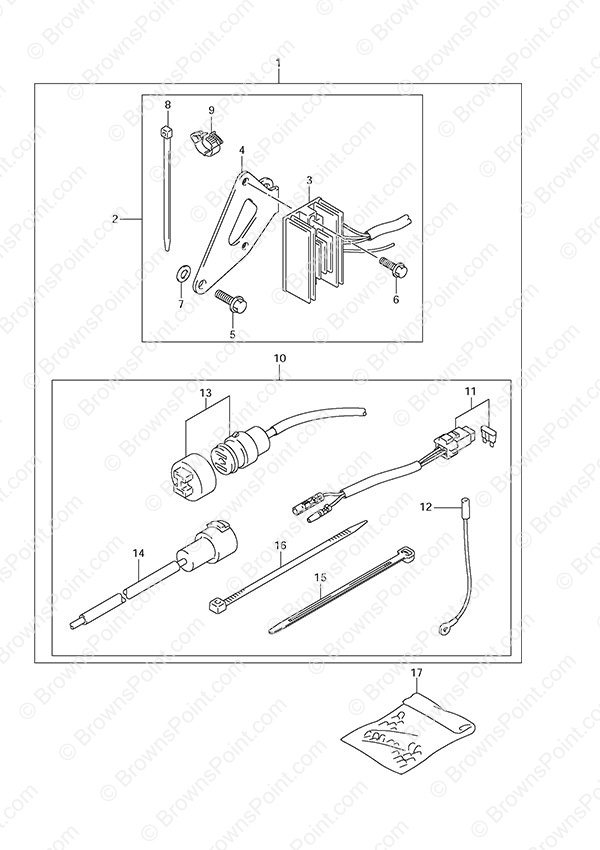

Fig. 34 - Opt: Electrical Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-89L01 Replaced by 32000-89L03
SKU: 32000-89L01 Weight: 5.000000 Brand: Price: $ 139.47 |
Replaced by 32000-89L03 | 1 | $ 139.47 | ||
| 2 | 32801-89L00 Rectifier/Regulator Set
SKU: 32801-89L00 Weight: 1.000000 Brand: Price: $ 176.13 |
Rectifier/Regulator Set | 1 | $ 176.13 | ||
| 3 | 32800-94J11 Rectifier/Regulator Assembly
SKU: 32800-94J11 Weight: 0.320000 Brand: Price: $ 217.82 |
Rectifier/Regulator Assembly | 1 | $ 217.82 | ||
| 4 | 32815-89L10 Rectifier Bracket
SKU: 32815-89L10 Weight: 0.250000 Brand: Price: $ 37.28 |
Rectifier Bracket | 1 | $ 37.28 | ||
| 5 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 6 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 09160-08171 Washer (8.5x16x3)
SKU: 09160-08171 Weight: 0.250000 Brand: Price: $ 0.00 |
Washer (8.5x16x3) | 1 | $ 0.00 | ||
| 8 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 9 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 1 | $ 2.95 | ||
| 10 | 39600-89L00 Receptacle Set
SKU: 39600-89L00 Weight: 0.500000 Brand: Price: $ 85.72 |
Receptacle Set | 1 | $ 85.72 | ||
| 11 | 36740-94J00 Fuse Case Assembly (NLA)
SKU: 36740-94J00 Weight: 0.100000 Brand: Price: $ 36.42 |
Fuse Case Assembly (NLA) | 1 | $ 36.42 | ||
| 12 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 13 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 14 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 15 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 16 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 17 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
