Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

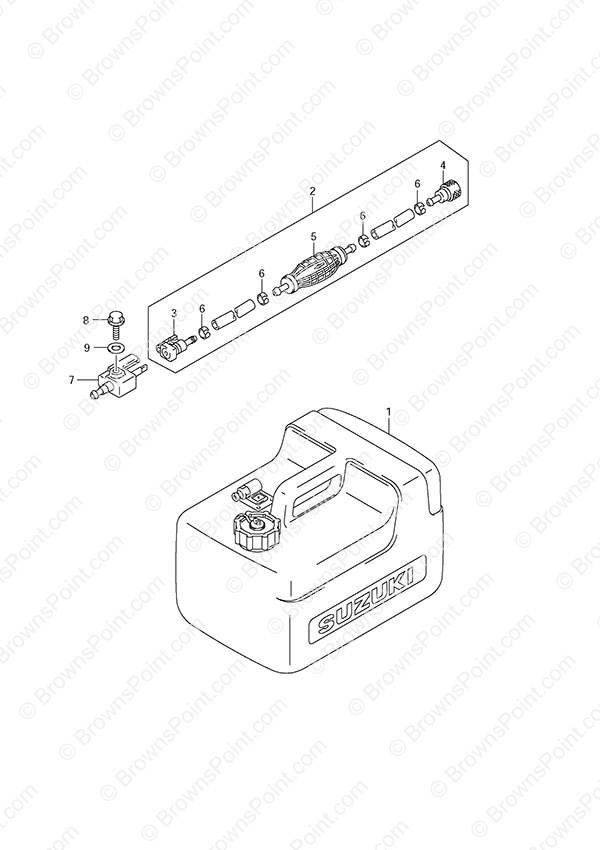

Fig. 33 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65000-99J01 3 Gallon Fuel Tank
SKU: 65000-99J01 Weight: 5.000000 Brand: Price: $ 133.96 |
3 Gallon Fuel Tank | 1 | $ 133.96 | ||
| 2 | 65700-91J28 Fuel Hose Assembly
SKU: 65700-91J28 Weight: 1.500000 Brand: Price: $ 262.54 |
Fuel Hose Assembly | 1 | $ 262.54 | ||
| 3 | 65750-87J11 Fuel Hose Connector
SKU: 65750-87J11 Weight: 0.200000 Brand: Price: $ 20.94 |
Fuel Hose Connector | 1 | $ 20.94 | ||
| 4 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 5 | 65770-94J04 Squeeze Pump
SKU: 65770-94J04 Weight: 0.500000 Brand: Price: $ 137.01 |
Squeeze Pump | 1 | $ 137.01 | ||
| 6 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 7 | 65720-986L0 Fuel Connector
SKU: 65720-986L0 Weight: 0.100000 Brand: Price: $ 57.47 |
Fuel Connector | 1 | $ 57.47 | ||
| 8 | 09103-06237 Bolt (6x12.5)
SKU: 09103-06237 Weight: 0.060000 Brand: Price: $ 3.52 |
Bolt (6x12.5) | 1 | $ 3.52 | ||
| 9 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
