Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

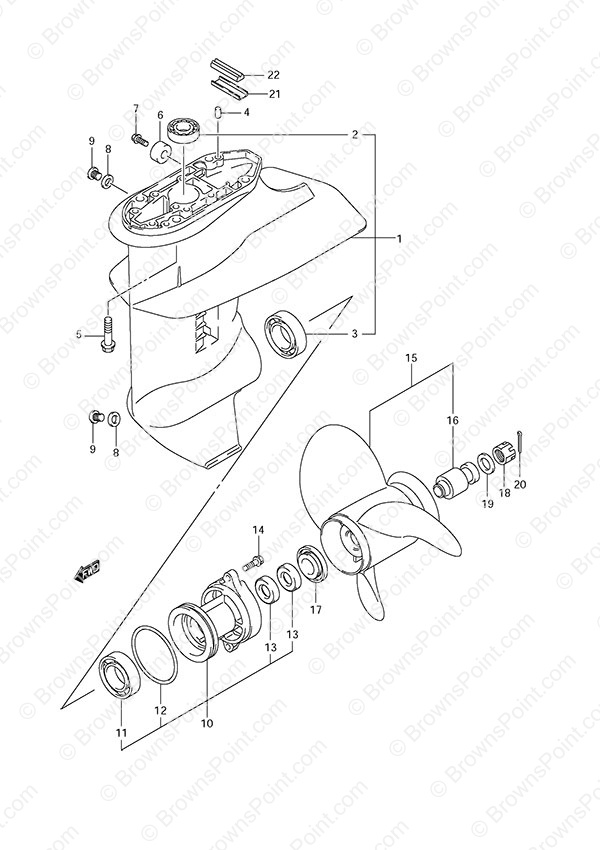

Fig. 28 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-99J40-0EP Gear Case Housing
SKU: 55100-99J40-0EP Weight: 20.000000 Brand: Price: $ 960.43 |
Gear Case Housing | 1 | $ 960.43 | ||
| 2 | 09263-17048 Bearing (17x24x27.5)
SKU: 09263-17048 Weight: 0.250000 Brand: Price: $ 22.15 |
Bearing (17x24x27.5) | 1 | $ 22.15 | ||
| 3 | 09262-25003 Bearing (25x52x15)
SKU: 09262-25003 Weight: 0.300000 Brand: Price: $ 26.55 |
Bearing (25x52x15) | 1 | $ 26.55 | ||
| 4 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.10 |
Knock Pin (6x10) | 2 | $ 3.10 | ||
| 5 | 09116-08151 Bolt (8x30)
SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.25 |
Bolt (8x30) | 4 | $ 2.25 | ||
| 6 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.62 |
Aluminum Anode | 1 | $ 7.62 | ||
| 7 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 3.15 |
Bolt (6x14) | 1 | $ 3.15 | ||
| 8 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.10 |
Drain Plug Gasket | 2 | $ 2.10 | ||
| 9 | 09248-08001 Drain Plug
SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.58 |
Drain Plug | 2 | $ 2.58 | ||
| 10 | 56120-99J41-0EP Propeller Shaft Bearing Housing
SKU: 56120-99J41-0EP Weight: 2.000000 Brand: Price: $ 142.21 |
Propeller Shaft Bearing Housing | 1 | $ 142.21 | ||
| 11 | 08110-60050 B1 25X47X12 BEA
SKU: 08110-60050 Weight: 0.200000 Brand: Price: $ 21.50 |
B1 25X47X12 BEA | 1 | $ 21.50 | ||
| 12 | 09280-57002 O-Ring
SKU: 09280-57002 Weight: 0.060000 Brand: Price: $ 2.74 |
O-Ring | 1 | $ 2.74 | ||
| 13 | 09289-17L02 Oil Seal (17x30x6)
SKU: 09289-17L02 Weight: 0.060000 Brand: Price: $ 7.77 |
Oil Seal (17x30x6) | 2 | $ 7.77 | ||
| 14 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 3.00 |
Bolt (6x20) | 2 | $ 3.00 | ||
| 15-1 | 58100-89L00-019 M701 Propeller 3x9-1/4x7
SKU: 58100-89L00-019 Weight: 2.000000 Brand: Price: $ 203.81 |
M701 Propeller 3x9-1/4x7 | 1 | $ 203.81 | ||
| 15-2 | 58100-89L20-019 M930 Propeller 3x9-1/4x9
SKU: 58100-89L20-019 Weight: 2.000000 Brand: Price: $ 203.81 |
M930 Propeller 3x9-1/4x9 | 1 | $ 203.81 | ||
| 15-3 | 58100-89L60-019 M1001 Propeller 3x9-1/4x10
SKU: 58100-89L60-019 Weight: 4.000000 Brand: Price: $ 185.28 |
M1001 Propeller 3x9-1/4x10 | 1 | $ 185.28 | ||
| 15-4 | 58100-89L70-019 M1101 Propeller 3x9-1/4x11
SKU: 58100-89L70-019 Weight: 5.000000 Brand: Price: $ 185.28 |
M1101 Propeller 3x9-1/4x11 | 1 | $ 185.28 | ||
| 16 | 58120-89L00 Type M Propeller Bushing
SKU: 58120-89L00 Weight: 0.500000 Brand: Price: $ 55.26 |
Type M Propeller Bushing | 1 | $ 55.26 | ||
| 17 | 57632-94J00 Propeller Stopper
SKU: 57632-94J00 Weight: 0.125000 Brand: Price: $ 55.44 |
Propeller Stopper | 1 | $ 55.44 | ||
| 18 | 09141-12005 Nut
SKU: 09141-12005 Weight: 0.060000 Brand: Price: $ 10.03 |
Nut | 1 | $ 10.03 | ||
| 19 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.90 |
Washer (12.5x22x2.5) | 1 | $ 1.90 | ||
| 20 | 09204-02004 Cotter Pin
SKU: 09204-02004 Weight: 0.060000 Brand: Price: $ 1.36 |
Cotter Pin | 1 | $ 1.36 | ||
| 21 | 55331-99J10 Exhaust Seal Core
SKU: 55331-99J10 Weight: 0.250000 Brand: Price: $ 7.83 |
Exhaust Seal Core | 1 | $ 7.83 | ||
| 22 | 55332-99J10 Exhaust Seal Rubber
SKU: 55332-99J10 Weight: 0.125000 Brand: Price: $ 9.44 |
Exhaust Seal Rubber | 1 | $ 9.44 | ||
| 23 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.42 |
Water Flush Connector | 1 | $ 10.42 | Opt: Not Shown | |
| 24 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.47 |
Magnesium Anode | 1 | $ 13.47 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
