Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

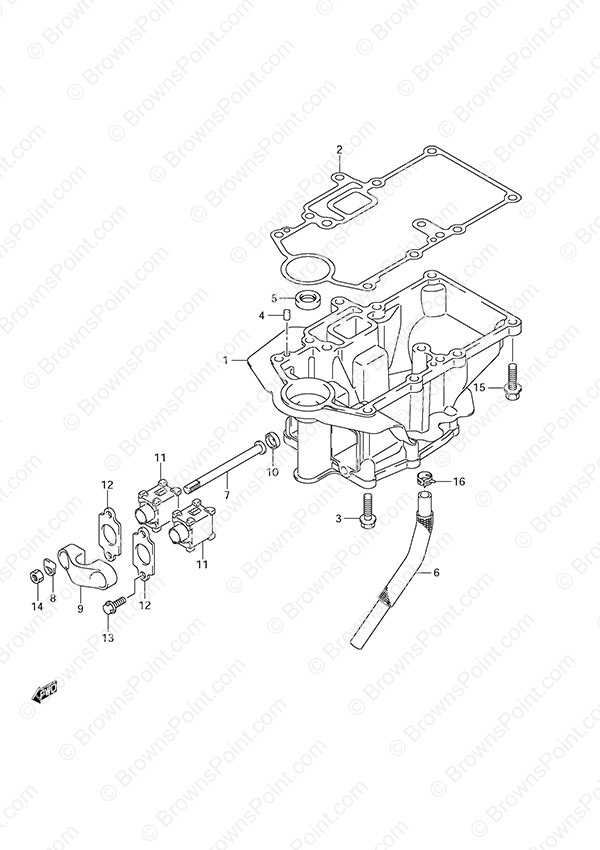

Fig. 26 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51110-89L01 Engine Holder
SKU: 51110-89L01 Weight: 5.000000 Brand: Price: $ 195.88 |
Engine Holder | 1 | $ 195.88 | ||
| 2 | 51211-89L00 Engine Holder Gasket
SKU: 51211-89L00 Weight: 0.250000 Brand: Price: $ 71.03 |
Engine Holder Gasket | 1 | $ 71.03 | ||
| 3 | 09116-08151 Bolt (8x30)
SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 3 | $ 2.18 | ||
| 4 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 5 | 09282-12L04 Oil Seal (12x25x7)
SKU: 09282-12L04 Weight: 0.060000 Brand: Price: $ 14.89 |
Oil Seal (12x25x7) | 1 | $ 14.89 | ||
| 6 | 16515-89L00 Oil Hose
SKU: 16515-89L00 Weight: 0.250000 Brand: Price: $ 6.95 |
Oil Hose | 1 | $ 6.95 | ||
| 7 | 54112-99J01 Upper Mount Bolt (L:123)
SKU: 54112-99J01 Weight: 0.250000 Brand: Price: $ 29.83 |
Upper Mount Bolt (L:123) | 2 | $ 29.83 | ||
| 8 | 54113-99JL0 Upper Mount Bolt Washer
SKU: 54113-99JL0 Weight: 0.250000 Brand: Price: $ 7.06 |
Upper Mount Bolt Washer | 2 | $ 7.06 | ||
| 9 | 54127-89L00 Upper Side Mount
SKU: 54127-89L00 Weight: 0.250000 Brand: Price: $ 12.64 |
Upper Side Mount | 1 | $ 12.64 | ||
| 10 | 54125-99J00 Upper Reverse Thrust Stopper
SKU: 54125-99J00 Weight: 0.250000 Brand: Price: $ 8.84 |
Upper Reverse Thrust Stopper | 2 | $ 8.84 | ||
| 11 | 54130-89L00 Upper Mount
SKU: 54130-89L00 Weight: 0.250000 Brand: Price: $ 50.41 |
Upper Mount | 2 | $ 50.41 | ||
| 12 | 54137-89L00 Upper Mount Cover
SKU: 54137-89L00 Weight: 0.250000 Brand: Price: $ 30.93 |
Upper Mount Cover | 2 | $ 30.93 | ||
| 13 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 4 | $ 7.44 | ||
| 14 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 15 | 01560-08307 BOLT
SKU: 01560-08307 Weight: 0.060000 Brand: Price: $ 3.74 |
BOLT | 7 | $ 3.74 | ||
| 16 | 09401-12413 Clip
SKU: 09401-12413 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
