Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

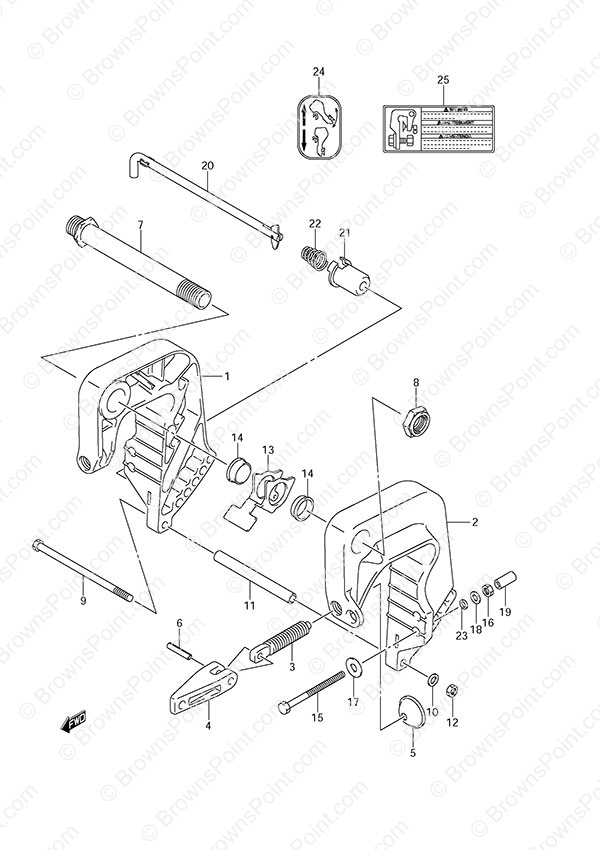

Fig. 24 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-89L00-0EP Starboard Clamp Bracket
SKU: 41111-89L00-0EP Weight: 5.000000 Brand: Price: $ 226.67 |
Starboard Clamp Bracket | 1 | $ 226.67 | ||
| 2 | 41121-89L00-0EP Port Clamp Bracket
SKU: 41121-89L00-0EP Weight: 5.000000 Brand: Price: $ 226.67 |
Port Clamp Bracket | 1 | $ 226.67 | ||
| 3 | 41211-99JL0 Clamp Screw
SKU: 41211-99JL0 Weight: 0.250000 Brand: Price: $ 14.42 |
Clamp Screw | 2 | $ 14.42 | ||
| 4 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 5 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 6 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 7 | 41130-90L00 Clamp Bracket Shaft
SKU: 41130-90L00 Weight: 0.800000 Brand: Price: $ 132.19 |
Clamp Bracket Shaft | 1 | $ 132.19 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 09100-06178 Bolt (6x150)
SKU: 09100-06178 Weight: 0.250000 Brand: Price: $ 5.73 |
Bolt (6x150) | 1 | $ 5.73 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 11 | 09180-06366 Spacer
SKU: 09180-06366 Weight: 0.250000 Brand: Price: $ 22.39 |
Spacer | 1 | $ 22.39 | ||
| 12 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 13 | 45261-89L00 Release Lever
SKU: 45261-89L00 Weight: 0.250000 Brand: Price: $ 26.65 |
Release Lever | 1 | $ 26.65 | ||
| 14 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 15 | 09100-08311 Bolt (8x90)
SKU: 09100-08311 Weight: 0.250000 Brand: Price: $ 4.95 |
Bolt (8x90) | 2 | $ 4.95 | ||
| 16 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 17 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 2 | $ 2.68 | ||
| 18 | 29162-93J10 Lock Washer
SKU: 29162-93J10 Weight: 0.100000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 | ||
| 19 | 41153-96300 Transom Bolt Cap (NLA)
SKU: 41153-96300 Weight: 0.100000 Brand: Price: $ 2.23 |
Transom Bolt Cap (NLA) | 2 | $ 2.23 | ||
| 20 | 45420-89L01 Tilt Lock Pin
SKU: 45420-89L01 Weight: 0.500000 Brand: Price: $ 35.16 |
Tilt Lock Pin | 1 | $ 35.16 | ||
| 21 | 45425-94J01 Tilt Lock Pin Stopper
SKU: 45425-94J01 Weight: 0.060000 Brand: Price: $ 1.72 |
Tilt Lock Pin Stopper | 1 | $ 1.72 | ||
| 22 | 09441-17001 Spring
SKU: 09441-17001 Weight: 0.060000 Brand: Price: $ 1.78 |
Spring | 1 | $ 1.78 | ||
| 23 | 09160-08170 Washer (8.5x16x2)
SKU: 09160-08170 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (8.5x16x2) | 2 | $ 2.26 | ||
| 24 | 45269-89L00 Reverse Lock Mark (NLA)
SKU: 45269-89L00 Weight: 0.250000 Brand: Price: $ 4.17 |
Reverse Lock Mark (NLA) | 1 | $ 4.17 | ||
| 25 | 69911-91J20 Clamp Bracket Mark (NLA)
SKU: 69911-91J20 Weight: 0.060000 Brand: Price: $ 5.01 |
Clamp Bracket Mark (NLA) | 1 | $ 5.01 | ||
| 26 | 41210-99JL1 Clamp Screw Assy
SKU: 41210-99JL1 Weight: 1.000000 Brand: Price: $ 27.48 |
Clamp Screw Assy | 1 | $ 27.48 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
