Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

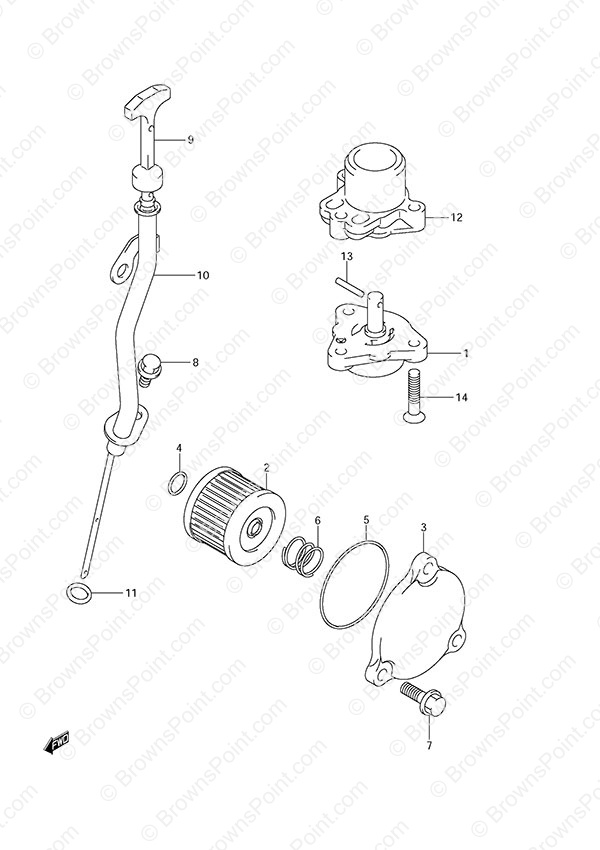

Fig. 14 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16400-89L00 Oil Pump Assembly
SKU: 16400-89L00 Weight: 1.000000 Brand: Price: $ 169.45 |
Oil Pump Assembly | 1 | $ 169.45 | ||
| 2 | 16510-45H10 Engine Oil Filter
SKU: 16510-45H10 Weight: 0.180000 Brand: Price: $ 10.07 |
Engine Oil Filter | 1 | $ 10.07 | ||
| 3 | 16512-99J00 Oil Filter Cap
SKU: 16512-99J00 Weight: 0.250000 Brand: Price: $ 24.73 |
Oil Filter Cap | 1 | $ 24.73 | ||
| 4 | 09280-13004 Oil Pump O-Ring
SKU: 09280-13004 Weight: 0.060000 Brand: Price: $ 2.32 |
Oil Pump O-Ring | 1 | $ 2.32 | ||
| 5 | 09280-54001 Oil Filter O-Ring
SKU: 09280-54001 Weight: 0.060000 Brand: Price: $ 4.02 |
Oil Filter O-Ring | 1 | $ 4.02 | ||
| 6 | 09440-18002 Spring
SKU: 09440-18002 Weight: 0.060000 Brand: Price: $ 1.17 |
Spring | 1 | $ 1.17 | ||
| 7 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 3 | $ 2.45 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 9 | 16910-89L01 Oil Level Gauge
SKU: 16910-89L01 Weight: 0.250000 Brand: Price: $ 8.97 |
Oil Level Gauge | 1 | $ 8.97 | ||
| 10 | 16930-89L00 Oil Level Gauge Guide (NLA)
SKU: 16930-89L00 Weight: 0.500000 Brand: Price: $ 12.85 |
Oil Level Gauge Guide (NLA) | 1 | $ 12.85 | ||
| 11 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.32 |
O-Ring | 1 | $ 3.32 | ||
| 12 | 16431-89L00 Oil Gallery Block
SKU: 16431-89L00 Weight: 0.500000 Brand: Price: $ 53.17 |
Oil Gallery Block | 1 | $ 53.17 | ||
| 13 | 59262-94J00 Oil Pump Pin
SKU: 59262-94J00 Weight: 0.100000 Brand: Price: $ 1.56 |
Oil Pump Pin | 1 | $ 1.56 | ||
| 14 | 02122-0630A SCREW
SKU: 02122-0630A Weight: 0.250000 Brand: Price: $ 1.83 |
SCREW | 1 | $ 1.83 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
