Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

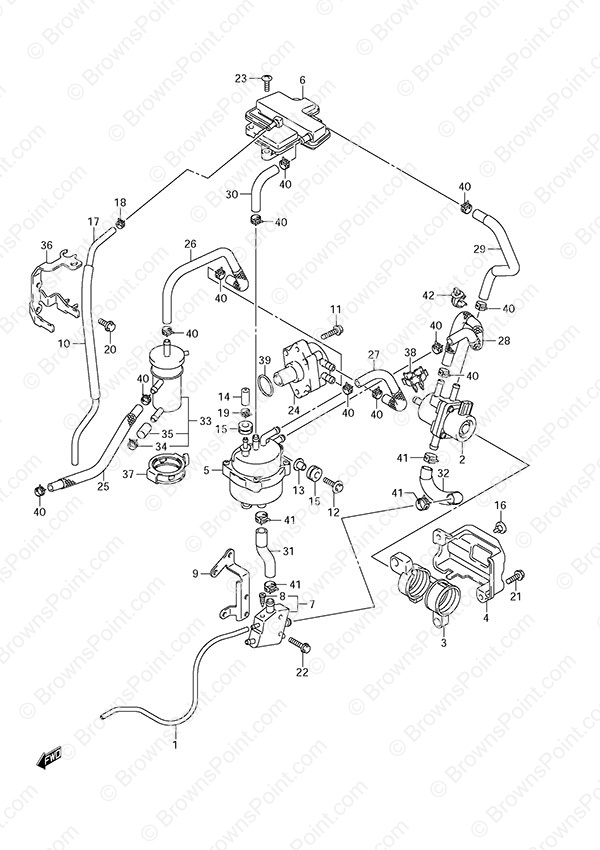

Fig. 9 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13684-89L00 Drain Hose
SKU: 13684-89L00 Weight: 0.250000 Brand: Price: $ 8.21 |
Drain Hose | 1 | $ 8.21 | ||
| 2 | 15200-89L11 Fuel Pump Assembly
SKU: 15200-89L11 Weight: 0.500000 Brand: Price: $ 279.48 |
Fuel Pump Assembly | 1 | $ 279.48 | High Pressure | |
| 3 | 15217-89L00 Fuel Pump Cushion
SKU: 15217-89L00 Weight: 0.250000 Brand: Price: $ 17.70 |
Fuel Pump Cushion | 1 | $ 17.70 | High Pressure | |
| 4 | 15218-89L00 Fuel Pump Bracket
SKU: 15218-89L00 Weight: 0.250000 Brand: Price: $ 27.99 |
Fuel Pump Bracket | 1 | $ 27.99 | High Pressure | |
| 5 | 15600-89L00 Fuel Vapor Separator Assembly
SKU: 15600-89L00 Weight: 1.000000 Brand: Price: $ 466.54 |
Fuel Vapor Separator Assembly | 1 | $ 466.54 | ||
| 6 | 15690-89L02 Evaporation Chamber
SKU: 15690-89L02 Weight: 0.500000 Brand: Price: $ 30.42 |
Evaporation Chamber | 1 | $ 30.42 | ||
| 7 | 15770-89L01 Fuel Cooler
SKU: 15770-89L01 Weight: 0.250000 Brand: Price: $ 50.83 |
Fuel Cooler | 1 | $ 50.83 | ||
| 8 | 15629-89L00 Fuel Drain Screw
SKU: 15629-89L00 Weight: 0.250000 Brand: Price: $ 6.33 |
Fuel Drain Screw | 1 | $ 6.33 | ||
| 9 | 15790-89L00 Fuel Cooler Bracket (NLA)
SKU: 15790-89L00 Weight: 0.250000 Brand: Price: $ 6.67 |
Fuel Cooler Bracket (NLA) | 1 | $ 6.67 | ||
| 10 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->200 | |
| 11 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 1 | $ 3.54 | ||
| 13 | 09169-06089 Washer (NLA)
SKU: 09169-06089 Weight: 0.250000 Brand: Price: $ 1.71 |
Washer (NLA) | 1 | $ 1.71 | ||
| 14 | 09251-05006 Plug
SKU: 09251-05006 Weight: 0.100000 Brand: Price: $ 5.94 |
Plug | 1 | $ 5.94 | ||
| 15 | 09320-09052 Cushion
SKU: 09320-09052 Weight: 0.250000 Brand: Price: $ 1.91 |
Cushion | 3 | $ 1.91 | ||
| 16 | 09321-08026 CUSHION
SKU: 09321-08026 Weight: 0.000000 Brand: Price: $ 1.95 |
CUSHION | 1 | $ 1.95 | ||
| 17 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->420 | |
| 18 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 19 | 09401-10412 Clip
SKU: 09401-10412 Weight: 0.060000 Brand: Price: $ 2.72 |
Clip | 1 | $ 2.72 | ||
| 20 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 21 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 22 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 23 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 3 | $ 2.24 | ||
| 24 | 15100-89L11 Fuel Pump Assembly
SKU: 15100-89L11 Weight: 0.500000 Brand: Price: $ 134.17 |
Fuel Pump Assembly | 1 | $ 134.17 | Low Pressure | |
| 25 | 15191-89L00 Fuel Hose
SKU: 15191-89L00 Weight: 0.250000 Brand: Price: $ 9.95 |
Fuel Hose | 1 | $ 9.95 | Connector to Filter | |
| 26 | 15192-89L02 HOSE,FUEL(FILTE
SKU: 15192-89L02 Weight: 0.000000 Brand: Price: $ 19.38 |
HOSE,FUEL(FILTE | 1 | $ 19.38 | Filter to Pump | |
| 27 | 15192-89L10 Fuel Hose (NLA)
SKU: 15192-89L10 Weight: 0.250000 Brand: Price: $ 12.64 |
Fuel Hose (NLA) | 1 | $ 12.64 | Pump to Separator | |
| 28 | 15192-89L20 Fuel Hose (NLA)
SKU: 15192-89L20 Weight: 0.250000 Brand: Price: $ 10.92 |
Fuel Hose (NLA) | 1 | $ 10.92 | Pump to Separator | |
| 29 | 15192-89L30 Fuel Hose
SKU: 15192-89L30 Weight: 0.250000 Brand: Price: $ 22.49 |
Fuel Hose | 1 | $ 22.49 | Pump to 3 Way | |
| 30 | 15192-89L40 Fuel Hose
SKU: 15192-89L40 Weight: 0.250000 Brand: Price: $ 8.90 |
Fuel Hose | 1 | $ 8.90 | Separator to Evap | |
| 31 | 15193-89L00 Fuel Hose*
SKU: 15193-89L00 Weight: 0.250000 Brand: Price: $ 9.49 |
Fuel Hose* | 1 | $ 9.49 | Separator to Cooler | |
| 32 | 15194-89L00 Fuel Hose
SKU: 15194-89L00 Weight: 0.250000 Brand: Price: $ 15.78 |
Fuel Hose | 1 | $ 15.78 | Cooler to Pump | |
| 33 | 15410-87L00 Fuel Filter
SKU: 15410-87L00 Weight: 0.100000 Brand: Price: $ 17.76 |
Fuel Filter | 1 | $ 17.76 | Low Pressure | |
| 34 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 35 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 36 | 15421-89L00 Fuel Filter Bracket
SKU: 15421-89L00 Weight: 0.250000 Brand: Price: $ 19.58 |
Fuel Filter Bracket | 1 | $ 19.58 | ||
| 37 | 15422-89L00 Fuel Filter Clamp
SKU: 15422-89L00 Weight: 0.250000 Brand: Price: $ 8.73 |
Fuel Filter Clamp | 1 | $ 8.73 | ||
| 38 | 15685-89L00 Fuel Hose Clamp (NLA)
SKU: 15685-89L00 Weight: 0.250000 Brand: Price: $ 3.37 |
Fuel Hose Clamp (NLA) | 1 | $ 3.37 | ||
| 39 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 40 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 12 | $ 2.09 | ||
| 41 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 4 | $ 1.58 | ||
| 42 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 2 | $ 2.52 |
