Suzuki DF 20A Parts Listings - 2013
S/N 02002F-310001 to 02002F-31XXXX

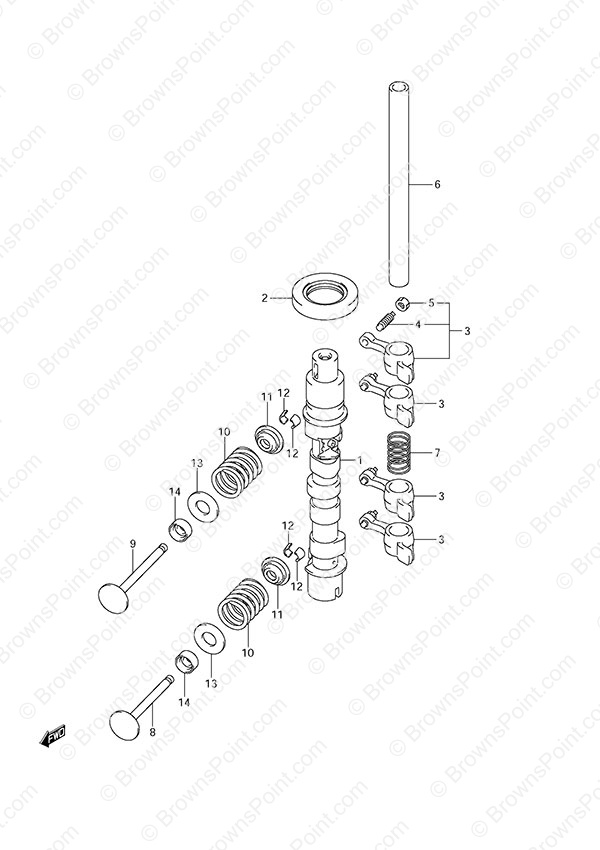

Fig. 5 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12700-89L01 Camshaft Assembly
SKU: 12700-89L01 Weight: 2.000000 Brand: Price: $ 230.23 |
Camshaft Assembly | 1 | $ 230.23 | ||
| 2 | 09283-25L03 Oil Seal (25x44x7)
SKU: 09283-25L03 Weight: 0.250000 Brand: Price: $ 7.17 |
Oil Seal (25x44x7) | 1 | $ 7.17 | ||
| 3 | 12840-89L00 Rocker Arm
SKU: 12840-89L00 Weight: 0.250000 Brand: Price: $ 24.00 |
Rocker Arm | 4 | $ 24.00 | ||
| 4 | 12842-49201 Tappet Adjust Screw
SKU: 12842-49201 Weight: 0.100000 Brand: Price: $ 5.97 |
Tappet Adjust Screw | 4 | $ 5.97 | ||
| 5 | 12843-27A00 Tappet Adjust Nut
SKU: 12843-27A00 Weight: 0.100000 Brand: Price: $ 3.11 |
Tappet Adjust Nut | 4 | $ 3.11 | ||
| 6 | 12861-89L00 Rocker Arm Shaft (NLA)
SKU: 12861-89L00 Weight: 0.500000 Brand: Price: $ 14.88 |
Rocker Arm Shaft (NLA) | 1 | $ 14.88 | ||
| 7 | 12891-94J00 Rocker Arm Shaft Spring
SKU: 12891-94J00 Weight: 0.125000 Brand: Price: $ 1.51 |
Rocker Arm Shaft Spring | 1 | $ 1.51 | ||
| 8 | 12911-93E00 Intake Valve
SKU: 12911-93E00 Weight: 0.200000 Brand: Price: $ 30.87 |
Intake Valve | 2 | $ 30.87 | ||
| 9 | 12915-93E00 Exhaust Valve
SKU: 12915-93E00 Weight: 0.200000 Brand: Price: $ 53.22 |
Exhaust Valve | 2 | $ 53.22 | ||
| 10 | 12921-89L00 Valve Spring
SKU: 12921-89L00 Weight: 0.250000 Brand: Price: $ 8.11 |
Valve Spring | 4 | $ 8.11 | ||
| 11 | 12931-89L00 Valve Spring Retainer (NLA)
SKU: 12931-89L00 Weight: 0.250000 Brand: Price: $ 3.72 |
Valve Spring Retainer (NLA) | 4 | $ 3.72 | ||
| 12 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 8 | $ 2.04 | ||
| 13 | 12933-71C00 Valve Spring Seat
SKU: 12933-71C00 Weight: 0.100000 Brand: Price: $ 2.49 |
Valve Spring Seat | 4 | $ 2.49 | ||
| 14 | 09289-05L04 Oil Seal (5.5x11.5x9.3)
SKU: 09289-05L04 Weight: 0.250000 Brand: Price: $ 4.89 |
Oil Seal (5.5x11.5x9.3) | 4 | $ 4.89 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
