Suzuki DF 9.9A Parts Listings - 2012
S/N 00994F-210001 to 00994F-21XXXX

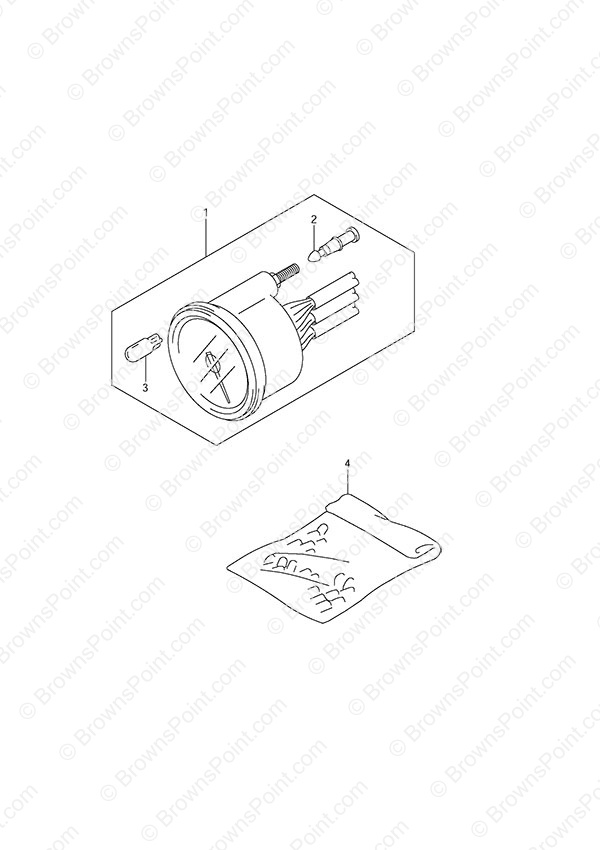

Fig. 80 - Opt: Meter w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 34200-93J22 Black Tachometer
SKU: 34200-93J22 Weight: 1.220000 Brand: Price: $ 209.11 |
Black Tachometer | 1 | $ 209.11 | ||
| 1-2 | 34200-93J34 White Tachometer
SKU: 34200-93J34 Weight: 1.500000 Brand: Price: $ 209.11 |
White Tachometer | 1 | $ 209.11 | ||
| 2 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 3 | 09471-12028 Bulb (12v, 3.4w)
SKU: 09471-12028 Weight: 0.100000 Brand: Price: $ 1.99 |
Bulb (12v, 3.4w) | 1 | $ 1.99 | ||
| 4 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
