Suzuki DF 9.9A Parts Listings - 2012
S/N 00994F-210001 to 00994F-21XXXX

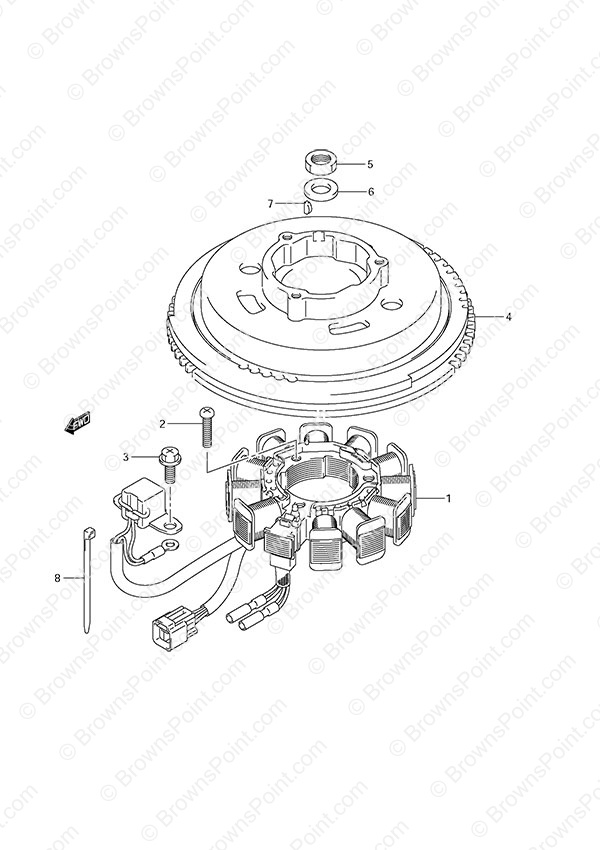

Fig. 36 - Magneto w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32120-99J00 Stator & Pulser Coil
SKU: 32120-99J00 Weight: 1.000000 Brand: Price: $ 274.18 |
Stator & Pulser Coil | 1 | $ 274.18 | ||
| 2 | 09125-06035 Screw (6x25)
SKU: 09125-06035 Weight: 0.060000 Brand: Price: $ 1.93 |
Screw (6x25) | 3 | $ 1.93 | ||
| 3 | 02162-05127 Screw (NLA)
SKU: 02162-05127 Weight: 0.100000 Brand: Price: $ 1.01 |
Screw (NLA) | 2 | $ 1.01 | ||
| 5 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 6 | 59171-94J00 Flywheel Washer
SKU: 59171-94J00 Weight: 0.250000 Brand: Price: $ 4.02 |
Flywheel Washer | 1 | $ 4.02 | ||
| 7 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 8 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
