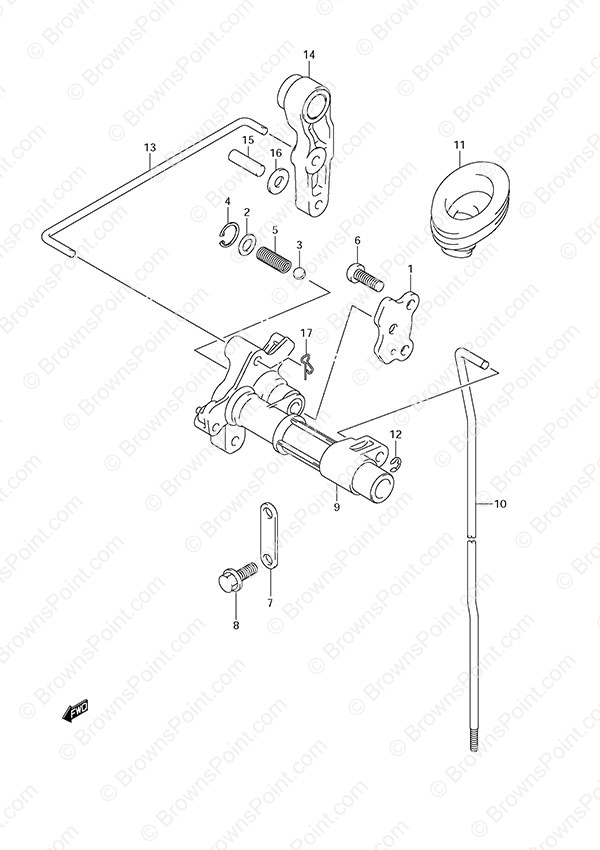

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 21122-99J00 Clutch Notch Plate SKU: 21122-99J00 Weight: 0.250000 Brand: Price: $ 23.34 |
Clutch Notch Plate | 1 | $ 23.34 | ||
2 | 09160-06082 Washer (6.5x13x1.0) SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
3 | 09260-10006 Ball SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
4 | 09381-14004 Circlip SKU: 09381-14004 Weight: 0.250000 Brand: Price: $ 2.65 |
Circlip | 1 | $ 2.65 | ||
5 | 09440-07079 Spring SKU: 09440-07079 Weight: 0.250000 Brand: Price: $ 3.42 |
Spring | 1 | $ 3.42 | ||
6 | 02112-06127 SCREW SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 2 | $ 1.85 | ||
7 | 21126-99J00 Clutch Shaft Holder SKU: 21126-99J00 Weight: 0.100000 Brand: Price: $ 4.45 |
Clutch Shaft Holder | 1 | $ 4.45 | ||
8 | 01550-06167 BOLT SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
9 | 21210-99J00 Clutch Lever Shaft SKU: 21210-99J00 Weight: 0.200000 Brand: Price: $ 50.37 |
Clutch Lever Shaft | 1 | $ 50.37 | ||
10-1 | 23111-99J00 Clutch Rod (S) SKU: 23111-99J00 Weight: 0.250000 Brand: Price: $ 31.74 |
Clutch Rod (S) | 1 | $ 31.74 | w/Transom (S) | |
10-2 | 23111-99J10 Clutch Rod (L) SKU: 23111-99J10 Weight: 2.000000 Brand: Price: $ 36.41 |
Clutch Rod (L) | 1 | $ 36.41 | w/Transom (L) | |
12 | 09383-04002 E Ring SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 | ||
11 | 23131-99J00 Clutch Rod Boot SKU: 23131-99J00 Weight: 0.250000 Brand: Price: $ 23.02 |
Clutch Rod Boot | 1 | $ 23.02 | ||
13 | 21241-99J00 Clutch Lever Link SKU: 21241-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Clutch Lever Link | 1 | $ 14.52 | ||
14 | 23210-99J00 Clutch Control Lever SKU: 23210-99J00 Weight: 0.250000 Brand: Price: $ 31.49 |
Clutch Control Lever | 1 | $ 31.49 | ||
15 | 09204-01002 Cotter Pin SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
16 | 09160-05029 Washer (5.5x10x0.8) SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
17 | 09385-04003 Snap Pin SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.41 |
Snap Pin | 1 | $ 2.41 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
