Suzuki DF 9.9A Parts Listings - 2012
S/N 00994F-210001 to 00994F-21XXXX

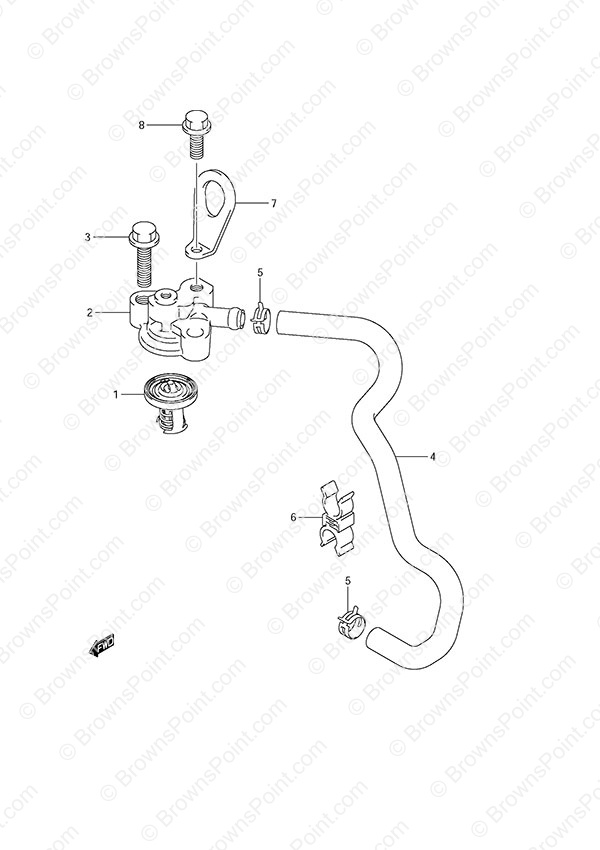

Fig. 19 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17670-94J02 Thermostat (60c)
SKU: 17670-94J02 Weight: 0.125000 Brand: Price: $ 53.42 |
Thermostat (60c) | 1 | $ 53.42 | ||
| 2 | 17681-99J00 Thermostat Cover
SKU: 17681-99J00 Weight: 0.200000 Brand: Price: $ 0.00 |
Thermostat Cover | 1 | $ 0.00 | ||
| 3 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 | ||
| 4 | 11197-99J01 Water Return Hose
SKU: 11197-99J01 Weight: 0.250000 Brand: Price: $ 4.39 |
Water Return Hose | 1 | $ 4.39 | ||
| 5 | 09401-12413 Clip
SKU: 09401-12413 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 2 | $ 2.24 | ||
| 6 | 09408-00173 Clamp
SKU: 09408-00173 Weight: 0.060000 Brand: Price: $ 3.92 |
Clamp | 1 | $ 3.92 | ||
| 7 | 11291-91B50 Engine Hook
SKU: 11291-91B50 Weight: 0.400000 Brand: Price: $ 9.28 |
Engine Hook | 1 | $ 9.28 | Optional | |
| 8 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
