Suzuki DF 9.9A Parts Listings - 2012
S/N 00994F-210001 to 00994F-21XXXX

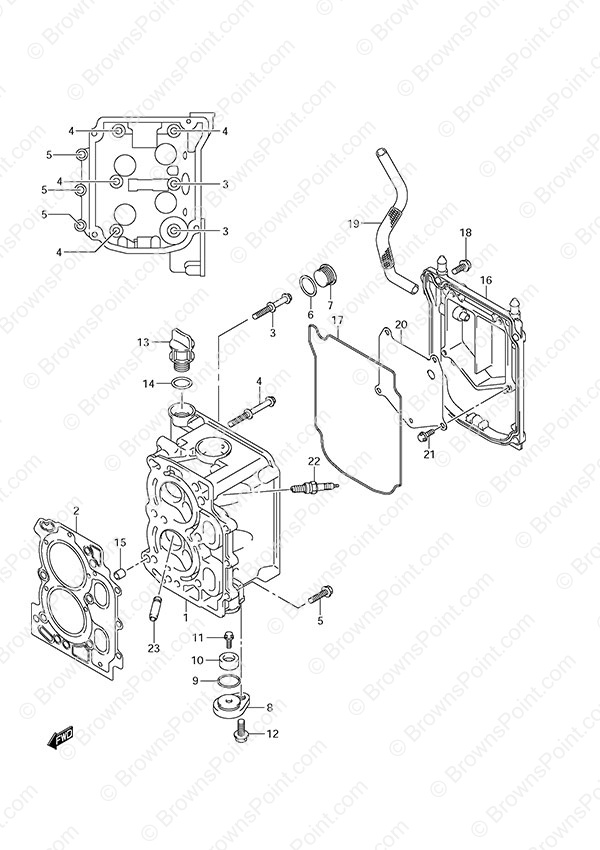

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11110-99J00 Cylinder Head
SKU: 11110-99J00 Weight: 0.100000 Brand: Price: $ 1,275.87 |
Cylinder Head | 1 | $ 1,275.87 | ||
| 2 | 11141-99J00 Cylinder Head Gasket
SKU: 11141-99J00 Weight: 0.100000 Brand: Price: $ 80.57 |
Cylinder Head Gasket | 1 | $ 80.57 | ||
| 3 | 11118-99JL0 Cylinder Head Bolt (8x67)
SKU: 11118-99JL0 Weight: 0.125000 Brand: Price: $ 12.32 |
Cylinder Head Bolt (8x67) | 2 | $ 12.32 | ||
| 4 | 11119-99JL0 Cylinder Head Bolt (8x77)
SKU: 11119-99JL0 Weight: 0.125000 Brand: Price: $ 9.78 |
Cylinder Head Bolt (8x77) | 4 | $ 9.78 | ||
| 5 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 6 | 11216-90J00 Oil Gallery Plug Gasket
SKU: 11216-90J00 Weight: 0.060000 Brand: Price: $ 3.81 |
Oil Gallery Plug Gasket | 1 | $ 3.81 | ||
| 7 | 09248-22002 Plug (22x11)
SKU: 09248-22002 Weight: 0.125000 Brand: Price: $ 9.88 |
Plug (22x11) | 1 | $ 9.88 | ||
| 8 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 1 | $ 16.29 | ||
| 9 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 10 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 11 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 12 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 13 | 11382-93E00 Oil Filler Cap
SKU: 11382-93E00 Weight: 0.125000 Brand: Price: $ 4.51 |
Oil Filler Cap | 1 | $ 4.51 | ||
| 14 | 09280-17003 Oil Filler Cap O-Ring
SKU: 09280-17003 Weight: 0.060000 Brand: Price: $ 1.66 |
Oil Filler Cap O-Ring | 1 | $ 1.66 | ||
| 15 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 16 | 11170-99J00 Cylinder Head Cover
SKU: 11170-99J00 Weight: 2.000000 Brand: Price: $ 56.69 |
Cylinder Head Cover | 1 | $ 56.69 | ||
| 17 | 11178-99J00 Cylinder Head Cover O-Ring
SKU: 11178-99J00 Weight: 0.100000 Brand: Price: $ 11.52 |
Cylinder Head Cover O-Ring | 1 | $ 11.52 | ||
| 18 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 19 | 11196-99J00 Breather Hose
SKU: 11196-99J00 Weight: 0.100000 Brand: Price: $ 24.28 |
Breather Hose | 1 | $ 24.28 | ||
| 20 | 11173-99J00 Breather Plate
SKU: 11173-99J00 Weight: 0.250000 Brand: Price: $ 13.26 |
Breather Plate | 1 | $ 13.26 | ||
| 21 | 01550-0612A BOLT
SKU: 01550-0612A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 4 | $ 1.97 | ||
| 22 | 09482-00528 NGK CR6E Spark Plug
SKU: 09482-00528 Weight: 0.187500 Brand: Price: $ 7.24 |
NGK CR6E Spark Plug | 2 | $ 7.24 | ||
| 23 | 11115-09G00-001 Valve Guide (OS)
SKU: 11115-09G00-001 Weight: 0.100000 Brand: Price: $ 20.17 |
Valve Guide (OS) | 4 | $ 20.17 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
