Suzuki DF 40A Parts Listings - 2011
S/N 04003F-110001 to 04003F-11XXXX

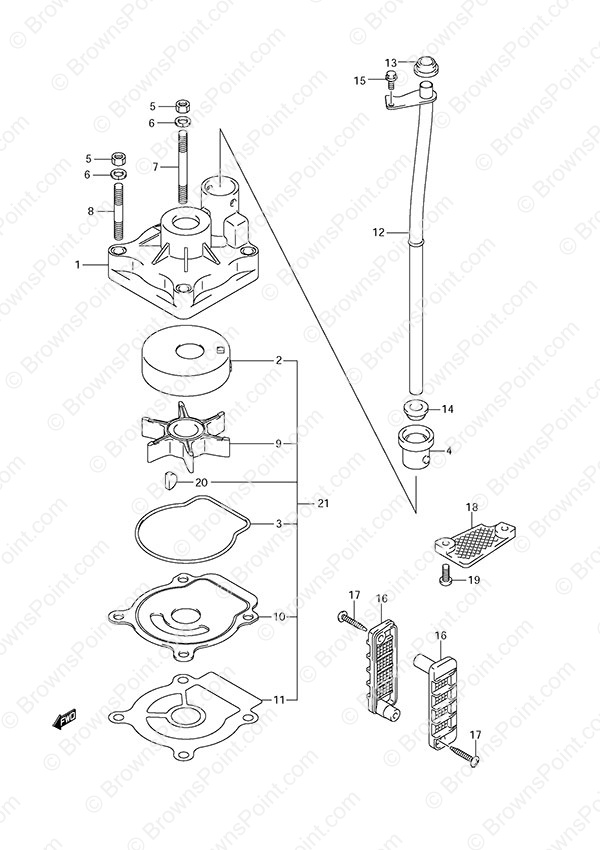

Fig. 12 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-88L00 Water Pump Case
SKU: 17410-88L00 Weight: 0.240000 Brand: Price: $ 68.42 |
Water Pump Case | 1 | $ 68.42 | ||
| 2 | 17413-95J00 Water Pump Case Sleeve
SKU: 17413-95J00 Weight: 0.080000 Brand: Price: $ 22.79 |
Water Pump Case Sleeve | 1 | $ 22.79 | ||
| 3 | 17416-95J00 Water Pump Case Seal
SKU: 17416-95J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Pump Case Seal | 1 | $ 7.01 | ||
| 4 | 17564-88L01 Water Pump Case Bushing
SKU: 17564-88L01 Weight: 0.060000 Brand: Price: $ 2.96 |
Water Pump Case Bushing | 1 | $ 2.96 | ||
| 5 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 6 | 29162-93J00 Lock Washer
SKU: 29162-93J00 Weight: 0.060000 Brand: Price: $ 1.52 |
Lock Washer | 4 | $ 1.52 | ||
| 7 | 09108-06143 Stud Bolt (L:45)
SKU: 09108-06143 Weight: 0.250000 Brand: Price: $ 6.73 |
Stud Bolt (L:45) | 2 | $ 6.73 | ||
| 8 | 09108-06144 Stud Bolt (L:31)
SKU: 09108-06144 Weight: 0.250000 Brand: Price: $ 6.16 |
Stud Bolt (L:31) | 2 | $ 6.16 | ||
| 9 | 17461-96312 Water Pump Impeller
SKU: 17461-96312 Weight: 0.060000 Brand: Price: $ 30.31 |
Water Pump Impeller | 1 | $ 30.31 | ||
| 10 | 17471-95J01 Water Pump Plate
SKU: 17471-95J01 Weight: 0.100000 Brand: Price: $ 8.67 |
Water Pump Plate | 1 | $ 8.67 | ||
| 11 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 12-1 | 17560-88L10 Water Tube (L)
SKU: 17560-88L10 Weight: 0.500000 Brand: Price: $ 43.89 |
Water Tube (L) | 1 | $ 43.89 | w/Transom (L) | |
| 12-2 | 17560-88L20 Water Tube (X)
SKU: 17560-88L20 Weight: 0.500000 Brand: Price: $ 81.92 |
Water Tube (X) | 1 | $ 81.92 | Type: X | |
| 13 | 17562-87L00 Replaced by 17562-87L01
SKU: 17562-87L00 Weight: 0.060000 Brand: Price: $ 3.46 |
Replaced by 17562-87L01 | 1 | $ 3.46 | Upper | |
| 14 | 17562-87L00 Replaced by 17562-87L01
SKU: 17562-87L00 Weight: 0.060000 Brand: Price: $ 3.46 |
Replaced by 17562-87L01 | 1 | $ 3.46 | Lower | |
| 15 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 16 | 17631-96320 Water Filter
SKU: 17631-96320 Weight: 0.060000 Brand: Price: $ 7.63 |
Water Filter | 2 | $ 7.63 | ||
| 17 | 03142-04309 SCREW 4 X 30
SKU: 03142-04309 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW 4 X 30 | 2 | $ 2.34 | ||
| 18-1 | 17635-87E00 Sub Water Filter
SKU: 17635-87E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Sub Water Filter | 1 | $ 5.02 | ||
| 18-2 | 17635-87E10 Gear Case Plate
SKU: 17635-87E10 Weight: 0.250000 Brand: Price: $ 109.56 |
Gear Case Plate | 1 | $ 109.56 | Optional | |
| 19 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 20 | 09420-04006 Impeller Key
SKU: 09420-04006 Weight: 0.060000 Brand: Price: $ 3.93 |
Impeller Key | 1 | $ 3.93 | ||
| 21 | 17400-88L01 Water Pump Repair Kit DF40A/DF50A/DF60A
SKU: 17400-88L01 Weight: 0.500000 Brand: Price: $ 52.12 |
Water Pump Repair Kit DF40A/DF50A/DF60A | 1 | $ 52.12 | Opt: Includes Ref# 2, 3, 9 to 11 20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
