Suzuki DF 40A Parts Listings - 2011
S/N 04003F-110001 to 04003F-11XXXX

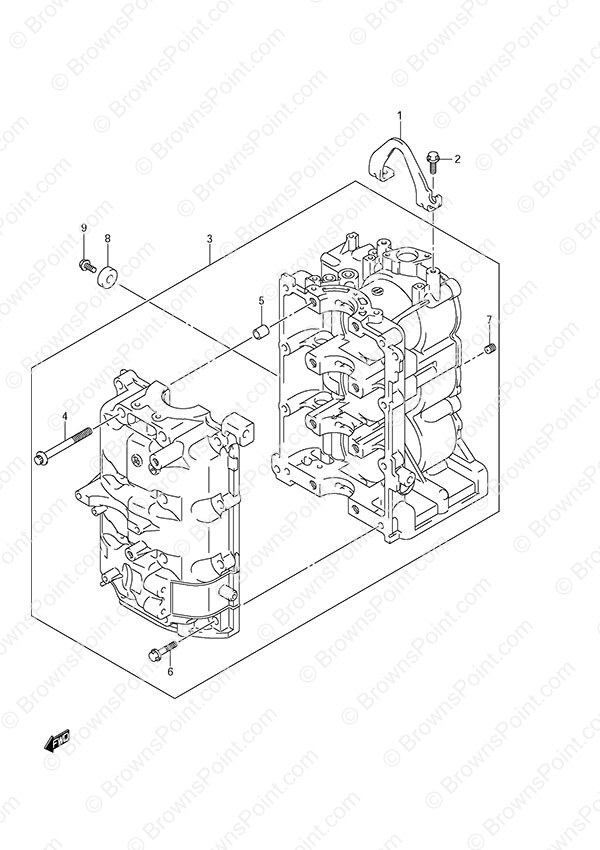

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11291-88L00 Engine Hook
SKU: 11291-88L00 Weight: 0.250000 Brand: Price: $ 15.90 |
Engine Hook | 1 | $ 15.90 | ||
| 2 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 3 | 11301-88L00 Cylinder Block Set
SKU: 11301-88L00 Weight: 20.000000 Brand: Price: $ 2,571.59 |
Cylinder Block Set | 1 | $ 2,571.59 | ||
| 4 | 11117-89J20 Crankcase Bolt
SKU: 11117-89J20 Weight: 0.100000 Brand: Price: $ 6.35 |
Crankcase Bolt | 8 | $ 6.35 | ||
| 5 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 4 | $ 2.54 | ||
| 6 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 8 | $ 3.48 | ||
| 7 | 11112-88L00 Oil Venturi Plug (NLA)
SKU: 11112-88L00 Weight: 0.250000 Brand: Price: $ 3.96 |
Oil Venturi Plug (NLA) | 1 | $ 3.96 | ||
| 8-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 8-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 9 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
