Suzuki DF 6 Parts Listings - 2012
S/N 00602F-210001 to 00602F-21XXXX

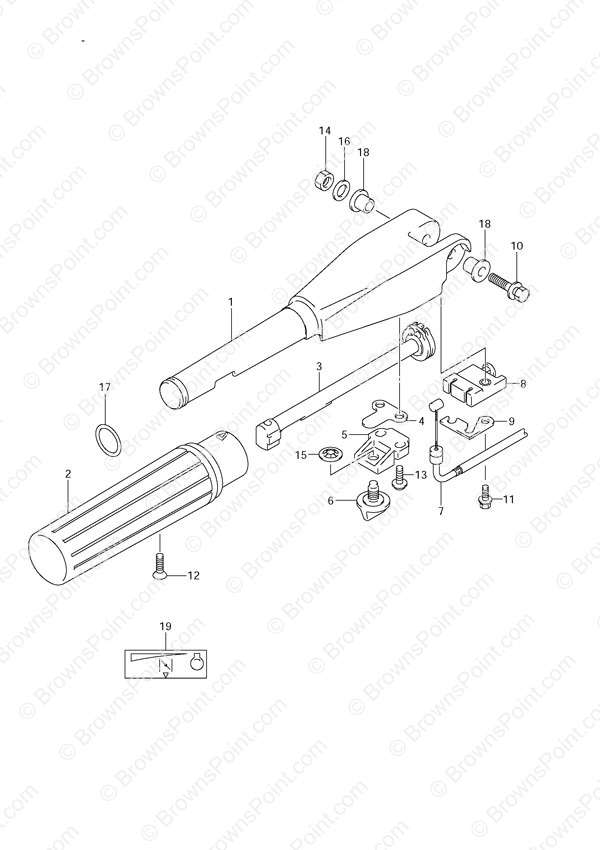

Fig. 26 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-91J30-0EP Tiller Handle
SKU: 63111-91J30-0EP Weight: 2.000000 Brand: Price: $ 77.41 |
Tiller Handle | 1 | $ 77.41 | ||
| 2 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 3 | 63221-91J10 Handle Rod
SKU: 63221-91J10 Weight: 0.060000 Brand: Price: $ 28.66 |
Handle Rod | 1 | $ 28.66 | ||
| 4 | 63225-98601 Throttle Adjust Plate
SKU: 63225-98601 Weight: 0.060000 Brand: Price: $ 4.05 |
Throttle Adjust Plate | 1 | $ 4.05 | ||
| 5 | 63241-986B0 Handle Rod Support
SKU: 63241-986B0 Weight: 0.060000 Brand: Price: $ 7.01 |
Handle Rod Support | 1 | $ 7.01 | ||
| 6 | 63244-986A0 Throttle Adjust Knob
SKU: 63244-986A0 Weight: 0.060000 Brand: Price: $ 5.83 |
Throttle Adjust Knob | 1 | $ 5.83 | ||
| 7 | 63610-91J20 Throttle Cable Assembly
SKU: 63610-91J20 Weight: 0.200000 Brand: Price: $ 19.85 |
Throttle Cable Assembly | 2 | $ 19.85 | ||
| 8 | 63620-91J10 Throttle Cable Stopper
SKU: 63620-91J10 Weight: 0.060000 Brand: Price: $ 28.66 |
Throttle Cable Stopper | 1 | $ 28.66 | ||
| 9 | 63628-91J10 Throttle Cable Stopper Plate
SKU: 63628-91J10 Weight: 0.100000 Brand: Price: $ 8.05 |
Throttle Cable Stopper Plate | 1 | $ 8.05 | ||
| 10 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 1 | $ 4.71 | ||
| 11 | 09118-06123 Bolt (6x25)
SKU: 09118-06123 Weight: 0.060000 Brand: Price: $ 2.42 |
Bolt (6x25) | 1 | $ 2.42 | ||
| 12 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 13 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 14 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 15 | 09148-06008 Nut
SKU: 09148-06008 Weight: 0.060000 Brand: Price: $ 1.30 |
Nut | 1 | $ 1.30 | ||
| 16 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 17 | 09280-20004 O-Ring
SKU: 09280-20004 Weight: 0.060000 Brand: Price: $ 1.44 |
O-Ring | 1 | $ 1.44 | ||
| 18 | 09306-08016 Bushing
SKU: 09306-08016 Weight: 0.060000 Brand: Price: $ 2.72 |
Bushing | 2 | $ 2.72 | ||
| 19 | 69714-91J20 Engine Start Mark
SKU: 69714-91J20 Weight: 0.200000 Brand: Price: $ 4.39 |
Engine Start Mark | 1 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
