Suzuki DF 6 Parts Listings - 2012
S/N 00602F-210001 to 00602F-21XXXX

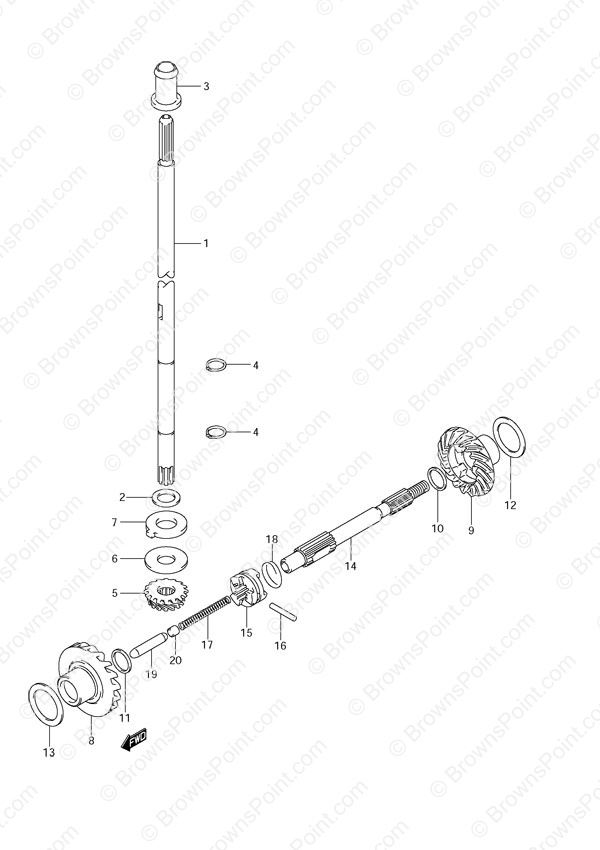

Fig. 16 - Drive Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57111-91J21 Drive Shaft (S)
SKU: 57111-91J21 Weight: 1.020000 Brand: Price: $ 93.51 |
Drive Shaft (S) | 1 | $ 93.51 | w/Transom (S) | |
| 1-2 | 57111-91J31 Drive Shaft (L)
SKU: 57111-91J31 Weight: 5.000000 Brand: Price: $ 109.74 |
Drive Shaft (L) | 1 | $ 109.74 | w/Transom (L) | |
| 2 | 09181-10156 Washer
SKU: 09181-10156 Weight: 0.100000 Brand: Price: $ 2.13 |
Washer | 1 | $ 2.13 | ||
| 3 | 57130-91J00 Drive Shaft Bushing
SKU: 57130-91J00 Weight: 0.060000 Brand: Price: $ 11.66 |
Drive Shaft Bushing | 1 | $ 11.66 | w/Transom (L) | |
| 4 | 09380-10003 Circlip
SKU: 09380-10003 Weight: 0.100000 Brand: Price: $ 1.78 |
Circlip | 2 | $ 1.78 | ||
| 5 | 57311-91J00 Pinion Gear
SKU: 57311-91J00 Weight: 0.500000 Brand: Price: $ 49.77 |
Pinion Gear | 1 | $ 49.77 | ||
| 6-1 | 09160-10088 Washer (1.70) (NLA)
SKU: 09160-10088 Weight: 0.100000 Brand: Price: $ 5.73 |
Washer (1.70) (NLA) | 1 | $ 5.73 | Pinion Adj | |
| 6-2 | 09160-10089 Washer (1.80) (NLA)
SKU: 09160-10089 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (1.80) (NLA) | 1 | $ 4.46 | ||
| 6-3 | 09160-10090 Washer (1.90) (NLA)
SKU: 09160-10090 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (1.90) (NLA) | 1 | $ 4.46 | ||
| 6-4 | 09160-10091 Washer (2.00) (NLA)
SKU: 09160-10091 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (2.00) (NLA) | 1 | $ 4.46 | ||
| 6-5 | 09160-10092 Washer (2.10) (NLA)
SKU: 09160-10092 Weight: 0.100000 Brand: Price: $ 4.64 |
Washer (2.10) (NLA) | 1 | $ 4.64 | ||
| 7 | 09169-12002 Washer (NLA)
SKU: 09169-12002 Weight: 0.100000 Brand: Price: $ 9.83 |
Washer (NLA) | 1 | $ 9.83 | ||
| 8 | 57510-91J00 Forward Gear
SKU: 57510-91J00 Weight: 0.500000 Brand: Price: $ 96.85 |
Forward Gear | 1 | $ 96.85 | ||
| 9 | 57521-91J00 Reverse Gear
SKU: 57521-91J00 Weight: 1.000000 Brand: Price: $ 96.85 |
Reverse Gear | 1 | $ 96.85 | ||
| 10-1 | 09181-12008 Thrust Washer (0.60) (NLA)
SKU: 09181-12008 Weight: 0.100000 Brand: Price: $ 1.09 |
Thrust Washer (0.60) (NLA) | 1 | $ 1.09 | Prop Shaft REV | |
| 10-2 | 09160-12070 Thrust Washer (0.80) (NLA)
SKU: 09160-12070 Weight: 0.100000 Brand: Price: $ 0.98 |
Thrust Washer (0.80) (NLA) | 1 | $ 0.98 | ||
| 10-3 | 09181-12111 Thrust Washer (1.00)
SKU: 09181-12111 Weight: 0.060000 Brand: Price: $ 1.67 |
Thrust Washer (1.00) | 1 | $ 1.67 | ||
| 11 | 09181-12111 Thrust Washer (1.00)
SKU: 09181-12111 Weight: 0.060000 Brand: Price: $ 1.67 |
Thrust Washer (1.00) | 1 | $ 1.67 | Prop Shaft FWD | |
| 12-1 | 09181-20159 Shim (0.60) (NLA)
SKU: 09181-20159 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.60) (NLA) | 1 | $ 1.94 | REV Gear | |
| 12-2 | 09181-20160 Shim (0.70) (NLA)
SKU: 09181-20160 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.70) (NLA) | 1 | $ 1.94 | ||
| 12-3 | 09181-20162 Shim (0.80) (NLA)
SKU: 09181-20162 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.80) (NLA) | 1 | $ 1.94 | ||
| 12-4 | 09181-20164 Shim (0.90)(NLA)
SKU: 09181-20164 Weight: 0.060000 Brand: Price: $ 2.07 |
Shim (0.90)(NLA) | 1 | $ 2.07 | ||
| 12-5 | 09181-20167 Shim (1.00)
SKU: 09181-20167 Weight: 0.200000 Brand: Price: $ 2.62 |
Shim (1.00) | 1 | $ 2.62 | ||
| 13-1 | 09181-20162 Shim (0.80) (NLA)
SKU: 09181-20162 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.80) (NLA) | 1 | $ 1.94 | FWD Gear | |
| 20 | 57632-97L00 Push Pin
SKU: 57632-97L00 Weight: 0.060000 Brand: Price: $ 4.27 |
Push Pin | 1 | $ 4.27 | ||
| 13-2 | 09181-20164 Shim (0.90)(NLA)
SKU: 09181-20164 Weight: 0.060000 Brand: Price: $ 2.07 |
Shim (0.90)(NLA) | 1 | $ 2.07 | ||
| 13-3 | 09181-20167 Shim (1.00)
SKU: 09181-20167 Weight: 0.200000 Brand: Price: $ 2.62 |
Shim (1.00) | 1 | $ 2.62 | ||
| 13-4 | 09181-20172 Shim (1.10) (NLA)
SKU: 09181-20172 Weight: 0.100000 Brand: Price: $ 1.07 |
Shim (1.10) (NLA) | 1 | $ 1.07 | ||
| 13-5 | 09181-20176 Shim (1.20) (NLA)
SKU: 09181-20176 Weight: 0.100000 Brand: Price: $ 1.07 |
Shim (1.20) (NLA) | 1 | $ 1.07 | ||
| 14 | 57611-91J10 Propeller Shaft Assembly
SKU: 57611-91J10 Weight: 5.000000 Brand: Price: $ 87.54 |
Propeller Shaft Assembly | 1 | $ 87.54 | ||
| 15 | 57621-986L0 Clutch Dog Shifter
SKU: 57621-986L0 Weight: 0.500000 Brand: Price: $ 27.81 |
Clutch Dog Shifter | 1 | $ 27.81 | ||
| 16 | 09202-04016 Pin
SKU: 09202-04016 Weight: 0.100000 Brand: Price: $ 1.62 |
Pin | 1 | $ 1.62 | ||
| 17 | 09440-05039 Spring
SKU: 09440-05039 Weight: 0.100000 Brand: Price: $ 1.85 |
Spring | 1 | $ 1.85 | ||
| 18 | 09440-24007 Clutch Dog Spring (NLA)
SKU: 09440-24007 Weight: 0.100000 Brand: Price: $ 1.14 |
Clutch Dog Spring (NLA) | 1 | $ 1.14 | ||
| 19 | 57631-98601 Push Rod
SKU: 57631-98601 Weight: 0.060000 Brand: Price: $ 9.37 |
Push Rod | 1 | $ 9.37 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
