Suzuki DF 4 Parts Listings - 2012
S/N 00402F-210001 to 00402F-21XXXX

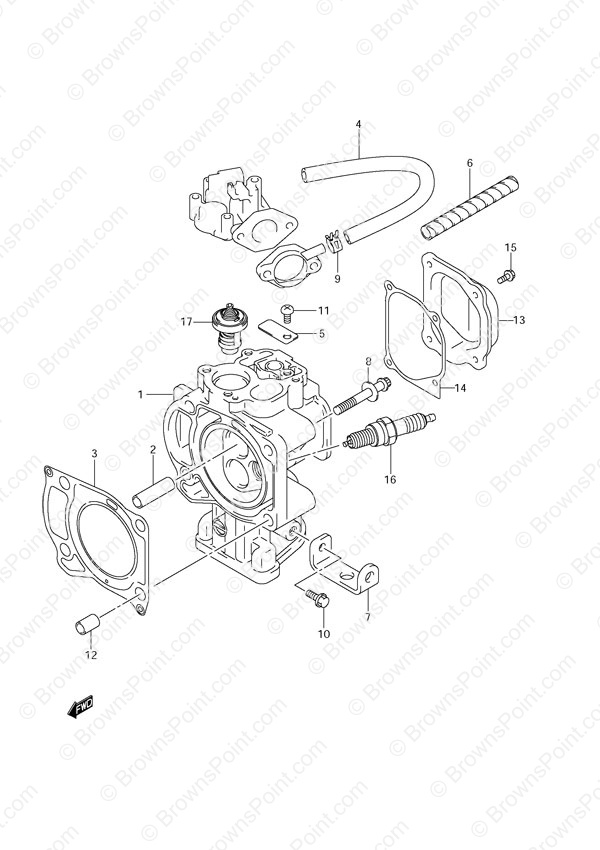

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 11114-90980 Valve Guide
SKU: 11114-90980 Weight: 0.060000 Brand: Price: $ 12.70 |
Valve Guide | 1 | $ 12.70 | Optional | |
| 3 | 11141-91JL0 Cylinder Head Gasket
SKU: 11141-91JL0 Weight: 0.060000 Brand: Price: $ 28.80 |
Cylinder Head Gasket | 1 | $ 28.80 | ||
| 4 | 11174-91J00 Breather Hose (NLA)
SKU: 11174-91J00 Weight: 0.100000 Brand: Price: $ 2.87 |
Breather Hose (NLA) | 1 | $ 2.87 | ||
| 5 | 11452-91J00 Reed Valve
SKU: 11452-91J00 Weight: 0.100000 Brand: Price: $ 3.00 |
Reed Valve | 1 | $ 3.00 | ||
| 6 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->180 | |
| 7 | 61827-91J00 Lower Cover Holder (NLA)
SKU: 61827-91J00 Weight: 0.100000 Brand: Price: $ 10.98 |
Lower Cover Holder (NLA) | 1 | $ 10.98 | ||
| 8 | 11117-91JL0 Cylinder Head Bolt
SKU: 11117-91JL0 Weight: 0.100000 Brand: Price: $ 8.52 |
Cylinder Head Bolt | 4 | $ 8.52 | ||
| 9 | 09401-11424 Clip
SKU: 09401-11424 Weight: 0.000000 Brand: Price: $ 1.87 |
Clip | 1 | $ 1.87 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 12 | 04211-11169 PIN 11X16
SKU: 04211-11169 Weight: 0.100000 Brand: Price: $ 1.78 |
PIN 11X16 | 2 | $ 1.78 | ||
| 13 | 11171-91J00 Cylinder Head Cover (NLA)
SKU: 11171-91J00 Weight: 0.100000 Brand: Price: $ 21.09 |
Cylinder Head Cover (NLA) | 1 | $ 21.09 | ||
| 14 | 11189-91J00 Cylinder Head Cover Gasket
SKU: 11189-91J00 Weight: 0.060000 Brand: Price: $ 8.34 |
Cylinder Head Cover Gasket | 1 | $ 8.34 | ||
| 15 | 09103-06120 Bolt (6x12) (NLA)
SKU: 09103-06120 Weight: 0.100000 Brand: Price: $ 0.59 |
Bolt (6x12) (NLA) | 4 | $ 0.59 | ||
| 16 | 09482-00L04 NGK CPR6EA-9 Spark Plug
SKU: 09482-00L04 Weight: 0.187500 Brand: Price: $ 12.03 |
NGK CPR6EA-9 Spark Plug | 1 | $ 12.03 | ||
| 17 | 17670-91J11 Thermostat (50c)
SKU: 17670-91J11 Weight: 0.125000 Brand: Price: $ 56.84 |
Thermostat (50c) | 1 | $ 56.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
