Suzuki DF 2.5 Parts Listings - 2012
S/N 00252F-210001 to 00252F-21XXXX

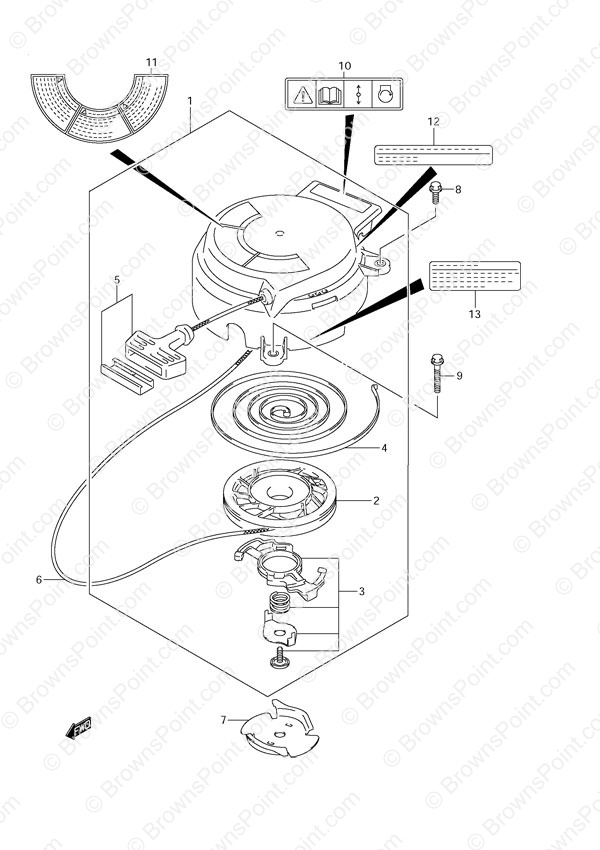

Fig. 8 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-97JM0 Recoil Starter Assembly
SKU: 18100-97JM0 Weight: 2.000000 Brand: Price: $ 141.24 |
Recoil Starter Assembly | 1 | $ 141.24 | ||
| 2 | 18120-97J00 Reel (NLA)
SKU: 18120-97J00 Weight: 0.150000 Brand: Price: $ 16.26 |
Reel (NLA) | 1 | $ 16.26 | ||
| 3 | 18130-97J00 Ratchet Set
SKU: 18130-97J00 Weight: 0.250000 Brand: Price: $ 13.12 |
Ratchet Set | 1 | $ 13.12 | ||
| 4 | 18142-04410 Spiral Spring
SKU: 18142-04410 Weight: 0.150000 Brand: Price: $ 24.45 |
Spiral Spring | 1 | $ 24.45 | ||
| 5 | 18210-97J00 Starter Grip
SKU: 18210-97J00 Weight: 0.250000 Brand: Price: $ 12.30 |
Starter Grip | 1 | $ 12.30 | ||
| 6 | 99000-81157-50M Rope (NLA)
SKU: 99000-81157-50M Weight: 0.100000 Brand: Price: $ 182.62 |
Rope (NLA) | 1 | $ 182.62 | Opt: L:50000->1220 | |
| 7 | 18211-97J00 Starter Pulley (NLA)
SKU: 18211-97J00 Weight: 0.100000 Brand: Price: $ 11.70 |
Starter Pulley (NLA) | 1 | $ 11.70 | ||
| 8 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 9 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.97 |
BOLT | 2 | $ 2.97 | ||
| 10 | 69711-91J10 Label S.I.G.P.
SKU: 69711-91J10 Weight: 0.100000 Brand: Price: $ 6.06 |
Label S.I.G.P. | 1 | $ 6.06 | ||
| 11 | 61472-93E20 Recoil Starter Label (NLA)
SKU: 61472-93E20 Weight: 0.125000 Brand: Price: $ 6.11 |
Recoil Starter Label (NLA) | 1 | $ 6.11 | ||
| 12 | 61493-97J00 Clearance Label (NLA)
SKU: 61493-97J00 Weight: 0.100000 Brand: Price: $ 5.63 |
Clearance Label (NLA) | 1 | $ 5.63 | ||
| 13 | 61494-97J00 Oil Label (NLA)
SKU: 61494-97J00 Weight: 0.125000 Brand: Price: $ 5.63 |
Oil Label (NLA) | 1 | $ 5.63 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
