Suzuki DF 250S Parts Listings 2008 to S/N 25004F-11XXXX

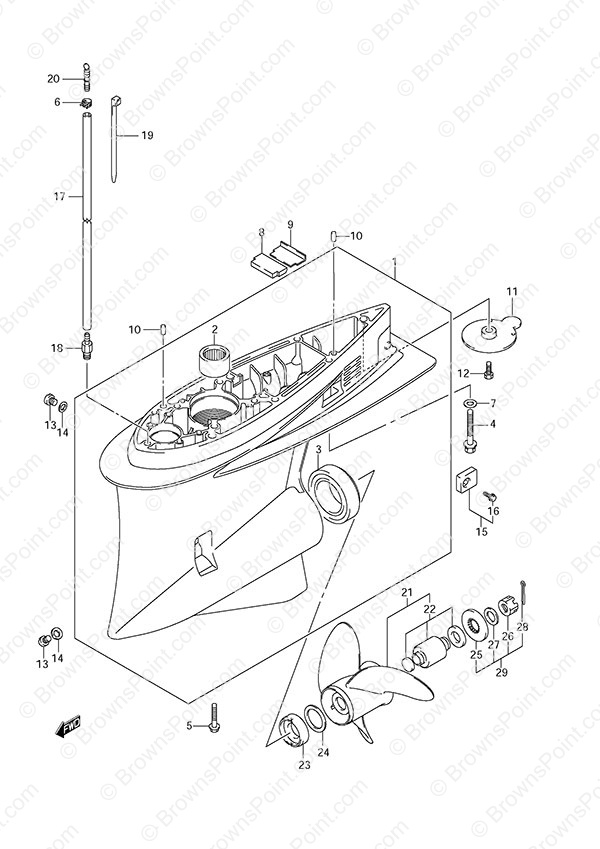

Fig. 49 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-98J01-0EP Gear Case Housing
SKU: 55110-98J01-0EP Weight: 41.620000 Brand: Price: $ 2,377.75 |
Gear Case Housing | 1 | $ 2,377.75 | ||
| 2 | 09263-36004 Pinion Bearing (36x51x32)
SKU: 09263-36004 Weight: 0.500000 Brand: Price: $ 253.43 |
Pinion Bearing (36x51x32) | 1 | $ 253.43 | ||
| 3 | 09265-50001 Bearing (50x90x32)
SKU: 09265-50001 Weight: 2.000000 Brand: Price: $ 138.71 |
Bearing (50x90x32) | 1 | $ 138.71 | ||
| 4 | 09100-12052 Bolt (12x70)
SKU: 09100-12052 Weight: 0.160000 Brand: Price: $ 11.80 |
Bolt (12x70) | 1 | $ 11.80 | ||
| 5 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 6 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 7 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 9 | 55333-98J00 Exhaust Seal Plate
SKU: 55333-98J00 Weight: 0.060000 Brand: Price: $ 15.80 |
Exhaust Seal Plate | 1 | $ 15.80 | ||
| 10 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 11 | 55125-98J10 Trim Tab
SKU: 55125-98J10 Weight: 0.100000 Brand: Price: $ 29.98 |
Trim Tab | 1 | $ 29.98 | ||
| 12 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 13 | 55128-93J10 Drain Plug
SKU: 55128-93J10 Weight: 0.060000 Brand: Price: $ 5.92 |
Drain Plug | 2 | $ 5.92 | ||
| 14 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 2 | $ 2.23 | ||
| 15 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 2 | $ 8.74 | ||
| 16 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 17 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1700 | |
| 18 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 19 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 20 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 21-1 | 990C0-00810-17P S/S Watergrip Propeller 3x16x17
SKU: 990C0-00810-17P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x17 | 1 | $ 696.48 | ||
| 21-2 | 990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2
SKU: 990C0-00810-185 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x18-1/2 | 1 | $ 696.48 | ||
| 21-3 | 990C0-00810-20P S/S Watergrip Propeller 3x16x20
SKU: 990C0-00810-20P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x20 | 1 | $ 696.48 | ||
| 21-4 | 990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2
SKU: 990C0-00810-215 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x21-1/2 | 1 | $ 696.48 | ||
| 21-5 | 990C0-00810-23P S/S Watergrip Propeller 3x16x23
SKU: 990C0-00810-23P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x23 | 1 | $ 696.48 | ||
| 21-6 | 990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2
SKU: 990C0-00810-245 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x24-1/2 | 1 | $ 696.48 | ||
| 21-7 | 990C0-00810-26P S/S Watergrip Propeller 3x16x26
SKU: 990C0-00810-26P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x26 | 1 | $ 696.48 | ||
| 21-8 | 990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2
SKU: 990C0-00810-275 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x27-1/2 | 1 | $ 696.48 | ||
| 22 | 58105-93J00 Propeller Bushing
SKU: 58105-93J00 Weight: 2.000000 Brand: Price: $ 142.52 |
Propeller Bushing | 1 | $ 142.52 | ||
| 23-1 | 57632-93J21 Propeller Stopper
SKU: 57632-93J21 Weight: 0.700000 Brand: Price: $ 123.76 |
Propeller Stopper | 1 | $ 123.76 | ||
| 23-2 | 57632-93J21 Propeller Stopper
SKU: 57632-93J21 Weight: 0.700000 Brand: Price: $ 123.76 |
Propeller Stopper | 1 | $ 123.76 | S/N 010046 Newer | |
| 24 | 09160-37006 Washer
SKU: 09160-37006 Weight: 0.060000 Brand: Price: $ 9.16 |
Washer | 1 | $ 9.16 | ||
| 25 | 57633-87D30 Propeller Nut Spacer
SKU: 57633-87D30 Weight: 0.500000 Brand: Price: $ 20.99 |
Propeller Nut Spacer | 1 | $ 20.99 | ||
| 26 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 27 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 28 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 29 | 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6
SKU: 57630-92E00 Weight: 0.440000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DF150/175 DFV6 DTV6 | 1 | $ 34.42 | Optional | |
| 30 | 25700-98J01 Gear Case Seal Kit - DF 250S/DF300
SKU: 25700-98J01 Weight: 0.250000 Brand: Price: $ 34.42 |
Gear Case Seal Kit - DF 250S/DF300 | 1 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
