Suzuki DF 250 Parts Listings 2004 to S/N 25003F-11XXXX 2004 to S/N 25003Z-11XXXX

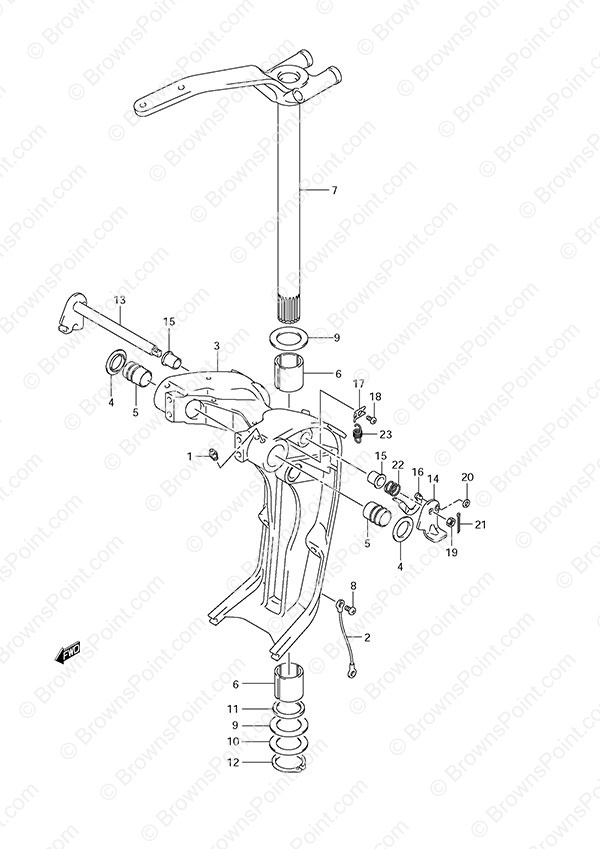

Fig. 38 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 5 | $ 3.36 | ||
| 1-2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | DF250T: S/N 511668 Newer DF250Z: S/N 510529 Newer | |
| 2 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Mount Bracket | |
| 3-1 | 43100-93813-0EP Swivel Bracket Set
SKU: 43100-93813-0EP Weight: 20.000000 Brand: Price: $ 830.48 |
Swivel Bracket Set | 1 | $ 830.48 | Contents: Swivel Bracket Clamp Shaft Swivel Bushing (2) Clamp to Swivel Lead Clamp to Swivel Lead Screw (2) | |
| 3-2 | 43111-93J24-0EP Swivel Bracket
SKU: 43111-93J24-0EP Weight: 20.000000 Brand: Price: $ 996.03 |
Swivel Bracket | 1 | $ 996.03 | DF250T: S/N 680339 Newer DF250Z: S/N 680144 Newer | |
| 4 | 43114-93J00 Swivel to Clamp Bracket Washer
SKU: 43114-93J00 Weight: 0.060000 Brand: Price: $ 5.77 |
Swivel to Clamp Bracket Washer | 2 | $ 5.77 | ||
| 5-1 | 43211-87D00 Clamp Shaft Swivel Bushing
SKU: 43211-87D00 Weight: 0.060000 Brand: Price: $ 7.94 |
Clamp Shaft Swivel Bushing | 2 | $ 7.94 | ||
| 5-2 | 43211-93J11 Clamp Shaft Swivel Bushing
SKU: 43211-93J11 Weight: 0.060000 Brand: Price: $ 7.05 |
Clamp Shaft Swivel Bushing | 2 | $ 7.05 | DF250T: S/N 511668 Newer DF250Z: S/N 510529 7 Newer | |
| 6 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 7 | 43750-93J02-0EP Steering Bracket
SKU: 43750-93J02-0EP Weight: 20.000000 Brand: Price: $ 921.28 |
Steering Bracket | 1 | $ 921.28 | ||
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 2 | $ 3.56 | ||
| 10 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 0 | $ 3.83 | ||
| 11 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 12 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 13-1 | 41200-93811 Tilt Lever & Link Set
SKU: 41200-93811 Weight: 1.250000 Brand: Price: $ 146.81 |
Tilt Lever & Link Set | 1 | $ 146.81 | Includes Ref# 14-1 & 16-1 | |
| 13-2 | 41220-93J11 Tilt Lock Lever
SKU: 41220-93J11 Weight: 0.850000 Brand: Price: $ 85.09 |
Tilt Lock Lever | 1 | $ 85.09 | DF250T: S/N 981146 Newer DF250Z: S/N 980460 Newer | |
| 14-1 | 41200-93811 Tilt Lever & Link Set
SKU: 41200-93811 Weight: 1.250000 Brand: Price: $ 146.81 |
Tilt Lever & Link Set | 1 | $ 146.81 | Includes Ref# 13-1 & 16-1 | |
| 14-2 | 41234-93J11 Port Tilt Lock Lever
SKU: 41234-93J11 Weight: 0.300000 Brand: Price: $ 38.45 |
Port Tilt Lock Lever | 1 | $ 38.45 | DF250T: S/N 981146 Newer DF250Z: S/N 980460 Newer | |
| 15 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 2 | $ 4.62 | ||
| 16-1 | 41230-95E00 Tilt Lock Lever Link
SKU: 41230-95E00 Weight: 0.125000 Brand: Price: $ 23.62 |
Tilt Lock Lever Link | 1 | $ 23.62 | ||
| 16-2 | 41230-96J00 Tilt Lock Lever Link
SKU: 41230-96J00 Weight: 0.100000 Brand: Price: $ 24.83 |
Tilt Lock Lever Link | 1 | $ 24.83 | DF250T: S/N 981146 Newer DF250Z: S/N 980460 Newer | |
| 17 | 41233-95E10 Tilt Lock Spring Bracket
SKU: 41233-95E10 Weight: 0.060000 Brand: Price: $ 10.26 |
Tilt Lock Spring Bracket | 1 | $ 10.26 | ||
| 18 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 19 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 20 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 21 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 22 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 23 | 09443-10043 Tilt Lock Spring
SKU: 09443-10043 Weight: 0.125000 Brand: Price: $ 2.55 |
Tilt Lock Spring | 1 | $ 2.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
