Suzuki DF 250 Parts Listings 2004 to S/N 25003F-11XXXX 2004 to S/N 25003Z-11XXXX

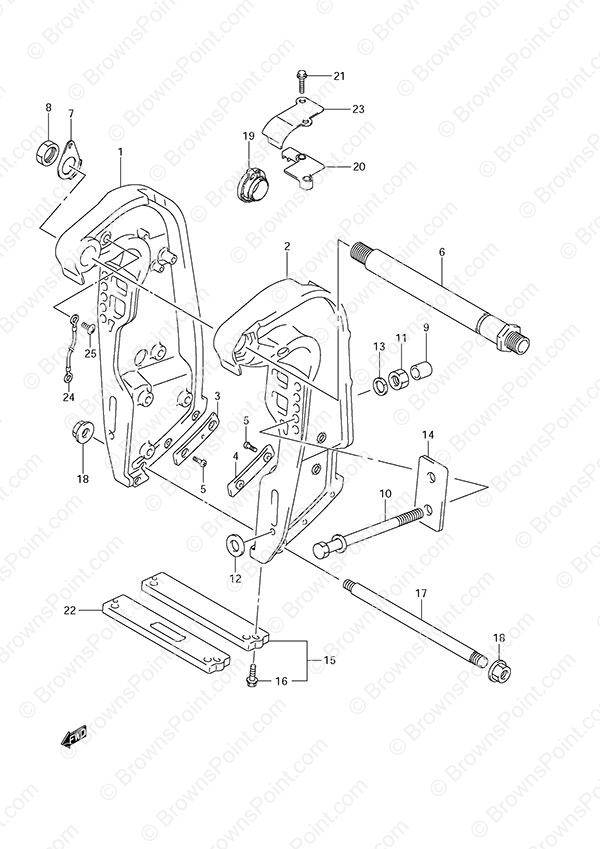

Fig. 36 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-93J04-0EP Clamp Bracket - Starboard (NLA)
SKU: 41111-93J04-0EP Weight: 20.000000 Brand: Price: $ 458.46 |
Clamp Bracket - Starboard (NLA) | 1 | $ 458.46 | Requires Ref# 3 26 | |
| 1-2 | 41111-93J04-0EP Clamp Bracket - Starboard (NLA)
SKU: 41111-93J04-0EP Weight: 20.000000 Brand: Price: $ 458.46 |
Clamp Bracket - Starboard (NLA) | 1 | $ 458.46 | Requires Ref# 3 2005 to 2006 | |
| 1-3 | 41111-93J16-0EP BRACKET,CLAMP S
SKU: 41111-93J16-0EP Weight: 0.000000 Brand: Price: $ 500.15 |
BRACKET,CLAMP S | 1 | $ 500.15 | Requires Ref# 3 DF250T: S/N 680339 Newer DF250Z: S/N 680144 Newer | |
| 1-4 | 41111-93J16-0EP BRACKET,CLAMP S
SKU: 41111-93J16-0EP Weight: 0.000000 Brand: Price: $ 500.15 |
BRACKET,CLAMP S | 1 | $ 500.15 | DF250T: S/N 980375 Newer DF250Z: S/N 980111 Newer | |
| 2-1 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | Requires Ref# 4 26 | |
| 2-2 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | DF250T: S/N 421423 Newer DF250Z: S/N 421140 Newer | |
| 2-3 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | 2005 to 2006 | |
| 2-4 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | Requires Ref# 4 DF250T: S/N 680590 Newer DF250Z: S/N 680243 Newer | |
| 2-5 | 41121-93J08-0EP Clamp Bracket - Port
SKU: 41121-93J08-0EP Weight: 20.000000 Brand: Price: $ 608.93 |
Clamp Bracket - Port | 1 | $ 608.93 | DF250T: S/N 980375 Newer DF250Z: S/N 980111 Newer | |
| 3 | 41117-93J02 Clamp Bracket Lower Starboard Plate
SKU: 41117-93J02 Weight: 0.080000 Brand: Price: $ 14.12 |
Clamp Bracket Lower Starboard Plate | 1 | $ 14.12 | DF250T: S/N 421423 Newer DF250Z: S/N 421140 Newer | |
| 4 | 41122-93J02 Clamp Bracket Lower Port Plate
SKU: 41122-93J02 Weight: 0.060000 Brand: Price: $ 15.30 |
Clamp Bracket Lower Port Plate | 1 | $ 15.30 | DF250T: S/N 421423 Newer DF250Z: S/N 421140 Newer | |
| 5 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 4 | $ 1.96 | DF250T: S/N 421423 Newer DF250Z: S/N 421140 Newer | |
| 6-1 | 41130-93J12 Clamp Bracket Shaft
SKU: 41130-93J12 Weight: 1.500000 Brand: Price: $ 204.39 |
Clamp Bracket Shaft | 1 | $ 204.39 | ||
| 6-2 | 41130-93J12 Clamp Bracket Shaft
SKU: 41130-93J12 Weight: 1.500000 Brand: Price: $ 204.39 |
Clamp Bracket Shaft | 1 | $ 204.39 | Requires Ref# 27 DF250T: S/N 510954 Newer DF250Z: S/N 510251 Newer | |
| 6-3 | 41130-93J12 Clamp Bracket Shaft
SKU: 41130-93J12 Weight: 1.500000 Brand: Price: $ 204.39 |
Clamp Bracket Shaft | 1 | $ 204.39 | DF250T: S/N 511668 Newer DF250Z: S/N 510529 Newer | |
| 7-1 | 41135-93J00 Clamp Bracket Shaft Washer
SKU: 41135-93J00 Weight: 0.060000 Brand: Price: $ 6.66 |
Clamp Bracket Shaft Washer | 1 | $ 6.66 | ||
| 7-2 | 41135-93J11 Clamp Bracket Shaft Washer
SKU: 41135-93J11 Weight: 0.100000 Brand: Price: $ 4.86 |
Clamp Bracket Shaft Washer | 1 | $ 4.86 | 2006 Newer | |
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 41153-93J00 Transom Bolt Cap
SKU: 41153-93J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Transom Bolt Cap | 6 | $ 4.39 | ||
| 10-1 | 09100-12086 Transom Bolt (12.7x150)
SKU: 09100-12086 Weight: 0.250000 Brand: Price: $ 27.84 |
Transom Bolt (12.7x150) | 6 | $ 27.84 | ||
| 10-2 | 09100-12092 Transom Bolt (12.7x75)
SKU: 09100-12092 Weight: 0.125000 Brand: Price: $ 21.10 |
Transom Bolt (12.7x75) | 6 | $ 21.10 | Optional | |
| 10-3 | 09100-12085 Transom Bolt (12.7x115)
SKU: 09100-12085 Weight: 0.100000 Brand: Price: $ 23.74 |
Transom Bolt (12.7x115) | 6 | $ 23.74 | Optional | |
| 11 | 09159-12062 Transom Nut
SKU: 09159-12062 Weight: 0.060000 Brand: Price: $ 8.34 |
Transom Nut | 6 | $ 8.34 | ||
| 12 | 09160-13022 Washer
SKU: 09160-13022 Weight: 0.125000 Brand: Price: $ 13.63 |
Washer | 4 | $ 13.63 | ||
| 13 | 09160-13021 Washer
SKU: 09160-13021 Weight: 0.125000 Brand: Price: $ 10.66 |
Washer | 6 | $ 10.66 | ||
| 14 | 41155-93J02 Transom Plate
SKU: 41155-93J02 Weight: 0.250000 Brand: Price: $ 22.18 |
Transom Plate | 2 | $ 22.18 | ||
| 15 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 16 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 17 | 45421-87D03 Tilt Lock Pin
SKU: 45421-87D03 Weight: 0.750000 Brand: Price: $ 23.88 |
Tilt Lock Pin | 1 | $ 23.88 | ||
| 18 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | ||
| 19 | 48140-93J01 Tilt Limit Switch Cam
SKU: 48140-93J01 Weight: 0.060000 Brand: Price: $ 15.32 |
Tilt Limit Switch Cam | 1 | $ 15.32 | ||
| 20 | 48144-93J00 Tilt Limit Switch Holder
SKU: 48144-93J00 Weight: 0.060000 Brand: Price: $ 10.46 |
Tilt Limit Switch Holder | 1 | $ 10.46 | ||
| 21-1 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 21-2 | 09103-06278 Bolt (6x25)
SKU: 09103-06278 Weight: 0.060000 Brand: Price: $ 2.37 |
Bolt (6x25) | 2 | $ 2.37 | DF250T: S/N 511423 Newer DF250Z: S/N 510474 Newer | |
| 22 | 55321-94910 Magnesium Anode
SKU: 55321-94910 Weight: 0.300000 Brand: Price: $ 45.82 |
Magnesium Anode | 1 | $ 45.82 | Opt: Fresh Water Use Only | |
| 23 | 48145-93J00 Tilt Limit Switch Cover
SKU: 48145-93J00 Weight: 0.060000 Brand: Price: $ 10.38 |
Tilt Limit Switch Cover | 1 | $ 10.38 | DF250T: S/N 511423 Newer DF250Z: S/N 510474 Newer | |
| 24 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Clamp to Swivel DF250T: S/N 680339 Newer DF250Z: S/N 680144 Newer | |
| 25 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | DF250T: S/N 680339 Newer DF250Z: S/N 680144 Newer | |
| 26 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | Not Shown | |
| 27 | 43211-93J11 Clamp Shaft Swivel Bushing
SKU: 43211-93J11 Weight: 0.060000 Brand: Price: $ 7.05 |
Clamp Shaft Swivel Bushing | 2 | $ 7.05 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
