Suzuki DF 60A Parts Listings - 2017
S/N 06002F-710001 to 06002F-71XXXX

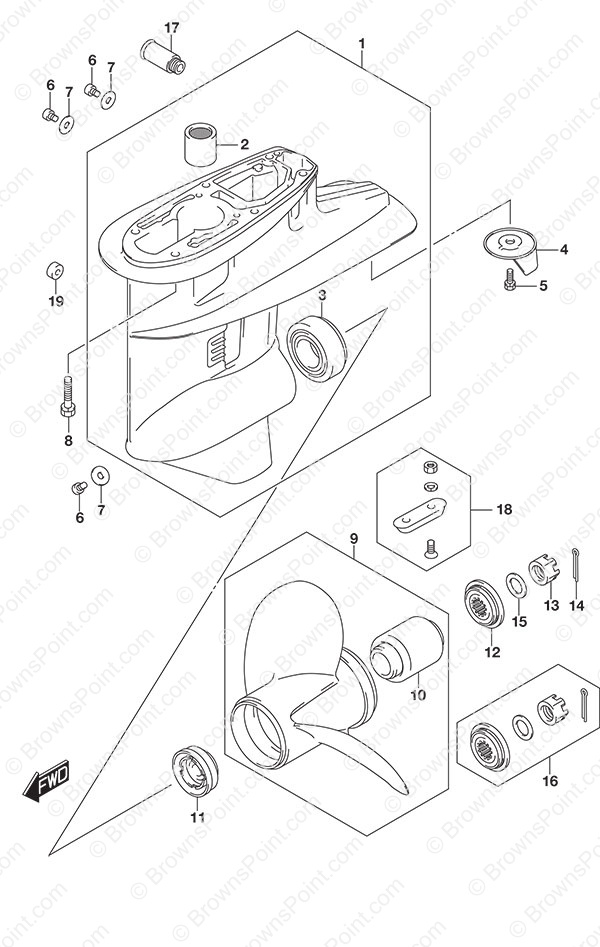

Fig. 407A - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 55100-87J50-YAY Gear Case Housing
SKU: 55100-87J50-YAY Weight: 14.500000 Brand: Price: $ 720.94 |
Gear Case Housing | 1 | $ 720.94 | Black | |
| 1-2 | 55100-87J50-Y5S Gear Case Housing
SKU: 55100-87J50-Y5S Weight: 14.500000 Brand: Price: $ 745.84 |
Gear Case Housing | 1 | $ 745.84 | White | |
| 2 | 09263-22039 Bearing (22x30x30)
SKU: 09263-22039 Weight: 0.140000 Brand: Price: $ 75.96 |
Bearing (22x30x30) | 1 | $ 75.96 | ||
| 3 | 09265-30004 Bearing (30x62x17.25)
SKU: 09265-30004 Weight: 0.540000 Brand: Price: $ 59.58 |
Bearing (30x62x17.25) | 1 | $ 59.58 | ||
| 4 | 55125-95500 Trim Tab Zinc Anode
SKU: 55125-95500 Weight: 0.400000 Brand: Price: $ 19.74 |
Trim Tab Zinc Anode | 1 | $ 19.74 | ||
| 5 | 09117-08109 Bolt (8x16)
SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
| 6 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 7 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 8 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 6 | $ 4.89 | ||
| 9-1 | 58100-88L03-019 S900 Propeller 3x11-1/2x9 *
SKU: 58100-88L03-019 Weight: 5.000000 Brand: Price: $ 167.91 |
S900 Propeller 3x11-1/2x9 * | 1 | $ 167.91 | ||
| 9-2 | 58100-88LD0-019 S1000 Propeller 3x11-1/2x10
SKU: 58100-88LD0-019 Weight: 5.000000 Brand: Price: $ 182.95 |
S1000 Propeller 3x11-1/2x10 | 1 | $ 182.95 | ||
| 9-3 | 58100-88LE0-019 S1100 Propeller 3x11-1/2x11
SKU: 58100-88LE0-019 Weight: 5.000000 Brand: Price: $ 188.66 |
S1100 Propeller 3x11-1/2x11 | 1 | $ 188.66 | ||
| 9-4 | 58100-88LA0-019 S1200 Propeller 3x11-5/8x12
SKU: 58100-88LA0-019 Weight: 5.000000 Brand: Price: $ 201.26 |
S1200 Propeller 3x11-5/8x12 | 1 | $ 201.26 | ||
| 9-5 | 58100-88LB0-019 S1301 Propeller 3x11-1/2x13
SKU: 58100-88LB0-019 Weight: 5.000000 Brand: Price: $ 188.27 |
S1301 Propeller 3x11-1/2x13 | 1 | $ 188.27 | ||
| 9-6 | 58100-88LQ0-019 14P Propeller 3X11-3/8X14
SKU: 58100-88LQ0-019 Weight: 0.000000 Brand: Price: $ 171.14 |
14P Propeller 3X11-3/8X14 | 1 | $ 171.14 | ||
| 9-7 | 58100-88LR0-019 15P DF40A/50A/6
SKU: 58100-88LR0-019 Weight: 0.000000 Brand: Price: $ 166.16 |
15P DF40A/50A/6 | 1 | $ 166.16 | ||
| 9-8 | 58100-88L72-019 S1600 Propeller 3x11-1/8x16
SKU: 58100-88L72-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1600 Propeller 3x11-1/8x16 | 1 | $ 171.14 | ||
| 9-9 | 58100-88LF0-019 S1700 Propeller 3x11x17
SKU: 58100-88LF0-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1700 Propeller 3x11x17 | 1 | $ 171.14 | ||
| 10 | 58120-88L01 Propeller Bushing
SKU: 58120-88L01 Weight: 0.500000 Brand: Price: $ 36.45 |
Propeller Bushing | 1 | $ 36.45 | ||
| 11 | 57632-95320 Propeller Stopper
SKU: 57632-95320 Weight: 0.440000 Brand: Price: $ 56.14 |
Propeller Stopper | 1 | $ 56.14 | ||
| 12 | 57633-94301 Propeller Nut Spacer
SKU: 57633-94301 Weight: 0.380000 Brand: Price: $ 16.59 |
Propeller Nut Spacer | 1 | $ 16.59 | ||
| 13 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 14 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 15 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 16 | 57630-94301 Propeller Hardware Kit DT40/DT55/DT65/
DF40/DF50/DF60A
SKU: 57630-94301 Weight: 0.540000 Brand: Price: $ 28.34 |
Propeller Hardware Kit DT40/DT55/DT65/ DF40/DF50/DF60A | 1 | $ 28.34 | Optional | |
| 17 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | Optional | |
| 18 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 19 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 20 | 25700-88L03 Gear Case Seal Kit DT40c - DF40 / DF50 / 60A
SKU: 25700-88L03 Weight: 0.250000 Brand: Price: $ 30.85 |
Gear Case Seal Kit DT40c - DF40 / DF50 / 60A | 1 | $ 30.85 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
