Suzuki DF 60A Parts Listings - 2017
S/N 06002F-710001 to 06002F-71XXXX
S/N 06003F-710001 to 06003F-71XXXX

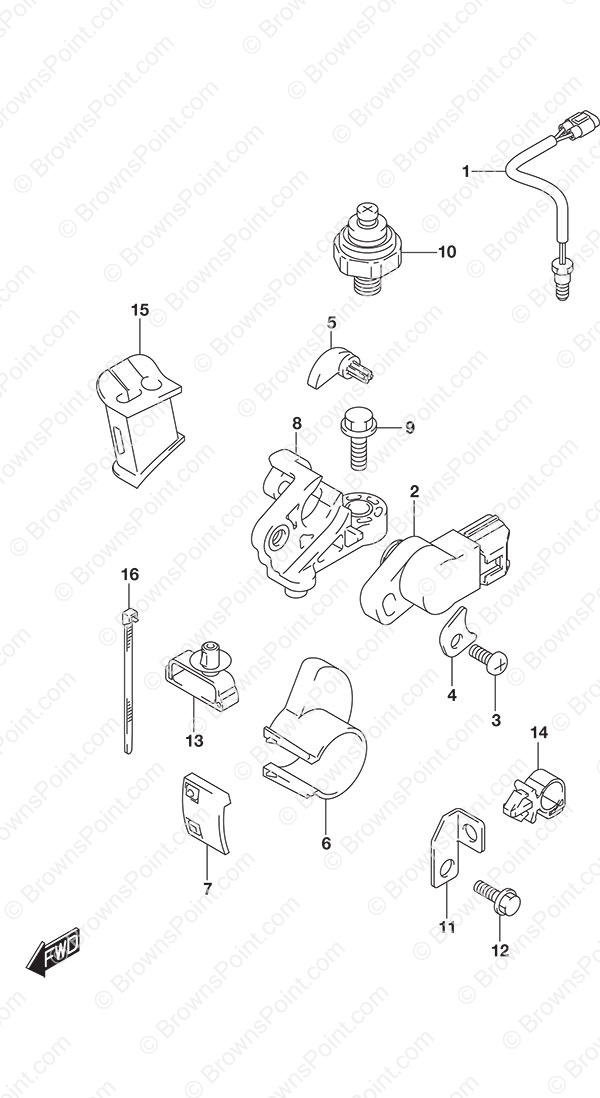

Fig. 315 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | ||
| 2 | 34840-98J11 Trim Sensor Assembly
SKU: 34840-98J11 Weight: 0.500000 Brand: Price: $ 132.01 |
Trim Sensor Assembly | 1 | $ 132.01 | ||
| 3 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 1 | $ 1.82 | ||
| 4 | 34846-87L00 Trim Sensor Washer
SKU: 34846-87L00 Weight: 0.060000 Brand: Price: $ 1.26 |
Trim Sensor Washer | 1 | $ 1.26 | ||
| 5 | 34841-87L10 Trim Sensor Lever
SKU: 34841-87L10 Weight: 0.200000 Brand: Price: $ 3.83 |
Trim Sensor Lever | 1 | $ 3.83 | ||
| 6 | 34842-88L10 Trim Sensor Upper Cam
SKU: 34842-88L10 Weight: 0.200000 Brand: Price: $ 5.69 |
Trim Sensor Upper Cam | 1 | $ 5.69 | ||
| 7 | 99103-11252 Trim Sensor Lower Cam
SKU: 99103-11252 Weight: 0.125000 Brand: Price: $ 3.89 |
Trim Sensor Lower Cam | 1 | $ 3.89 | ||
| 8 | 34845-88L10 Trim Sender Bracket
SKU: 34845-88L10 Weight: 0.250000 Brand: Price: $ 13.03 |
Trim Sender Bracket | 1 | $ 13.03 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 11 | 36617-88L00 Harness Bracket (NLA)
SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 1 | $ 3.47 | ||
| 12 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 13 | 09403-07340 Clamp
SKU: 09403-07340 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 | ||
| 14 | 09403-11321 Clamp
SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.40 |
Clamp | 1 | $ 3.40 | ||
| 15 | 36656-88L00 PTT Cable Grommet
SKU: 36656-88L00 Weight: 0.250000 Brand: Price: $ 5.75 |
PTT Cable Grommet | 1 | $ 5.75 | ||
| 16 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 17 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 18 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
