Suzuki DF 60A Parts Listings - 2017
S/N 06002F-710001 to 06002F-71XXXX
S/N 06003F-710001 to 06003F-71XXXX

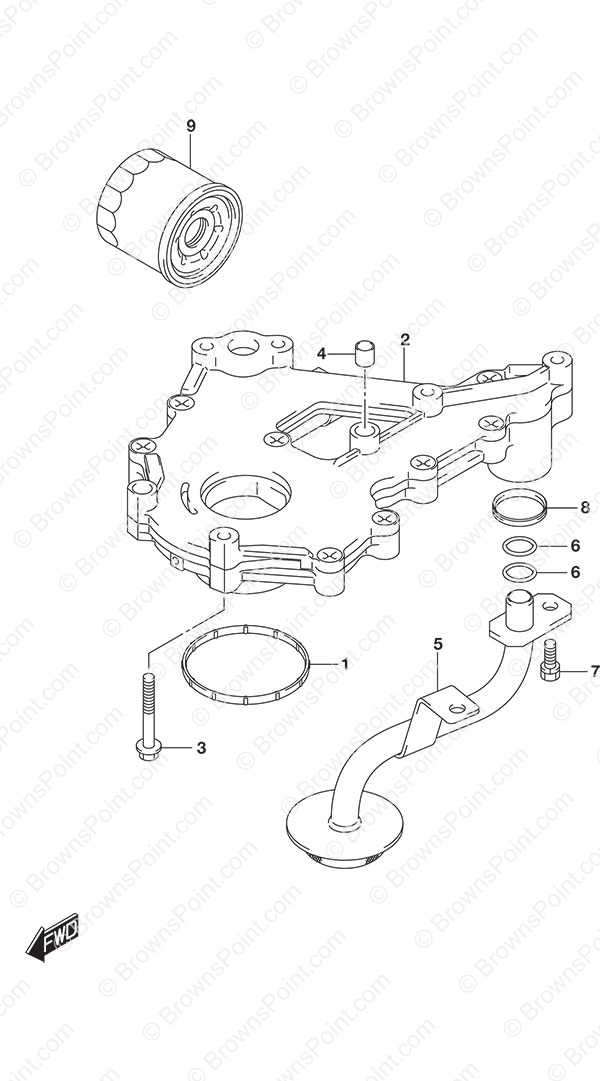

Fig. 175 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11433-88L00 Under Oil Seal Gasket
SKU: 11433-88L00 Weight: 0.250000 Brand: Price: $ 11.67 |
Under Oil Seal Gasket | 1 | $ 11.67 | ||
| 2 | 16400-88L00 Oil Pump Assembly
SKU: 16400-88L00 Weight: 5.000000 Brand: Price: $ 258.84 |
Oil Pump Assembly | 1 | $ 258.84 | ||
| 3 | 01547-0640A BOLT
SKU: 01547-0640A Weight: 0.250000 Brand: Price: $ 2.33 |
BOLT | 7 | $ 2.33 | ||
| 4 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 5 | 16520-88L00 Oil Pump Strainer
SKU: 16520-88L00 Weight: 1.000000 Brand: Price: $ 42.01 |
Oil Pump Strainer | 1 | $ 42.01 | ||
| 6 | 09280-12008 O-Ring
SKU: 09280-12008 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 2 | $ 2.80 | ||
| 7 | 01570-0616A BOLT
SKU: 01570-0616A Weight: 0.100000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
| 8 | 16519-87L00 Engine Holder Seal
SKU: 16519-87L00 Weight: 0.250000 Brand: Price: $ 5.55 |
Engine Holder Seal | 1 | $ 5.55 | ||
| 9 | 16510-87J02 Engine Oil Filter
SKU: 16510-87J02 Weight: 0.000000 Brand: Price: $ 14.89 |
Engine Oil Filter | 1 | $ 14.89 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
