Suzuki DF 250S Parts Listings 2008 to S/N 25004F-11XXXX

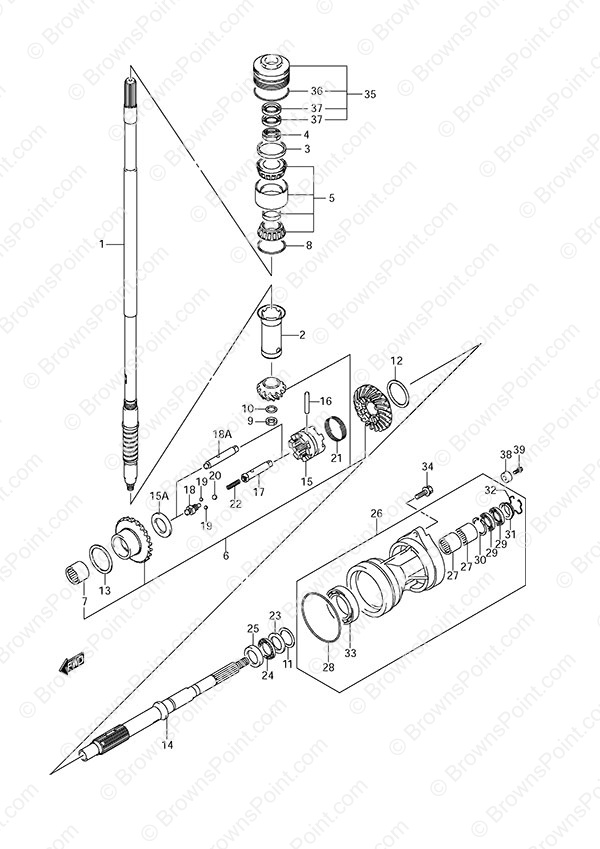

Fig. 29 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-98J22 Drive Shaft (L)
SKU: 57110-98J22 Weight: 20.000000 Brand: Price: $ 691.81 |
Drive Shaft (L) | 1 | $ 691.81 | ||
| 2 | 57133-98J00 Drive Shaft Collar
SKU: 57133-98J00 Weight: 0.100000 Brand: Price: $ 14.52 |
Drive Shaft Collar | 1 | $ 14.52 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-98880 Pinion & Gear Set
SKU: 57300-98880 Weight: 5.000000 Brand: Price: $ 1,453.59 |
Pinion & Gear Set | 1 | $ 1,453.59 | ||
| 7 | 09263-25067 Bearing (25x32x26)
SKU: 09263-25067 Weight: 0.200000 Brand: Price: $ 33.34 |
Bearing (25x32x26) | 1 | $ 33.34 | ||
| 8-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 8-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 8-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 8-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 8-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 8-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 8-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 8-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 8-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 8-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 9 | 09140-16026 Nut 16mm
SKU: 09140-16026 Weight: 0.060000 Brand: Price: $ 5.16 |
Nut 16mm | 1 | $ 5.16 | ||
| 10 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 11-1 | 09160-35015 Washer (35x46x0.60)
SKU: 09160-35015 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.60) | 1 | $ 7.36 | REV Prop Shaft | |
| 11-2 | 09160-35014 Washer (35x46x0.70)
SKU: 09160-35014 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.70) | 1 | $ 7.36 | ||
| 11-3 | 09160-35013 Washer (35x46x0.80)
SKU: 09160-35013 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.80) | 1 | $ 7.36 | ||
| 11-4 | 09160-35006 Washer (35x46x0.90)
SKU: 09160-35006 Weight: 0.100000 Brand: Price: $ 3.68 |
Washer (35x46x0.90) | 1 | $ 3.68 | ||
| 11-5 | 09160-35008 Washer (35x46x0.95)
SKU: 09160-35008 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x0.95) | 1 | $ 4.26 | ||
| 11-6 | 09160-35002 Washer (35x46x1.00)
SKU: 09160-35002 Weight: 0.060000 Brand: Price: $ 3.47 |
Washer (35x46x1.00) | 1 | $ 3.47 | ||
| 11-7 | 09160-35009 Washer (35x46x1.05)
SKU: 09160-35009 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x1.05) | 1 | $ 4.26 | ||
| 11-8 | 09160-35003 Washer (35x46x1.10)
SKU: 09160-35003 Weight: 0.060000 Brand: Price: $ 4.26 |
Washer (35x46x1.10) | 1 | $ 4.26 | ||
| 11-9 | 09160-35010 Washer (35x46x1.15)
SKU: 09160-35010 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (35x46x1.15) | 1 | $ 4.13 | ||
| 12-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | REV Gear | |
| 12-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 12-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 12-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 12-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 12-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 12-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 12-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 12-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 12-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 13-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | FWD Gear | |
| 13-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 13-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 13-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 13-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 13-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 13-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 13-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 13-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 13-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 14 | 57610-98J20 Propeller Shaft Assembly
SKU: 57610-98J20 Weight: 5.000000 Brand: Price: $ 550.86 |
Propeller Shaft Assembly | 1 | $ 550.86 | ||
| 15 | 57621-98J10 Clutch Dog Shifter
SKU: 57621-98J10 Weight: 1.200000 Brand: Price: $ 372.51 |
Clutch Dog Shifter | 1 | $ 372.51 | ||
| 15A | 09160-25080 Thrust Washer
SKU: 09160-25080 Weight: 0.100000 Brand: Price: $ 16.76 |
Thrust Washer | 1 | $ 16.76 | ||
| 16 | 09202-08011 Clutch Dog Shifter Pin
SKU: 09202-08011 Weight: 0.250000 Brand: Price: $ 13.70 |
Clutch Dog Shifter Pin | 1 | $ 13.70 | ||
| 17 | 57630-98810 Connector Pin Set
SKU: 57630-98810 Weight: 0.250000 Brand: Price: $ 42.22 |
Connector Pin Set | 1 | $ 42.22 | 2008 to 2009 | |
| 18 | 57632-98J00 Connector Pin No. 2 (NLA)
SKU: 57632-98J00 Weight: 0.100000 Brand: Price: $ 20.48 |
Connector Pin No. 2 (NLA) | 1 | $ 20.48 | 2008 to 2009 Use Ref# 17 | |
| 18A | 57631-98J10 Connector Pin
SKU: 57631-98J10 Weight: 0.200000 Brand: Price: $ 50.38 |
Connector Pin | 1 | $ 50.38 | 2010 Newer | |
| 19 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 20-1 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 1 | $ 1.87 | 2008 to 2009 | |
| 20-2 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | 2010 Newer | |
| 21 | 09440-56001 Clutch Dog Shifter Spring
SKU: 09440-56001 Weight: 0.187500 Brand: Price: $ 6.53 |
Clutch Dog Shifter Spring | 1 | $ 6.53 | ||
| 22 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 23 | 09160-30056 Washer (32x47x3)
SKU: 09160-30056 Weight: 0.062500 Brand: Price: $ 36.35 |
Washer (32x47x3) | 1 | $ 36.35 | ||
| 24 | 09269-30014 Thrust Bearing (30x47x2)
SKU: 09269-30014 Weight: 0.060000 Brand: Price: $ 13.67 |
Thrust Bearing (30x47x2) | 1 | $ 13.67 | ||
| 25 | 09160-30055 Washer (30x47x6)
SKU: 09160-30055 Weight: 0.062500 Brand: Price: $ 115.57 |
Washer (30x47x6) | 1 | $ 115.57 | ||
| 26 | 56120-98J01-0EP Propeller Shaft Bearing Housing
SKU: 56120-98J01-0EP Weight: 2.000000 Brand: Price: $ 417.56 |
Propeller Shaft Bearing Housing | 1 | $ 417.56 | ||
| 27 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 2 | $ 43.67 | ||
| 28 | 09280-00040 O-Ring
SKU: 09280-00040 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 1 | $ 7.36 | ||
| 29 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 30 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 31 | 56123-93J00 Oil Seal Protector
SKU: 56123-93J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Oil Seal Protector | 1 | $ 6.78 | ||
| 32 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 33 | 08113-62100 BEARING
SKU: 08113-62100 Weight: 0.100000 Brand: Price: $ 63.62 |
BEARING | 1 | $ 63.62 | ||
| 34 | 09116-10177 Bolt (10x35)
SKU: 09116-10177 Weight: 0.125000 Brand: Price: $ 7.48 |
Bolt (10x35) | 2 | $ 7.48 | ||
| 35 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 36 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 37 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 38 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 39 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 |
