Suzuki DF 60A Parts Listings - 2016
S/N 06002F-610001 to 06002F-61XXXX
S/N 06003F-610001 to 06003F-61XXXX

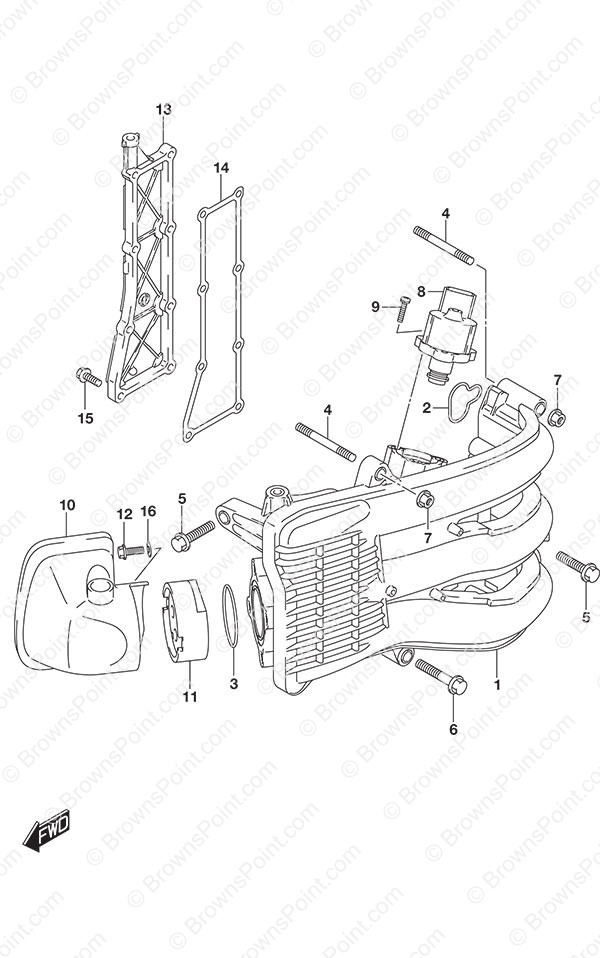

Fig. 124 - Intake Manifold/Silencer/Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-88L00 Intake Manifold
SKU: 13110-88L00 Weight: 5.000000 Brand: Price: $ 496.35 |
Intake Manifold | 1 | $ 496.35 | ||
| 2 | 13119-88L00 Intake Manifold Gasket
SKU: 13119-88L00 Weight: 0.250000 Brand: Price: $ 13.07 |
Intake Manifold Gasket | 3 | $ 13.07 | ||
| 3 | 13125-88L00 Throttle Body Gasket
SKU: 13125-88L00 Weight: 0.250000 Brand: Price: $ 15.80 |
Throttle Body Gasket | 1 | $ 15.80 | ||
| 4 | 01421-08607 STUD BOLT
SKU: 01421-08607 Weight: 0.100000 Brand: Price: $ 6.16 |
STUD BOLT | 2 | $ 6.16 | ||
| 5 | 01550-0830C Bolt
SKU: 01550-0830C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 6 | $ 1.80 | ||
| 6 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 1 | $ 3.48 | ||
| 7 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 | ||
| 8 | 18137-88L01 Replaced by 18137-88L02
SKU: 18137-88L01 Weight: 0.500000 Brand: Price: $ 298.54 |
Replaced by 18137-88L02 | 1 | $ 298.54 | ||
| 9 | 02112-34167 SCREW
SKU: 02112-34167 Weight: 0.060000 Brand: Price: $ 2.14 |
SCREW | 3 | $ 2.14 | ||
| 10 | 13810-88L00 Silencer
SKU: 13810-88L00 Weight: 0.500000 Brand: Price: $ 65.00 |
Silencer | 1 | $ 65.00 | ||
| 11 | 13813-88L01 Silencer Holder
SKU: 13813-88L01 Weight: 0.250000 Brand: Price: $ 5.83 |
Silencer Holder | 1 | $ 5.83 | ||
| 12 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.58 |
BOLT,HARNESS B | 1 | $ 1.58 | ||
| 13 | 14141-88L00 Exhaust Cover
SKU: 14141-88L00 Weight: 0.500000 Brand: Price: $ 87.73 |
Exhaust Cover | 1 | $ 87.73 | ||
| 14 | 14151-88L00 Exhaust Cover Gasket
SKU: 14151-88L00 Weight: 0.060000 Brand: Price: $ 8.36 |
Exhaust Cover Gasket | 1 | $ 8.36 | ||
| 15 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 8 | $ 1.68 | ||
| 16 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 1 | $ 1.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
