Suzuki DF 9.9B Parts Listings - 2019
S/N 00995F-910001 to 00995F-91XXXX

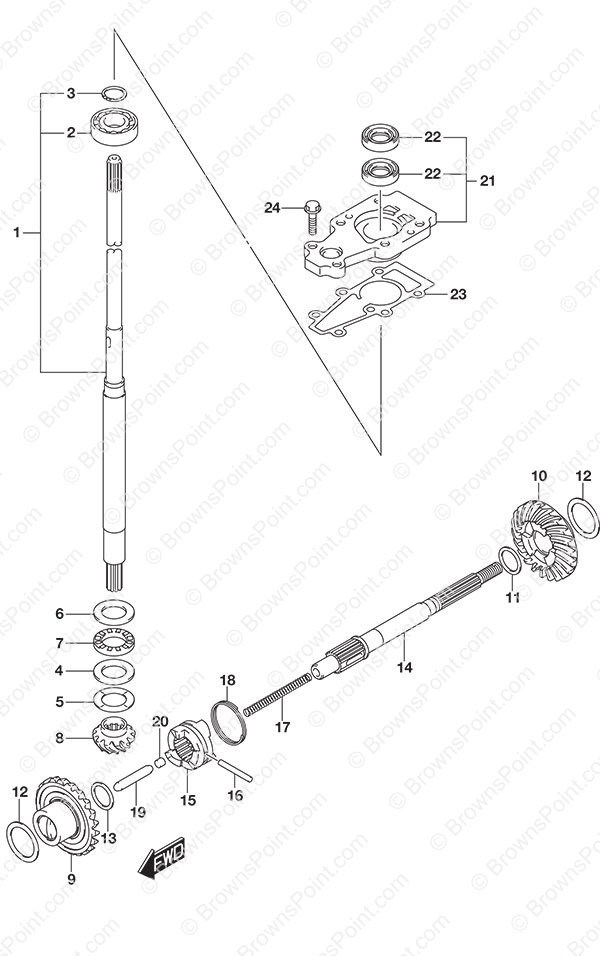

Fig. 220A - Transmission Manual Start
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57100-90L40 Drive Shaft Assembly (S)
SKU: 57100-90L40 Weight: 3.000000 Brand: Price: $ 273.85 |
Drive Shaft Assembly (S) | 1 | $ 273.85 | w/Transom (S) | |
| 1-2 | 57100-90L30 Drive Shaft Assembly (L)
SKU: 57100-90L30 Weight: 3.000000 Brand: Price: $ 160.80 |
Drive Shaft Assembly (L) | 1 | $ 160.80 | w/Transom (L) | |
| 1-3 | 57100-90L50 Drive Shaft Assembly (X)
SKU: 57100-90L50 Weight: 3.000000 Brand: Price: $ 211.52 |
Drive Shaft Assembly (X) | 1 | $ 211.52 | w/Transom (X) | |
| 2 | 08110-60020 B1 15X32X9 BEAR
SKU: 08110-60020 Weight: 0.200000 Brand: Price: $ 16.29 |
B1 15X32X9 BEAR | 1 | $ 16.29 | ||
| 3 | 09380-15001 Drive Shaft Circlip
SKU: 09380-15001 Weight: 0.200000 Brand: Price: $ 1.36 |
Drive Shaft Circlip | 1 | $ 1.36 | ||
| 4 | 09160-20027 Washer (20x35x2.75)
SKU: 09160-20027 Weight: 0.060000 Brand: Price: $ 8.73 |
Washer (20x35x2.75) | 1 | $ 8.73 | ||
| 5-1 | 09181-20251 Washer (20x34x1.0)
SKU: 09181-20251 Weight: 0.060000 Brand: Price: $ 2.80 |
Washer (20x34x1.0) | 1 | $ 2.80 | ||
| 5-2 | 09160-20042 Shim (1.10)
SKU: 09160-20042 Weight: 0.060000 Brand: Price: $ 3.21 |
Shim (1.10) | 1 | $ 3.21 | ||
| 5-3 | 09160-20043 Shim (1.20) (NLA)
SKU: 09160-20043 Weight: 0.100000 Brand: Price: $ 1.65 |
Shim (1.20) (NLA) | 1 | $ 1.65 | ||
| 5-4 | 09160-20044 Shim (1.30)
SKU: 09160-20044 Weight: 0.060000 Brand: Price: $ 3.21 |
Shim (1.30) | 1 | $ 3.21 | ||
| 5-5 | 09181-20244 Shim (0.70)
SKU: 09181-20244 Weight: 0.060000 Brand: Price: $ 2.22 |
Shim (0.70) | 1 | $ 2.22 | ||
| 5-6 | 09181-20246 Shim (0.80)
SKU: 09181-20246 Weight: 0.060000 Brand: Price: $ 2.42 |
Shim (0.80) | 1 | $ 2.42 | ||
| 5-7 | 09181-20248 Shim (0.90) (NLA)
SKU: 09181-20248 Weight: 0.100000 Brand: Price: $ 1.19 |
Shim (0.90) (NLA) | 1 | $ 1.19 | ||
| 6 | 09160-21009 Washer (21x35x2.75)
SKU: 09160-21009 Weight: 0.060000 Brand: Price: $ 8.42 |
Washer (21x35x2.75) | 1 | $ 8.42 | ||
| 7 | 09263-20024 Bearing (20x35x4.5)
SKU: 09263-20024 Weight: 0.100000 Brand: Price: $ 43.56 |
Bearing (20x35x4.5) | 1 | $ 43.56 | ||
| 8 | 57311-99J10 Pinion Gear (NT:12)
SKU: 57311-99J10 Weight: 0.250000 Brand: Price: $ 68.56 |
Pinion Gear (NT:12) | 1 | $ 68.56 | ||
| 9 | 57510-99J11 Forward Gear (NT:25)
SKU: 57510-99J11 Weight: 0.500000 Brand: Price: $ 63.88 |
Forward Gear (NT:25) | 1 | $ 63.88 | ||
| 10 | 57521-99J10 Reverse Gear (NT:25)
SKU: 57521-99J10 Weight: 0.400000 Brand: Price: $ 132.20 |
Reverse Gear (NT:25) | 1 | $ 132.20 | ||
| 11-1 | 09181-17144 Shim (1.10)
SKU: 09181-17144 Weight: 0.060000 Brand: Price: $ 2.54 |
Shim (1.10) | 1 | $ 2.54 | Rev | |
| 11-2 | 09181-17148 Shim (1.20)
SKU: 09181-17148 Weight: 0.060000 Brand: Price: $ 3.15 |
Shim (1.20) | 1 | $ 3.15 | Rev | |
| 11-3 | 09181-17153 Shim (1.30) (NLA)
SKU: 09181-17153 Weight: 0.060000 Brand: Price: $ 2.46 |
Shim (1.30) (NLA) | 1 | $ 2.46 | Rev | |
| 11-4 | 09181-17154 Shim (1.40)
SKU: 09181-17154 Weight: 0.060000 Brand: Price: $ 3.24 |
Shim (1.40) | 1 | $ 3.24 | Rev | |
| 11-5 | 09160-17026 Washer (1.50)
SKU: 09160-17026 Weight: 0.100000 Brand: Price: $ 2.24 |
Washer (1.50) | 1 | $ 2.24 | Rev | |
| 11-6 | 09160-17041 Washer (1.60)
SKU: 09160-17041 Weight: 0.100000 Brand: Price: $ 2.84 |
Washer (1.60) | 1 | $ 2.84 | Rev | |
| 11-7 | 09160-17027 Washer (1.70)
SKU: 09160-17027 Weight: 0.100000 Brand: Price: $ 2.28 |
Washer (1.70) | 1 | $ 2.28 | Rev | |
| 11-8 | 09160-17042 Washer (1.80)
SKU: 09160-17042 Weight: 0.100000 Brand: Price: $ 2.84 |
Washer (1.80) | 1 | $ 2.84 | Rev | |
| 11-9 | 09160-17028 Washer (1.90) (NLA)
SKU: 09160-17028 Weight: 0.100000 Brand: Price: $ 1.72 |
Washer (1.90) (NLA) | 1 | $ 1.72 | Rev | |
| 12-1 | 09181-25160 Shim (25x34x0.7)
SKU: 09181-25160 Weight: 0.060000 Brand: Price: $ 2.65 |
Shim (25x34x0.7) | 2 | $ 2.65 | ||
| 12-2 | 09181-25162 Shim (25x34x0.8)
SKU: 09181-25162 Weight: 0.060000 Brand: Price: $ 2.18 |
Shim (25x34x0.8) | 2 | $ 2.18 | ||
| 12-3 | 09181-25164 Shim (0.90)
SKU: 09181-25164 Weight: 0.100000 Brand: Price: $ 2.18 |
Shim (0.90) | 2 | $ 2.18 | ||
| 12-4 | 09160-25040 Washer (1.00)
SKU: 09160-25040 Weight: 0.100000 Brand: Price: $ 3.21 |
Washer (1.00) | 2 | $ 3.21 | ||
| 12-5 | 09160-25041 Washer (1.10)
SKU: 09160-25041 Weight: 0.060000 Brand: Price: $ 3.21 |
Washer (1.10) | 2 | $ 3.21 | ||
| 12-6 | 09160-25042 Washer (1.20)
SKU: 09160-25042 Weight: 0.060000 Brand: Price: $ 3.21 |
Washer (1.20) | 2 | $ 3.21 | ||
| 12-7 | 09181-25181 Shim (1.30)
SKU: 09181-25181 Weight: 0.100000 Brand: Price: $ 3.08 |
Shim (1.30) | 2 | $ 3.08 | ||
| 13 | 09181-15241 Washer (15x22x2)
SKU: 09181-15241 Weight: 0.250000 Brand: Price: $ 2.60 |
Washer (15x22x2) | 1 | $ 2.60 | Fwd | |
| 14 | 57610-99JL0 Propeller Shaft Assembly
SKU: 57610-99JL0 Weight: 1.000000 Brand: Price: $ 189.25 |
Propeller Shaft Assembly | 1 | $ 189.25 | ||
| 15 | 57621-99J11 Clutch Dog Shifter
SKU: 57621-99J11 Weight: 0.500000 Brand: Price: $ 42.33 |
Clutch Dog Shifter | 1 | $ 42.33 | ||
| 16 | 09202-04025 Pin (4x31)
SKU: 09202-04025 Weight: 0.060000 Brand: Price: $ 7.34 |
Pin (4x31) | 1 | $ 7.34 | ||
| 17 | 59441-94J00 Return Spring
SKU: 59441-94J00 Weight: 0.250000 Brand: Price: $ 3.70 |
Return Spring | 1 | $ 3.70 | ||
| 18 | 59441-99J00 Clutch Dog Spring
SKU: 59441-99J00 Weight: 0.250000 Brand: Price: $ 2.85 |
Clutch Dog Spring | 1 | $ 2.85 | ||
| 19 | 57631-93901 Push Rod
SKU: 57631-93901 Weight: 0.125000 Brand: Price: $ 8.28 |
Push Rod | 1 | $ 8.28 | ||
| 20 | 57632-97L00 Push Pin
SKU: 57632-97L00 Weight: 0.060000 Brand: Price: $ 4.27 |
Push Pin | 1 | $ 4.27 | ||
| 21 | 56130-99J30 Drive Shaft Bearing Housing
SKU: 56130-99J30 Weight: 2.000000 Brand: Price: $ 50.35 |
Drive Shaft Bearing Housing | 1 | $ 50.35 | ||
| 22 | 09282-13L01 Oil Seal (12.5x25x7)
SKU: 09282-13L01 Weight: 0.060000 Brand: Price: $ 9.47 |
Oil Seal (12.5x25x7) | 2 | $ 9.47 | ||
| 23 | 56132-99J10 Drive Shaft Bearing Housing Gasket
SKU: 56132-99J10 Weight: 0.060000 Brand: Price: $ 6.78 |
Drive Shaft Bearing Housing Gasket | 1 | $ 6.78 | ||
| 24 | 09116-06229 Bolt (6x25)
SKU: 09116-06229 Weight: 0.250000 Brand: Price: $ 2.38 |
Bolt (6x25) | 2 | $ 2.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
