Suzuki DF 250 Parts Listings 2004 to S/N 25003F-11XXXX 2004 to S/N 25003Z-11XXXX 2008 to S/N 25004F-11XXXX

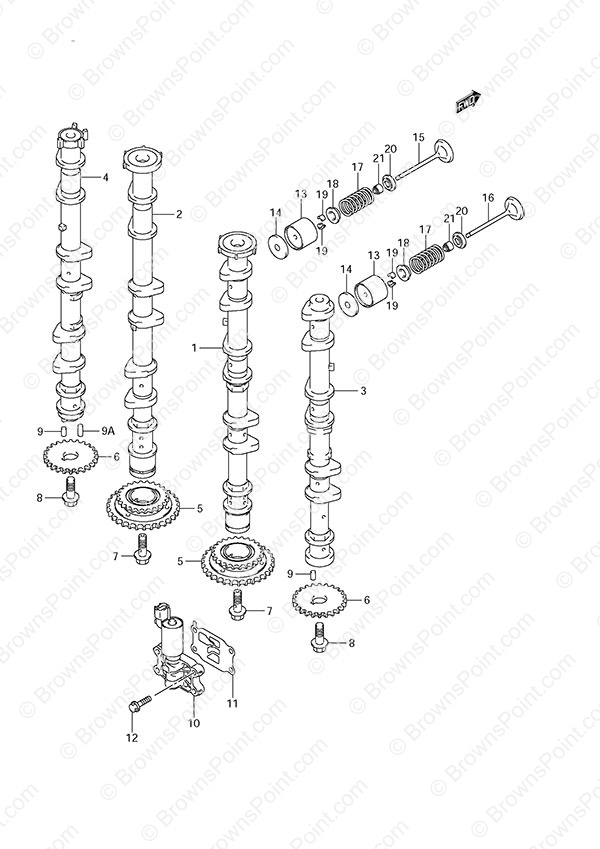

Fig. 9 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12701-93J50 Starboard Intake Camshaft
SKU: 12701-93J50 Weight: 5.000000 Brand: Price: $ 472.01 |
Starboard Intake Camshaft | 1 | $ 472.01 | ||
| 1-2 | 12701-98J20 Starboard Intake Camshaft
SKU: 12701-98J20 Weight: 5.000000 Brand: Price: $ 472.01 |
Starboard Intake Camshaft | 1 | $ 472.01 | DF250S | |
| 2-1 | 12705-93J50 Port Intake Camshaft
SKU: 12705-93J50 Weight: 5.000000 Brand: Price: $ 472.01 |
Port Intake Camshaft | 1 | $ 472.01 | ||
| 2-2 | 12705-98J10 Port Intake Camshaft
SKU: 12705-98J10 Weight: 5.000000 Brand: Price: $ 472.01 |
Port Intake Camshaft | 1 | $ 472.01 | DF250S | |
| 3-1 | 12721-93J50 Starboard Exhaust Camshaft
SKU: 12721-93J50 Weight: 5.000000 Brand: Price: $ 420.20 |
Starboard Exhaust Camshaft | 1 | $ 420.20 | ||
| 3-2 | 12721-98J10 Starboard Exhaust Camshaft
SKU: 12721-98J10 Weight: 5.000000 Brand: Price: $ 344.10 |
Starboard Exhaust Camshaft | 1 | $ 344.10 | DF250S | |
| 4-1 | 12729-93J50 Port Exhaust Camshaft
SKU: 12729-93J50 Weight: 5.000000 Brand: Price: $ 444.60 |
Port Exhaust Camshaft | 1 | $ 444.60 | ||
| 4-2 | 12729-98J10 Port Exhaust Camshaft
SKU: 12729-98J10 Weight: 5.000000 Brand: Price: $ 444.60 |
Port Exhaust Camshaft | 1 | $ 444.60 | DF250S | |
| 5 | 12740-93J00 Cam Timing Sprocket Assy
SKU: 12740-93J00 Weight: 1.000000 Brand: Price: $ 484.17 |
Cam Timing Sprocket Assy | 2 | $ 484.17 | ||
| 7 | 12753-93J00 Intake Camshaft Bolt
SKU: 12753-93J00 Weight: 0.060000 Brand: Price: $ 5.93 |
Intake Camshaft Bolt | 2 | $ 5.93 | ||
| 8 | 12749-93J00 Exhaust Camshaft Bolt
SKU: 12749-93J00 Weight: 0.125000 Brand: Price: $ 3.29 |
Exhaust Camshaft Bolt | 2 | $ 3.29 | ||
| 6 | 12748-93J00 Exhaust Camshaft Sprocket
SKU: 12748-93J00 Weight: 0.500000 Brand: Price: $ 28.55 |
Exhaust Camshaft Sprocket | 2 | $ 28.55 | ||
| 9 | 09202-05032 Pin (5x12)
SKU: 09202-05032 Weight: 0.060000 Brand: Price: $ 1.42 |
Pin (5x12) | 4 | $ 1.42 | ||
| 9A | 09261-05006 Pin (5x18)
SKU: 09261-05006 Weight: 0.100000 Brand: Price: $ 1.46 |
Pin (5x18) | 4 | $ 1.46 | DF250T: S/N 880718 Newer DF250Z: S/N 880324 Newer DF250S: S/N 880001 Newer | |
| 10 | 16550-93J00 Oil Control Valve
SKU: 16550-93J00 Weight: 0.500000 Brand: Price: $ 231.11 |
Oil Control Valve | 2 | $ 231.11 | ||
| 11 | 16555-93J01 OCV Gasket
SKU: 16555-93J01 Weight: 0.060000 Brand: Price: $ 6.92 |
OCV Gasket | 2 | $ 6.92 | ||
| 12 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 8 | $ 2.33 | ||
| 13 | 12891-93J00 Tappet
SKU: 12891-93J00 Weight: 0.200000 Brand: Price: $ 35.38 |
Tappet | 24 | $ 35.38 | ||
| 14-1 | 12892-93J00-218 Tappet Shim (2.175)
SKU: 12892-93J00-218 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.175) | 0 | $ 10.13 | ||
| 14-2 | 12892-93J00-220 Tappet Shim (2.200)
SKU: 12892-93J00-220 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.200) | 0 | $ 9.94 | ||
| 14-3 | 12892-93J10-223 Tappet Shim (2.225)
SKU: 12892-93J10-223 Weight: 0.060000 Brand: Price: $ 7.90 |
Tappet Shim (2.225) | 0 | $ 7.90 | ||
| 14-4 | 12892-93J00-225 Tappet Shim (2.250)
SKU: 12892-93J00-225 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.250) | 0 | $ 10.53 | ||
| 14-5 | 12892-93J00-228 Tappet Shim (2.275)
SKU: 12892-93J00-228 Weight: 0.125000 Brand: Price: $ 10.15 |
Tappet Shim (2.275) | 0 | $ 10.15 | ||
| 14-6 | 12892-93J00-230 Tappet Shim (2.300)
SKU: 12892-93J00-230 Weight: 0.060000 Brand: Price: $ 10.34 |
Tappet Shim (2.300) | 0 | $ 10.34 | ||
| 14-7 | 12892-93J00-233 Tappet Shim (2.325)
SKU: 12892-93J00-233 Weight: 0.060000 Brand: Price: $ 9.76 |
Tappet Shim (2.325) | 0 | $ 9.76 | ||
| 14-8 | 12892-93J00-235 Tappet Shim (2.350)
SKU: 12892-93J00-235 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.350) | 0 | $ 9.94 | ||
| 14-9 | 12892-93J00-238 Tappet Shim (2.375)
SKU: 12892-93J00-238 Weight: 0.060000 Brand: Price: $ 10.34 |
Tappet Shim (2.375) | 0 | $ 10.34 | ||
| 14-10 | 12892-93J00-240 Tappet Shim (2.400)
SKU: 12892-93J00-240 Weight: 0.060000 Brand: Price: $ 10.15 |
Tappet Shim (2.400) | 0 | $ 10.15 | ||
| 14-11 | 12892-93J00-243 Tappet Shim (2.425)
SKU: 12892-93J00-243 Weight: 0.060000 Brand: Price: $ 10.34 |
Tappet Shim (2.425) | 0 | $ 10.34 | ||
| 14-12 | 12892-93J00-245 Tappet Shim (2.450)
SKU: 12892-93J00-245 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.450) | 0 | $ 9.94 | ||
| 14-13 | 12892-93J00-248 Tappet Shim (2.475)
SKU: 12892-93J00-248 Weight: 0.060000 Brand: Price: $ 10.46 |
Tappet Shim (2.475) | 0 | $ 10.46 | ||
| 14-14 | 12892-93J00-250 Tappet Shim (2.500)
SKU: 12892-93J00-250 Weight: 0.125000 Brand: Price: $ 10.46 |
Tappet Shim (2.500) | 0 | $ 10.46 | ||
| 14-15 | 12892-93J00-253 Tappet Shim (2.525)
SKU: 12892-93J00-253 Weight: 0.125000 Brand: Price: $ 10.15 |
Tappet Shim (2.525) | 0 | $ 10.15 | ||
| 14-16 | 12892-93J00-255 Tappet Shim (2.550)
SKU: 12892-93J00-255 Weight: 0.060000 Brand: Price: $ 10.00 |
Tappet Shim (2.550) | 0 | $ 10.00 | ||
| 14-17 | 12892-93J00-258 Tappet Shim (2.575)
SKU: 12892-93J00-258 Weight: 0.125000 Brand: Price: $ 10.15 |
Tappet Shim (2.575) | 0 | $ 10.15 | ||
| 14-18 | 12892-93J00-260 Tappet Shim (2.600)
SKU: 12892-93J00-260 Weight: 0.125000 Brand: Price: $ 9.76 |
Tappet Shim (2.600) | 0 | $ 9.76 | ||
| 14-19 | 12892-93J00-263 Tappet Shim (2.625)
SKU: 12892-93J00-263 Weight: 0.125000 Brand: Price: $ 10.34 |
Tappet Shim (2.625) | 0 | $ 10.34 | ||
| 14-20 | 12892-93J00-265 Tappet Shim (2.650)
SKU: 12892-93J00-265 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.650) | 0 | $ 10.13 | ||
| 14-21 | 12892-93J00-268 Tappet Shim (2.675)
SKU: 12892-93J00-268 Weight: 0.125000 Brand: Price: $ 9.94 |
Tappet Shim (2.675) | 0 | $ 9.94 | ||
| 14-22 | 12892-93J00-270 Tappet Shim (2.700)
SKU: 12892-93J00-270 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.700) | 0 | $ 10.13 | ||
| 14-23 | 12892-93J00-273 Tappet Shim (2.725)
SKU: 12892-93J00-273 Weight: 0.125000 Brand: Price: $ 10.86 |
Tappet Shim (2.725) | 0 | $ 10.86 | ||
| 14-24 | 12892-93J00-275 Tappet Shim (2.750)
SKU: 12892-93J00-275 Weight: 0.060000 Brand: Price: $ 10.86 |
Tappet Shim (2.750) | 0 | $ 10.86 | ||
| 14-25 | 12892-93J00-278 Tappet Shim (2.775)
SKU: 12892-93J00-278 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.775) | 0 | $ 10.13 | ||
| 14-26 | 12892-93J00-280 Tappet Shim (2.800)
SKU: 12892-93J00-280 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.800) | 0 | $ 10.53 | ||
| 14-27 | 12892-93J00-283 Tappet Shim (2.825)
SKU: 12892-93J00-283 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.825) | 0 | $ 10.13 | ||
| 14-28 | 12892-93J00-285 Tappet Shim (2.850)
SKU: 12892-93J00-285 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.850) | 0 | $ 10.53 | ||
| 14-29 | 12892-93J00-288 Tappet Shim (2.875)
SKU: 12892-93J00-288 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.875) | 0 | $ 10.53 | ||
| 14-30 | 12892-93J00-290 Tappet Shim (2.900)
SKU: 12892-93J00-290 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.900) | 0 | $ 10.13 | ||
| 14-31 | 12892-93J00-293 Tappet Shim (2.925)
SKU: 12892-93J00-293 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.925) | 0 | $ 10.53 | ||
| 14-32 | 12892-93J00-295 Tappet Shim (2.950)
SKU: 12892-93J00-295 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.950) | 0 | $ 10.53 | ||
| 14-33 | 12892-93J00-298 Tappet Shim (2.975)
SKU: 12892-93J00-298 Weight: 0.060000 Brand: Price: $ 10.53 |
Tappet Shim (2.975) | 0 | $ 10.53 | ||
| 14-34 | 12892-93J00-300 Tappet Shim (3.000)
SKU: 12892-93J00-300 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (3.000) | 0 | $ 10.13 | ||
| 15-1 | 12911-93J00 Intake Valve
SKU: 12911-93J00 Weight: 0.120000 Brand: Price: $ 28.95 |
Intake Valve | 12 | $ 28.95 | ||
| 15-2 | 12911-98J00 Intake Valve
SKU: 12911-98J00 Weight: 0.150000 Brand: Price: $ 29.92 |
Intake Valve | 12 | $ 29.92 | DF250S | |
| 16-1 | 12915-93J60 Exhaust Valve
SKU: 12915-93J60 Weight: 0.120000 Brand: Price: $ 38.68 |
Exhaust Valve | 12 | $ 38.68 | ||
| 16-2 | 12915-93J60 Exhaust Valve
SKU: 12915-93J60 Weight: 0.120000 Brand: Price: $ 38.68 |
Exhaust Valve | 12 | $ 38.68 | 2006 Newer | |
| 17-1 | 12921-93J00 Valve Spring
SKU: 12921-93J00 Weight: 0.250000 Brand: Price: $ 7.41 |
Valve Spring | 24 | $ 7.41 | ||
| 17-2 | 12921-93J11 Valve Spring
SKU: 12921-93J11 Weight: 0.250000 Brand: Price: $ 7.13 |
Valve Spring | 24 | $ 7.13 | 2008 Later | |
| 18 | 12931-78G00 Valve Spring Retainer
SKU: 12931-78G00 Weight: 0.060000 Brand: Price: $ 4.25 |
Valve Spring Retainer | 24 | $ 4.25 | ||
| 19 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 48 | $ 2.04 | ||
| 20 | 12933-69G10 Valve Spring Seat
SKU: 12933-69G10 Weight: 0.060000 Brand: Price: $ 3.33 |
Valve Spring Seat | 24 | $ 3.33 | ||
| 21 | 09289-05006 Valve Stem Seal
SKU: 09289-05006 Weight: 0.060000 Brand: Price: $ 4.02 |
Valve Stem Seal | 24 | $ 4.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
