Suzuki DF 140BG Parts Listings - 2023
S/N 14004F-340001 to 14004F-34XXXX
S/N DF 140BGZG 14004Z-340001 to 14004Z-34XXXX

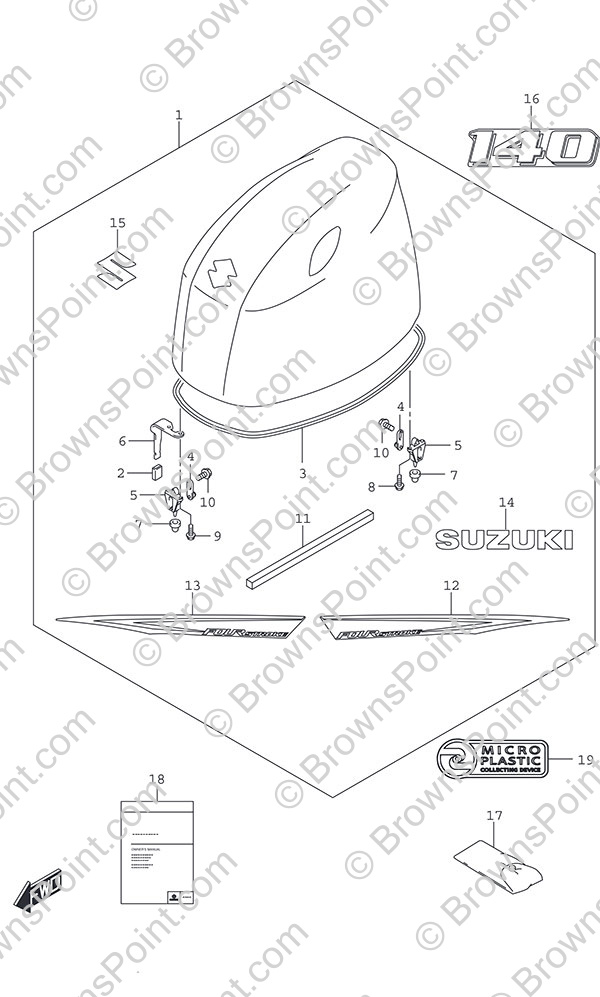

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-99811-YAY Engine Cover Set
SKU: 61401-99811-YAY Weight: 50.000000 Brand: Price: $ 1,008.34 |
Engine Cover Set | 1 | $ 1,008.34 | Black | |
| 1-2 | 61401-99821-QTN COVER SET,ENGIN
SKU: 61401-99821-QTN Weight: 0.000000 Brand: Price: $ 1,008.34 |
COVER SET,ENGIN | 1 | $ 1,008.34 | White | |
| 2 | 41225-94401 RUBBER,TILT LOC
SKU: 41225-94401 Weight: 0.000000 Brand: Price: $ 1.95 |
RUBBER,TILT LOC | 1 | $ 1.95 | ||
| 3 | 61112-99L00 SEAL,ENGINE COV
SKU: 61112-99L00 Weight: 0.000000 Brand: Price: $ 71.77 |
SEAL,ENGINE COV | 1 | $ 71.77 | ||
| 4 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 5 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 6 | 61682-99L00 STAND,ENGINE CO
SKU: 61682-99L00 Weight: 0.000000 Brand: Price: $ 10.24 |
STAND,ENGINE CO | 1 | $ 10.24 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.58 |
BOLT,HARNESS B | 4 | $ 1.58 | ||
| 9 | 01547-0620C Bolt
SKU: 01547-0620C Weight: 0.125000 Brand: Price: $ 2.00 |
Bolt | 2 | $ 2.00 | ||
| 10 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 11 | 61437-99L00 SEAL,AIR INTAKE
SKU: 61437-99L00 Weight: 0.000000 Brand: Price: $ 3.20 |
SEAL,AIR INTAKE | 1 | $ 3.20 | ||
| 12-1 | 61443-99L00 STRIPE,ENG COVE
SKU: 61443-99L00 Weight: 0.000000 Brand: Price: $ 25.71 |
STRIPE,ENG COVE | 1 | $ 25.71 | Black | |
| 12-2 | 61443-99L10 STRIPE,ENG CVR
SKU: 61443-99L10 Weight: 0.000000 Brand: Price: $ 25.71 |
STRIPE,ENG CVR | 1 | $ 25.71 | White | |
| 13-1 | 61453-99L00 STRIPE,ENG CVR
SKU: 61453-99L00 Weight: 0.000000 Brand: Price: $ 25.71 |
STRIPE,ENG CVR | 1 | $ 25.71 | Black | |
| 13-2 | 61453-99L10 STRIPE,ENG CVR
SKU: 61453-99L10 Weight: 0.000000 Brand: Price: $ 25.71 |
STRIPE,ENG CVR | 1 | $ 25.71 | White | |
| 14 | 61441-92J10 Suzuki Mark
SKU: 61441-92J10 Weight: 0.250000 Brand: Price: $ 90.62 |
Suzuki Mark | 2 | $ 90.62 | ||
| 15 | 68111-93J00 Emblem Mark 'S'
SKU: 68111-93J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Emblem Mark 'S' | 1 | $ 16.42 | ||
| 16-1 | 61435-99L00 Rear Emblem Mark (140)
SKU: 61435-99L00 Weight: 0.060000 Brand: Price: $ 11.38 |
Rear Emblem Mark (140) | 1 | $ 11.38 | Black | |
| 16-2 | 61435-99L10 MARK,EMBLEM RR
SKU: 61435-99L10 Weight: 0.000000 Brand: Price: $ 11.38 |
MARK,EMBLEM RR | 1 | $ 11.38 | White | |
| 17 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 18 | 99011-99L40-03B MANUAL,OWNER'S
SKU: 99011-99L40-03B Weight: 0.000000 Brand: Price: $ 13.35 |
MANUAL,OWNER'S | 1 | $ 13.35 | ||
| 19 | 61446-99L00 DECAL(MPC)
SKU: 61446-99L00 Weight: 0.000000 Brand: Price: $ 6.69 |
DECAL(MPC) | 1 | $ 6.69 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
