Suzuki DF 140BG Parts Listings - 2023
S/N 14004F-340001 to 14004F-34XXXX
S/N DF 140BGZG 14004Z-340001 to 14004Z-34XXXX

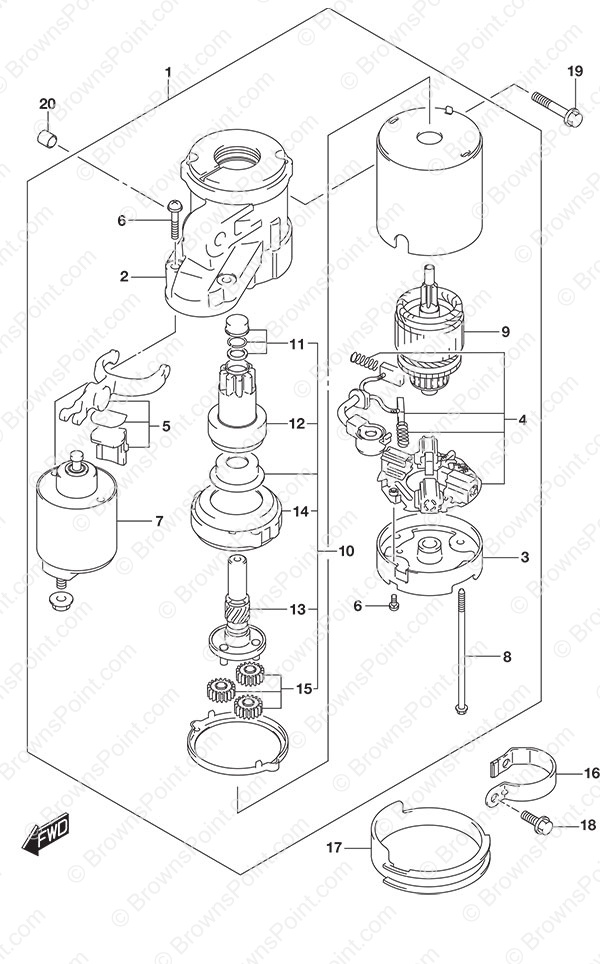

Fig. 301 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-92J00 Starter Motor Assembly
SKU: 31100-92J00 Weight: 8.000000 Brand: Price: $ 926.12 |
Starter Motor Assembly | 1 | $ 926.12 | ||
| 2 | 31150-92J00 Front Housing
SKU: 31150-92J00 Weight: 1.000000 Brand: Price: $ 134.53 |
Front Housing | 1 | $ 134.53 | ||
| 3 | 31170-92J00 Rear Housing
SKU: 31170-92J00 Weight: 0.500000 Brand: Price: $ 24.19 |
Rear Housing | 1 | $ 24.19 | ||
| 4 | 31173-92J00 Brush Holder Assembly
SKU: 31173-92J00 Weight: 0.500000 Brand: Price: $ 63.37 |
Brush Holder Assembly | 1 | $ 63.37 | ||
| 5 | 31191-92J00 Shift Lever
SKU: 31191-92J00 Weight: 0.250000 Brand: Price: $ 13.49 |
Shift Lever | 1 | $ 13.49 | ||
| 6 | 31192-92J00 Screw Set
SKU: 31192-92J00 Weight: 0.060000 Brand: Price: $ 6.44 |
Screw Set | 1 | $ 6.44 | ||
| 7 | 31220-92J00 Switch Assembly
SKU: 31220-92J00 Weight: 0.500000 Brand: Price: $ 225.57 |
Switch Assembly | 1 | $ 225.57 | ||
| 8 | 31261-75F10 Through Bolt
SKU: 31261-75F10 Weight: 0.060000 Brand: Price: $ 0.00 |
Through Bolt | 2 | $ 0.00 | ||
| 9 | 31311-63J00 Armature
SKU: 31311-63J00 Weight: 0.500000 Brand: Price: $ 238.32 |
Armature | 1 | $ 238.32 | ||
| 10 | 31340-92J00 Starting Motor Clutch Set
SKU: 31340-92J00 Weight: 1.000000 Brand: Price: $ 252.97 |
Starting Motor Clutch Set | 1 | $ 252.97 | ||
| 11 | 31312-92J00 Pinion Stopper Set
SKU: 31312-92J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Pinion Stopper Set | 1 | $ 0.00 | ||
| 12 | 31320-92J00 Pinion Set
SKU: 31320-92J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Pinion Set | 1 | $ 0.00 | ||
| 13 | 31341-92J00 Pinion Shaft
SKU: 31341-92J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Pinion Shaft | 1 | $ 0.00 | ||
| 14 | 31343-63J00 Internal Gear
SKU: 31343-63J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Internal Gear | 1 | $ 0.00 | ||
| 15 | 31344-63J00 Planetary Gear
SKU: 31344-63J00 Weight: 0.125000 Brand: Price: $ 0.00 |
Planetary Gear | 3 | $ 0.00 | ||
| 16 | 31912-90J00 Starting Motor Band
SKU: 31912-90J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Starting Motor Band | 1 | $ 8.17 | ||
| 17 | 31918-92J01 Lower Damper
SKU: 31918-92J01 Weight: 0.060000 Brand: Price: $ 7.72 |
Lower Damper | 1 | $ 7.72 | ||
| 18 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 19 | 01550-10507 BOLT
SKU: 01550-10507 Weight: 0.060000 Brand: Price: $ 4.11 |
BOLT | 2 | $ 4.11 | ||
| 20 | 04211-13149 PIN
SKU: 04211-13149 Weight: 0.060000 Brand: Price: $ 2.29 |
PIN | 2 | $ 2.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
