Suzuki DF 140BG Parts Listings - 2023
S/N 14004F-340001 to 14004F-34XXXX
S/N DF 140BGZG 14004Z-340001 to 14004Z-34XXXX

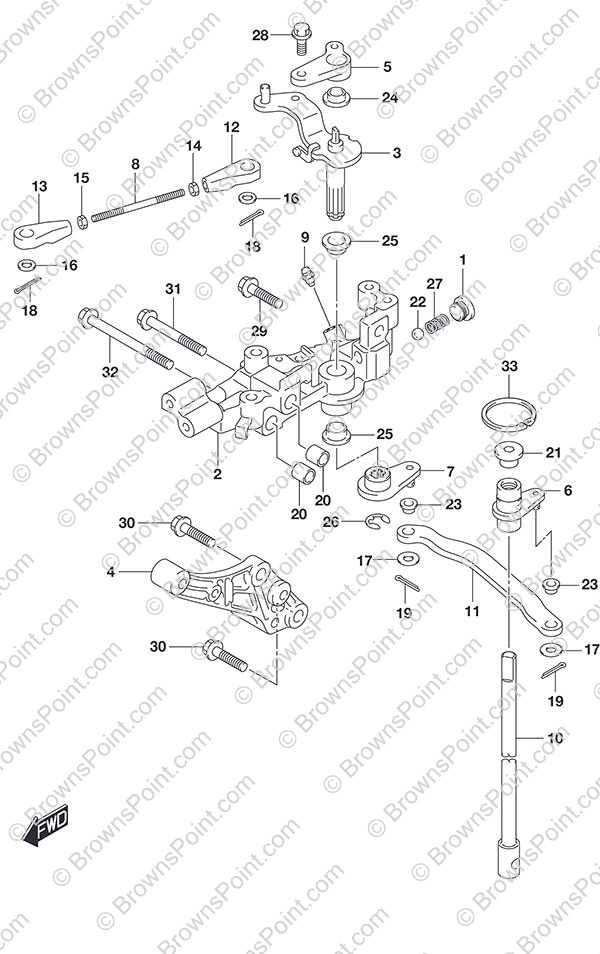

Fig. 204 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11118-95J00 Notch Spring Plug
SKU: 11118-95J00 Weight: 0.100000 Brand: Price: $ 7.06 |
Notch Spring Plug | 1 | $ 7.06 | ||
| 2 | 19110-99L00 19110-99L01
SKU: 19110-99L00 Weight: 0.000000 Brand: Price: $ 177.41 |
19110-99L01 | 1 | $ 177.41 | ||
| 3 | 21110-99L00 LEVER COMP,CLUT
SKU: 21110-99L00 Weight: 0.000000 Brand: Price: $ 12.92 |
LEVER COMP,CLUT | 1 | $ 12.92 | ||
| 4 | 21151-99L00 HOLDER,CLUTCH L
SKU: 21151-99L00 Weight: 0.000000 Brand: Price: $ 33.99 |
HOLDER,CLUTCH L | 1 | $ 33.99 | ||
| 5 | 21155-99L00 HOLDER,SHIFT LE
SKU: 21155-99L00 Weight: 0.000000 Brand: Price: $ 15.64 |
HOLDER,SHIFT LE | 1 | $ 15.64 | ||
| 6 | 21210-99L00 SHAFT COMP,CLUT
SKU: 21210-99L00 Weight: 0.000000 Brand: Price: $ 68.93 |
SHAFT COMP,CLUT | 1 | $ 68.93 | ||
| 7 | 21230-99L00 ARM,CMP CLUTCH
SKU: 21230-99L00 Weight: 0.000000 Brand: Price: $ 56.25 |
ARM,CMP CLUTCH | 1 | $ 56.25 | ||
| 8 | 21241-99L00 ROD,CLUTCH LEVE
SKU: 21241-99L00 Weight: 0.000000 Brand: Price: $ 12.30 |
ROD,CLUTCH LEVE | 1 | $ 12.30 | ||
| 9 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 10-1 | 23111-90J02 Clutch Rod (L)
SKU: 23111-90J02 Weight: 1.000000 Brand: Price: $ 81.27 |
Clutch Rod (L) | 1 | $ 81.27 | W/TRANSOM(L) | |
| 10-2 | 23111-90J12 Clutch Rod (X)
SKU: 23111-90J12 Weight: 0.840000 Brand: Price: $ 84.90 |
Clutch Rod (X) | 1 | $ 84.90 | W/TRANSOM(X) | |
| 11 | 23115-99L00 LINK,CLUTCH LEV
SKU: 23115-99L00 Weight: 0.000000 Brand: Price: $ 20.23 |
LINK,CLUTCH LEV | 1 | $ 20.23 | ||
| 12 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 1 | $ 7.75 | ||
| 13 | 67467-89J10 Cable Connector
SKU: 67467-89J10 Weight: 0.060000 Brand: Price: $ 8.44 |
Cable Connector | 1 | $ 8.44 | ||
| 14 | 67471-99E00 Remote Control Nut
SKU: 67471-99E00 Weight: 0.060000 Brand: Price: $ 3.35 |
Remote Control Nut | 1 | $ 3.35 | ||
| 15 | 67471-99E10 Remote Control Nut
SKU: 67471-99E10 Weight: 0.060000 Brand: Price: $ 5.77 |
Remote Control Nut | 1 | $ 5.77 | ||
| 16 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 17 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 18 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 19 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 20 | 09206-11019 PIN CLUTCH HOLD
SKU: 09206-11019 Weight: 0.000000 Brand: Price: $ 6.77 |
PIN CLUTCH HOLD | 2 | $ 6.77 | ||
| 21 | 09248-12011 Plug (12x9)
SKU: 09248-12011 Weight: 0.250000 Brand: Price: $ 4.96 |
Plug (12x9) | 1 | $ 4.96 | ||
| 22 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 23 | 09306-06004 Bushing
SKU: 09306-06004 Weight: 0.060000 Brand: Price: $ 1.38 |
Bushing | 2 | $ 1.38 | ||
| 24 | 09306-10022 Bushing
SKU: 09306-10022 Weight: 0.100000 Brand: Price: $ 2.13 |
Bushing | 1 | $ 2.13 | ||
| 25 | 09306-12014 BUSH,CLUTCH HOL
SKU: 09306-12014 Weight: 0.000000 Brand: Price: $ 2.11 |
BUSH,CLUTCH HOL | 2 | $ 2.11 | ||
| 26 | 09383-08005 E Ring
SKU: 09383-08005 Weight: 0.100000 Brand: Price: $ 2.17 |
E Ring | 1 | $ 2.17 | ||
| 27 | 09440-07071 Spring
SKU: 09440-07071 Weight: 0.060000 Brand: Price: $ 5.53 |
Spring | 1 | $ 5.53 | ||
| 28 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 29 | 01550-0825C Bolt
SKU: 01550-0825C Weight: Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 30 | 01550-0830C Bolt
SKU: 01550-0830C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 2 | $ 1.80 | ||
| 31 | 01550-0855C Bolt
SKU: 01550-0855C Weight: Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 32 | 01550-0880C Bolt
SKU: 01550-0880C Weight: Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 33 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.27 |
Circlip | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
