Suzuki DF 115BG Parts Listings - 2023
S/N 11505F-340001 to 11505F-34XXXX
S/N DF 115BZG 11505Z-340001 to 11505Z-34XXXX

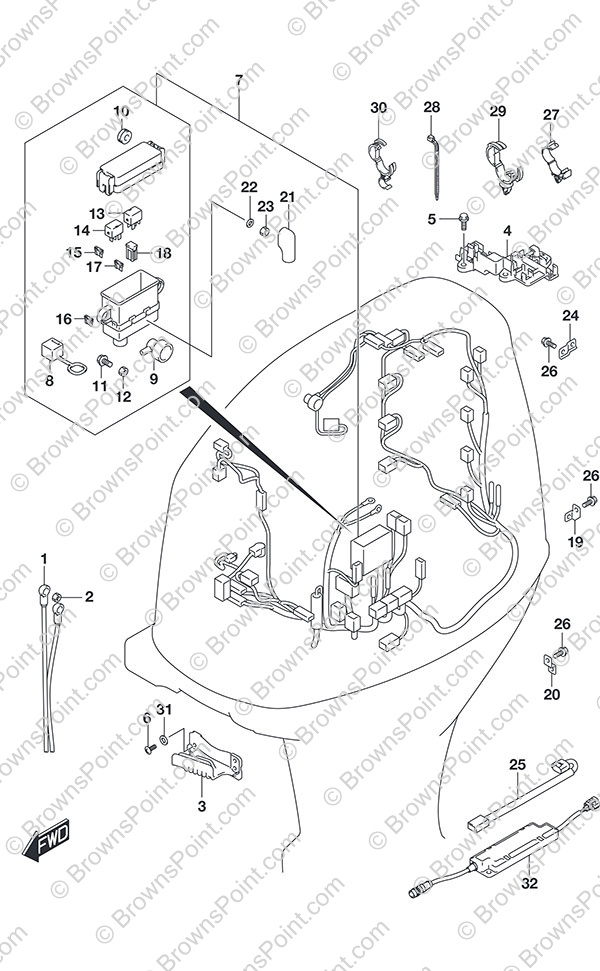

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 173.78 |
CABLE ASSY,STAR | 1 | $ 173.78 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 36616-99L00 HOLDER,CABLE
SKU: 36616-99L00 Weight: 0.000000 Brand: Price: $ 71.77 |
HOLDER,CABLE | 1 | $ 71.77 | ||
| 4 | 36616-99L10 HOLDER,CONNECTO
SKU: 36616-99L10 Weight: 0.000000 Brand: Price: $ 45.14 |
HOLDER,CONNECTO | 1 | $ 45.14 | ||
| 5 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 6 | 02142-0616C Screw
SKU: 02142-0616C Weight: 0.060000 Brand: Price: $ 0.00 |
Screw | 2 | $ 0.00 | ||
| 7 | 36610-99L30 HARNESS ASSY,WI
SKU: 36610-99L30 Weight: 0.000000 Brand: Price: $ 742.81 |
HARNESS ASSY,WI | 1 | $ 742.81 | ||
| 8 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 9 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 2 | $ 1.71 | ||
| 10 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 11 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 12 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 13 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 14 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.08 |
15 Amp Fuse | 4 | $ 2.08 | ||
| 15 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.00 |
30 Amp Fuse | 3 | $ 2.00 | ||
| 16 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.25 |
60 Amp Fuse | 3 | $ 5.25 | ||
| 17 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 18 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 19 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.22 |
Fuse Puller | 1 | $ 4.22 | ||
| 20 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 16.86 |
Fuse Case Upper Cover | 1 | $ 16.86 | ||
| 21 | 36617-88L00 Harness Bracket (NLA)
SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 1 | $ 3.47 | ||
| 22 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 8 | $ 2.00 | ||
| 23 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 4.94 |
CAP,TERMINAL | 1 | $ 4.94 | ||
| 24 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 25 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 26 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.05 |
Harness Bracket | 1 | $ 2.05 | ||
| 27 | 36611-99L00 HARNESS ASSY,WI
SKU: 36611-99L00 Weight: 0.000000 Brand: Price: $ 18.41 |
HARNESS ASSY,WI | 1 | $ 18.41 | ||
| 28 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 10 | $ 1.73 | ||
| 29 | 09403-11321 Clamp
SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.40 |
Clamp | 2 | $ 3.40 | ||
| 30 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 3 | $ 2.27 | ||
| 31 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
| 32 | 09408-00213 09408-00213
SKU: 09408-00213 Weight: Brand: Price: $ 0.00 |
09408-00213 | 1 | $ 0.00 | ||
| 33 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.11 |
Washer (6.3x16x1) | 2 | $ 1.11 | ||
| 34 | 36617-99L00 BRACKET,R/CON C
SKU: 36617-99L00 Weight: 0.000000 Brand: Price: $ 6.57 |
BRACKET,R/CON C | 1 | $ 6.57 | ||
| 35 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 |
