Suzuki DF 140BT Parts Listings - 2023
S/N 14005F-340001 to 14005F-34XXXX
S/N DF 140BTZ 14005Z-340001 to 14005Z-34XXXX

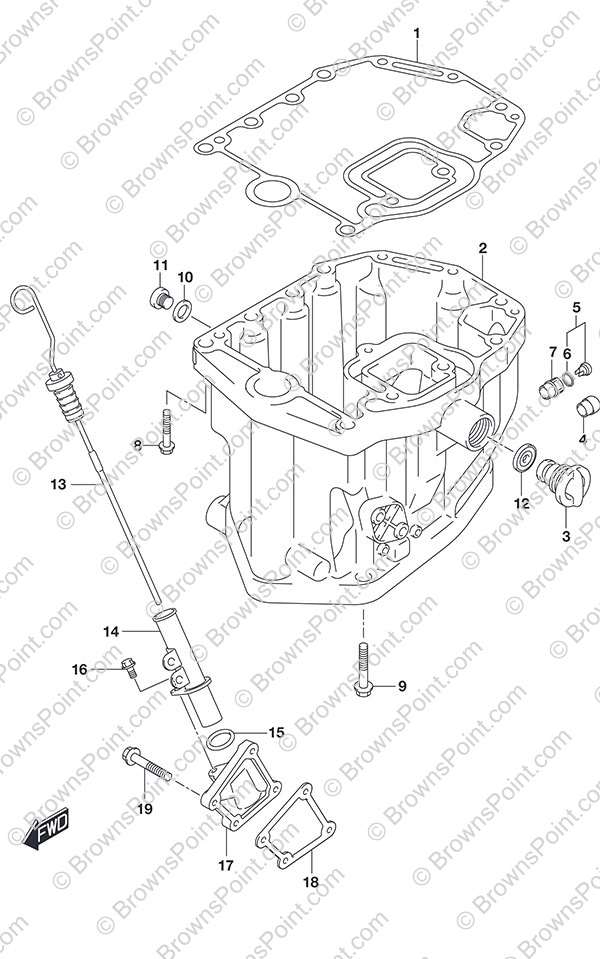

Fig. 180 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-90J10 GASKET,OIL PAN
SKU: 11489-90J10 Weight: 0.000000 Brand: Price: $ 36.71 |
GASKET,OIL PAN | 1 | $ 36.71 | ||
| 2-1 | 11501-90J20-YAY Oil Pan
SKU: 11501-90J20-YAY Weight: 12.000000 Brand: Price: $ 612.59 |
Oil Pan | 1 | $ 612.59 | Black | |
| 2-2 | 11501-90J20-QTN PAN,OIL
SKU: 11501-90J20-QTN Weight: 0.000000 Brand: Price: $ 525.20 |
PAN,OIL | 1 | $ 525.20 | White | |
| 3 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 4 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 5 | 61150-99E01 Water Indicator Tube Cover
SKU: 61150-99E01 Weight: 0.060000 Brand: Price: $ 8.02 |
Water Indicator Tube Cover | 1 | $ 8.02 | ||
| 6 | 09280-09016 O-Ring
SKU: 09280-09016 Weight: 0.060000 Brand: Price: $ 0.00 |
O-Ring | 1 | $ 0.00 | ||
| 7 | 61155-99E01 Water Indicator Tube
SKU: 61155-99E01 Weight: 0.060000 Brand: Price: $ 6.34 |
Water Indicator Tube | 1 | $ 6.34 | ||
| 8 | 09116-08178 BOLT,OIL PAN(L4
SKU: 09116-08178 Weight: 0.000000 Brand: Price: $ 3.42 |
BOLT,OIL PAN(L4 | 3 | $ 3.42 | ||
| 9 | 09116-10129 Bolt (10x160)
SKU: 09116-10129 Weight: 0.200000 Brand: Price: $ 18.97 |
Bolt (10x160) | 8 | $ 18.97 | ||
| 10 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 11 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 12 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 13 | 16910-99L00 GAUGE COMP,OIL
SKU: 16910-99L00 Weight: 0.000000 Brand: Price: $ 24.21 |
GAUGE COMP,OIL | 1 | $ 24.21 | ||
| 14 | 16930-99L00 GUIDE,OIL LEVEL
SKU: 16930-99L00 Weight: 0.000000 Brand: Price: $ 40.05 |
GUIDE,OIL LEVEL | 1 | $ 40.05 | ||
| 15 | 09280-21015 O-Ring
SKU: 09280-21015 Weight: 0.060000 Brand: Price: $ 2.74 |
O-Ring | 1 | $ 2.74 | ||
| 16 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 17 | 16934-99L00 CASE,OIL LEVEL
SKU: 16934-99L00 Weight: 0.000000 Brand: Price: $ 72.13 |
CASE,OIL LEVEL | 1 | $ 72.13 | ||
| 18 | 16941-99L00 GASKET,OIL LVL
SKU: 16941-99L00 Weight: 0.000000 Brand: Price: $ 3.29 |
GASKET,OIL LVL | 1 | $ 3.29 | ||
| 19 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 4 | $ 1.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
