Suzuki DF 140BT Parts Listings - 2023
S/N 14005F-340001 to 14005F-34XXXX
S/N DF 140BTZ 14005Z-340001 to 14005Z-34XXXX

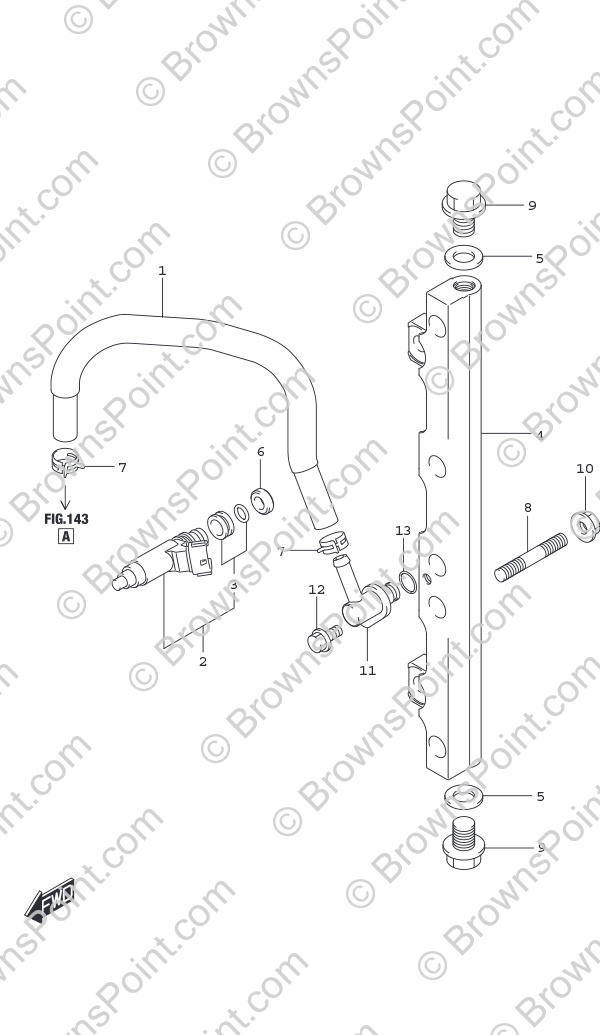

Fig. 144 - Fuel Injector

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 15681-99L00 HOSE,FUEL(SEP 2 1 $ 23.97
Separator to Delivery Pipe
2 15710-99L00 INJECTOR ASSY,F 4 $ 45.69
3 15716-65DT0 Grommet Set 4 $ 19.06
4 15423-99L00 GUARD,FUEL HOSE 1 $ 35.34
5 15751-99L00 PIPE,DELIVERY 1 $ 185.27
6 01550-0625C BOLT 2 $ 1.46
7 09168-12013 Gasket 3 $ 3.46
8 09320-08062 Cushion 4 $ 13.65
9 09360-12008 Union Bolt 1 $ 9.81
10 09363-08004 Union 1 $ 16.69
11 09401-11425 Clip 2 $ 3.46
12 01421-0820C 01421-0820C 2 $ 0.00
13 01550-12167 BOLT 1 $ 3.89
14 08316-1008C Nut 2 $ 0.00

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
