Suzuki DF 115BT Parts Listings - 2023
S/N 11506F-340001 to 11506F-34XXXX
S/N DF 115BTZ 11506Z-340001 to 11506Z-34XXXX

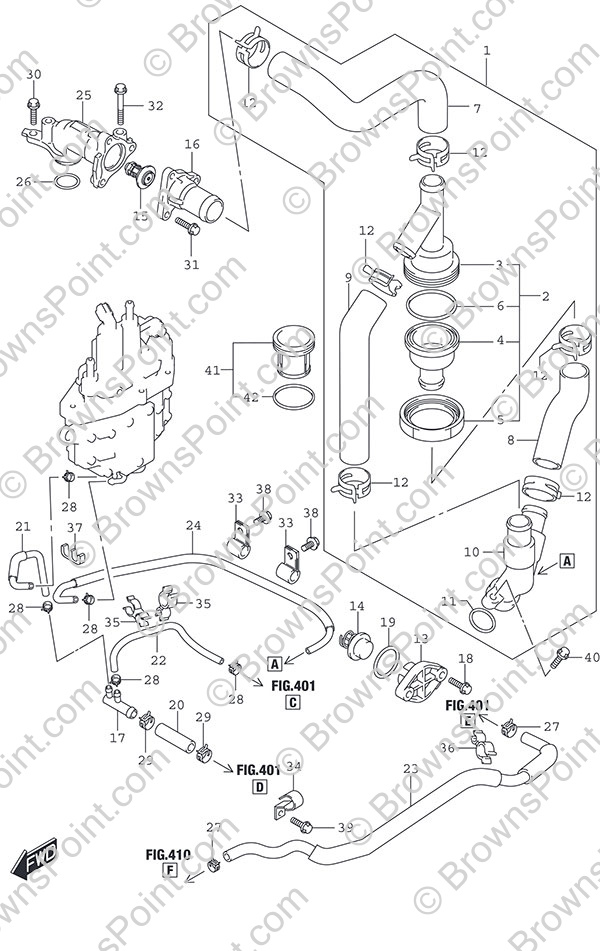

Fig. 162 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17700-99L00 FILTER ASSY,WAT
SKU: 17700-99L00 Weight: 0.000000 Brand: Price: $ 264.72 |
FILTER ASSY,WAT | 1 | $ 264.72 | ||
| 2 | 17720-99L00 CASE ASSY,FILTE
SKU: 17720-99L00 Weight: 0.000000 Brand: Price: $ 14.24 |
CASE ASSY,FILTE | 1 | $ 14.24 | ||
| 4 | 17722-99L00 CASE,FILTER LOW
SKU: 17722-99L00 Weight: 0.000000 Brand: Price: $ 4.07 |
CASE,FILTER LOW | 1 | $ 4.07 | ||
| 3 | 17721-99L00 CASE,FILTER UPP
SKU: 17721-99L00 Weight: 0.000000 Brand: Price: $ 8.52 |
CASE,FILTER UPP | 1 | $ 8.52 | ||
| 5 | 17723-99L00 CAP,FILTER CASE
SKU: 17723-99L00 Weight: 0.000000 Brand: Price: $ 4.25 |
CAP,FILTER CASE | 1 | $ 4.25 | ||
| 6 | 09280-50008 O-Ring
SKU: 09280-50008 Weight: 0.060000 Brand: Price: $ 2.62 |
O-Ring | 1 | $ 2.62 | ||
| 7 | 17725-99L00 HOSE,WATER(THER
SKU: 17725-99L00 Weight: 0.000000 Brand: Price: $ 14.60 |
HOSE,WATER(THER | 1 | $ 14.60 | ||
| 8 | 17726-99L00 HOSE,WATER(CASE
SKU: 17726-99L00 Weight: 0.000000 Brand: Price: $ 9.95 |
HOSE,WATER(CASE | 1 | $ 9.95 | ||
| 9 | 17727-99L00 HOSE,WATER(BYPA
SKU: 17727-99L00 Weight: 0.000000 Brand: Price: $ 12.10 |
HOSE,WATER(BYPA | 1 | $ 12.10 | L 50 HOLDER TO 3 WAY | |
| 10 | 17740-99L00 UNION COMP,WATE
SKU: 17740-99L00 Weight: 0.000000 Brand: Price: $ 210.04 |
UNION COMP,WATE | 1 | $ 210.04 | L 120 3WAY TO SEPARATOR | |
| 11 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | L 600->220 3WAY TO CRKC LOWER | |
| 12 | 09401-31407 Clip
SKU: 09401-31407 Weight: 0.060000 Brand: Price: $ 6.08 |
Clip | 6 | $ 6.08 | 3 Way to Thermostat L:600->450 | |
| 13 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | Separator to Holder L:600->580 | |
| 14 | 17660-98L01 Water Pressure Valve
SKU: 17660-98L01 Weight: 0.125000 Brand: Price: $ 16.58 |
Water Pressure Valve | 1 | $ 16.58 | 3 Way to Indicator L:2000->610 | |
| 15-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | ||
| 15-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 16 | 17681-99L00 COVER,THERMOSTA
SKU: 17681-99L00 Weight: 0.000000 Brand: Price: $ 22.49 |
COVER,THERMOSTA | 1 | $ 22.49 | ||
| 17 | 17711-90J00 Water Hose 3 Way
SKU: 17711-90J00 Weight: 0.060000 Brand: Price: $ 4.14 |
Water Hose 3 Way | 1 | $ 4.14 | ||
| 18 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 19 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 20 | 09352-11154-050 HOSE,WATER(HLDR
SKU: 09352-11154-050 Weight: 0.000000 Brand: Price: $ 1.55 |
HOSE,WATER(HLDR | 1 | $ 1.55 | ||
| 21 | 17712-99L00 HOSE,WATER(3WAY
SKU: 17712-99L00 Weight: 0.000000 Brand: Price: $ 7.55 |
HOSE,WATER(3WAY | 1 | $ 7.55 | ||
| 22 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | ||
| 23 | 17915-99L00 HOSE,FLUSH
SKU: 17915-99L00 Weight: 0.000000 Brand: Price: $ 31.36 |
HOSE,FLUSH | 1 | $ 31.36 | ||
| 24 | 17710-99L00 HOSE COMP,WATER
SKU: 17710-99L00 Weight: 0.000000 Brand: Price: $ 9.66 |
HOSE COMP,WATER | 1 | $ 9.66 | ||
| 25 | 17581-99L01 PIPE,WATER OUTL
SKU: 17581-99L01 Weight: 0.000000 Brand: Price: $ 68.10 |
PIPE,WATER OUTL | 1 | $ 68.10 | ||
| 26 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 27 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
| 28 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
| 29 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 30 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 1 | $ 1.68 | ||
| 31 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 3 | $ 1.68 | ||
| 32 | 01550-0655C Bolt
SKU: 01550-0655C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 33 | 09403-12420 CLAMP,WATER HOS
SKU: 09403-12420 Weight: 0.000000 Brand: Price: $ 3.00 |
CLAMP,WATER HOS | 2 | $ 3.00 | ||
| 34 | 09403-16416 CLAMP
SKU: 09403-16416 Weight: 0.000000 Brand: Price: $ 2.77 |
CLAMP | 1 | $ 2.77 | ||
| 35 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 2 | $ 2.67 | ||
| 36 | 09408-00174 Clamp (NLA)
SKU: 09408-00174 Weight: 0.100000 Brand: Price: $ 2.99 |
Clamp (NLA) | 1 | $ 2.99 | ||
| 37 | 09408-00175 Clamp
SKU: 09408-00175 Weight: 0.250000 Brand: Price: $ 2.72 |
Clamp | 1 | $ 2.72 | ||
| 38 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 39 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 40 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 1 | $ 1.46 | ||
| 42 | 09280-40020 O RING(D:2.4,ID
SKU: 09280-40020 Weight: 0.000000 Brand: Price: $ 2.92 |
O RING(D:2.4,ID | 1 | $ 2.92 | ||
| 41 | 17730-99L00 FILTER ASSY
SKU: 17730-99L00 Weight: 0.000000 Brand: Price: $ 10.35 |
FILTER ASSY | 1 | $ 10.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
