Suzuki DF 115BT Parts Listings - 2023
S/N 11506F-340001 to 11506F-34XXXX
S/N DF 115BTZ 11506Z-340001 to 11506Z-34XXXX

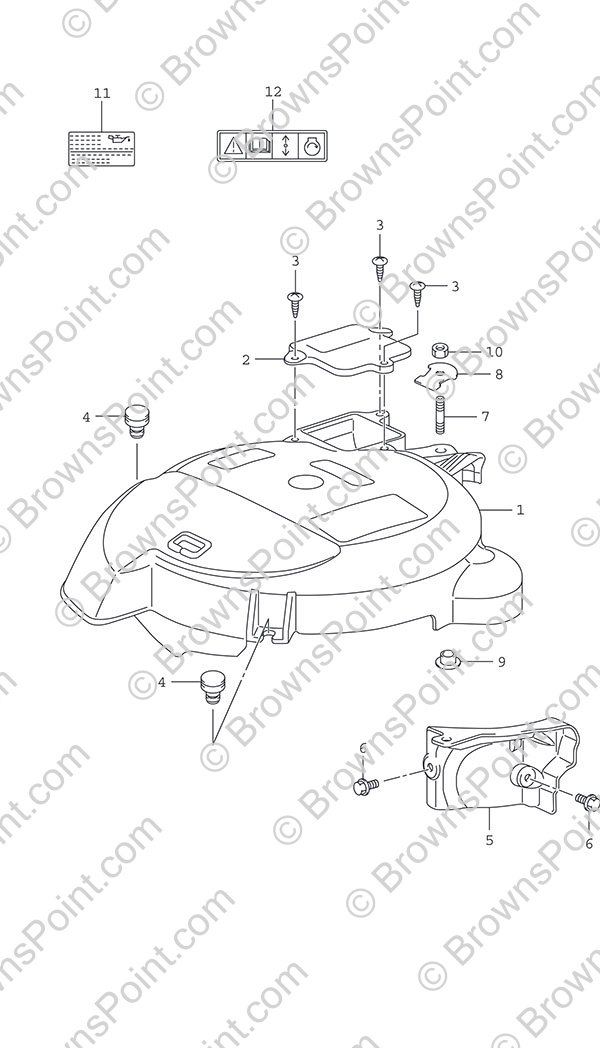

Fig. 136 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11511-99L00 COVER,RING GEAR
SKU: 11511-99L00 Weight: 0.000000 Brand: Price: $ 77.02 |
COVER,RING GEAR | 1 | $ 77.02 | ||
| 2 | 11514-99L00 PLATE,RING GEAR
SKU: 11514-99L00 Weight: 0.000000 Brand: Price: $ 38.75 |
PLATE,RING GEAR | 1 | $ 38.75 | ||
| 3 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 3 | $ 2.24 | ||
| 4 | 11512-99L00 CUSHION RING,GR
SKU: 11512-99L00 Weight: 0.000000 Brand: Price: $ 2.65 |
CUSHION RING,GR | 2 | $ 2.65 | ||
| 5 | 11515-99L00 BRACE,RING GEAR
SKU: 11515-99L00 Weight: 0.000000 Brand: Price: $ 40.88 |
BRACE,RING GEAR | 1 | $ 40.88 | ||
| 6 | 09103-06240 09103-06240
SKU: 09103-06240 Weight: Brand: Price: $ 0.00 |
09103-06240 | 2 | $ 0.00 | ||
| 7 | 01421-0620C 01421-0620C
SKU: 01421-0620C Weight: Brand: Price: $ 1.03 |
01421-0620C | 1 | $ 1.03 | ||
| 8 | 11519-99L00 WASHER,RING GEA
SKU: 11519-99L00 Weight: 0.000000 Brand: Price: $ 5.55 |
WASHER,RING GEA | 1 | $ 5.55 | ||
| 9 | 09169-06097 WASHER,RING GEA
SKU: 09169-06097 Weight: 0.000000 Brand: Price: $ 3.92 |
WASHER,RING GEA | 1 | $ 3.92 | ||
| 10 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | ||
| 11 | 61494-99L00 LABEL,OIL & CLE
SKU: 61494-99L00 Weight: 0.000000 Brand: Price: $ 4.44 |
LABEL,OIL & CLE | 1 | $ 4.44 | ||
| 12 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
